Trane CGAD050C - Performance Adjustment Factors; Evaporator Pressure Drop Charts

CG-PRC002A-EN 9
Load loss (Ft. of water)
Load loss (kPa)
Performance
Adjustment Factors

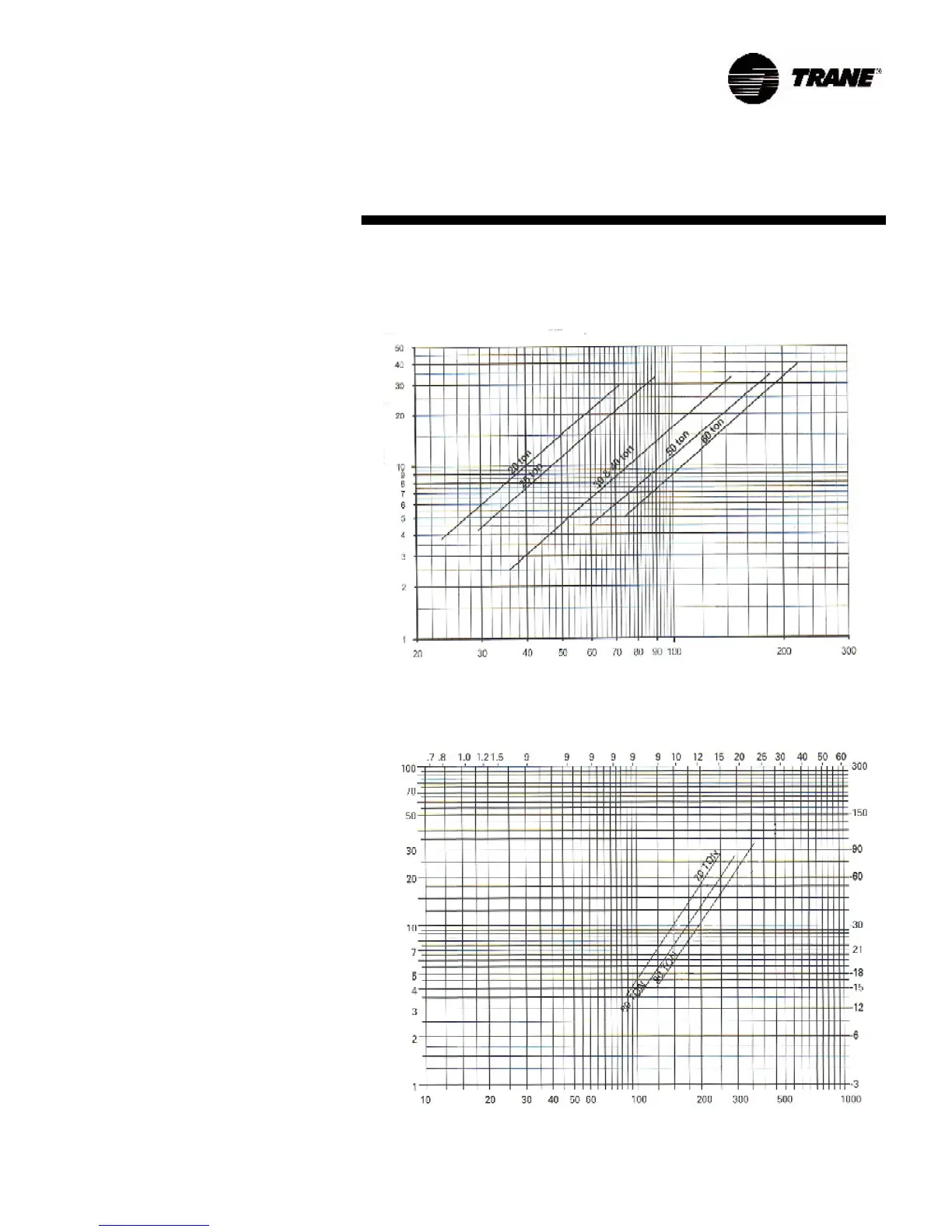

Fig. 02 - Evaporator Pressure Drop - 20 to 60 Tons Units
Fig. 03 - Evaporator Pressure Drop - 70 to 90 Tons Units
Unit Conversion
From: To: Multiplier:
Gallons/min (GPM) L/s 0,06308
Feet of water (Ft Water) Pa 2990
Evaporator Water Flow (GPM)
Evaporator Water Flow (GPM)
Evaporator Water Flow ( L/s )
Load loss (Ft. of water)
