Trane CGAD050C - CGAD 120 C Dimensions

CG-PRC002A-EN 27
Dimensional
Data
CGAD 120C
NOTES:
1 - FIXING POINTS FOR VIBRATION INSULATORS (6 X.11,5-mm DIAM HOLES)
2 - VIBRATION INSULATORS ARE NOT SUPPLIED WITH THE EQUIPMENT.
3 - UNITS NOT SPECIFIED: mm

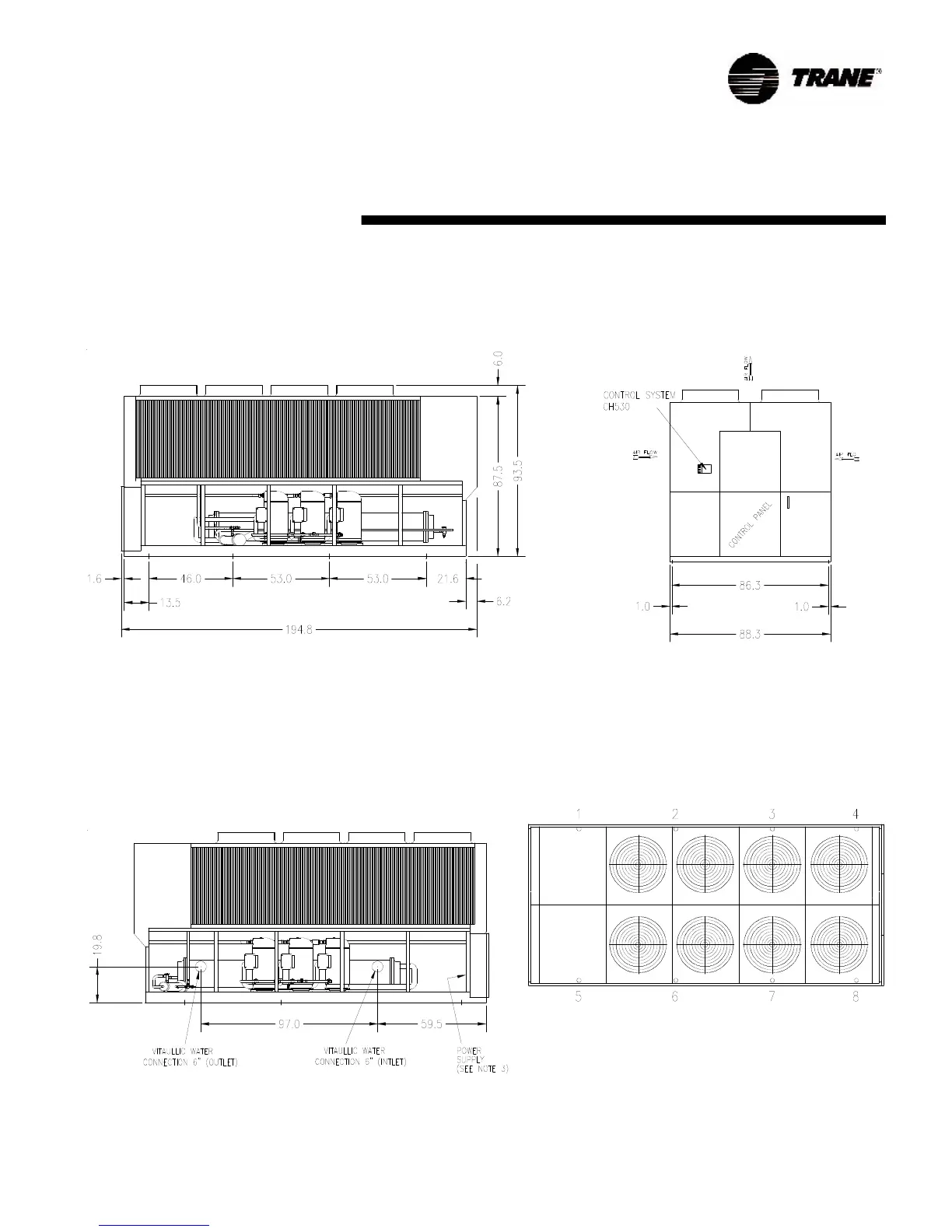

Fig. 21 - Unit Dimensions - CGAD 120C
Fig. 22 - Top View of Fans
