Trane CGWF SE - Page 11

Page 12

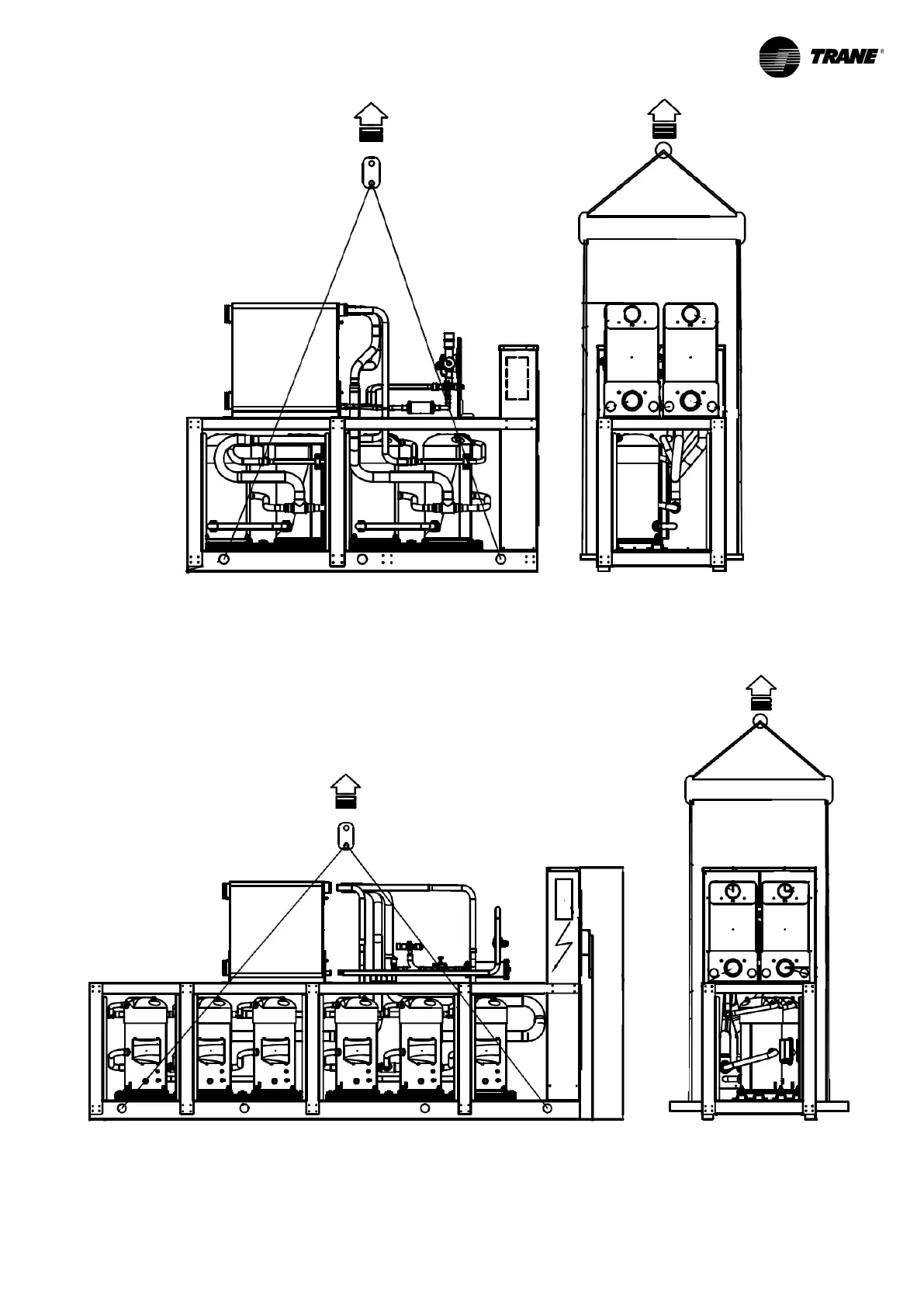

Figure 4 -
Figure 5 -
Correct lifting procedure for platform 3 units (sizes with two refrigerant
circuits - CGWF SE sizes from 115 to 475, CGWF HE sizes from 115 to
500 and CXWF sizes from 130 to 565)
Correct lifting procedure for platform 4 units (sizes with
two refrigerant circuits - CGWF SE sizes from 555 to 700,
CGWF HE sizes from 585 to 700 and CXWF sizes from
670 to 835)
