Table 3. Water piping connection components
Customer Piping Connection
Unit Model Unit Connection Type Victualic
™
Flanged
CVHE and Flanged (Condenser 032-050 Trane provided No Adapter Required
CVHG 150 psig and 1035 kPa non-marine only) Victaulic-to-Flange Adapter
CVHE, CVHF Victaulic (All others) Customer provided Trane provided
and CVHG Victaulic Coupling Victaulic-to-Flange Adapter
Water Piping

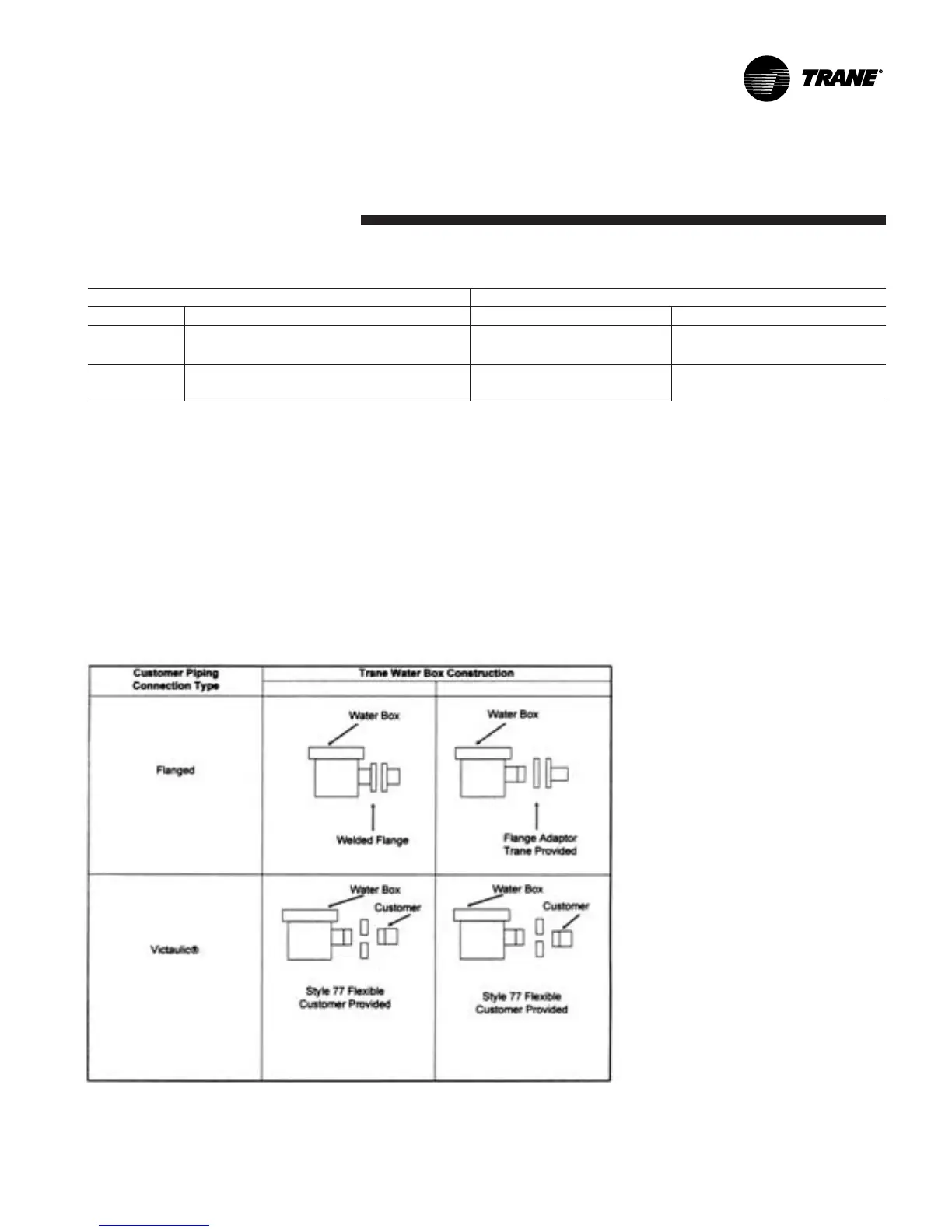

Figure 6. Customer piping alternatives for water connections
Grooved Pipe Coupling
A customer-supplied, standard
flexible grooved pipe coupling
(Victaulic Style 77 or equivalent)
should be used to complete the
Victaulic connection for both 150
psig or 1035 kPa and 300 psig or
2068 kPa water boxes. See Table 3.
When a flexible coupling such as this
is installed at the water box
connections (Figure 6), other flexible
piping connectors (i.e., braided-steel,
elastomeric arch, etc.) are usually not
required to attenuate vibration and/
or prevent stress on the connections.
Note: Flexible coupling gaskets
require proper lubrication before
installation to provide a good seal.
Refer to the coupling manufacturer’s
guidelines for proper lubricant type
and application.
