Installation - Mechanical
Pre-Installation Inspection
To protect against loss due to damage incurred in transit, perform inspection immediately upon receipt of the unit.
● Whether the nameplate is consistent with the order model.
● Whether the documents along with the unit are complete.
● Whether the accessories along with the unit are consistent with the items listed in the packing list.
● When receiving the unit, please carefully check whether damage has been caused during shipping. If so, please record
it on the delivery note and notify the carrier’s terminal within 72 hours, and at the same time notify the local Trane sales
o󰀩ce.
Lifting and Moving Instructions
Ensure that all the lifting equipment used is properly rated for the weight of the unit being lifted. Each of the cables(chains or
slings), hooks and shackles used to lift the unit must be capable of supporting the entire weight of the unit. Lifting cables(chains
or slings) may not be of the same length. Adjust as necessary for even unit lift.
Failure to properly lift unit in a LEVEL position could result in unit dropping and possibly crushing operator/technician which
could result in death or serious injury, and equipment or property-only damage.
Lift Conguration
Inspection before lifting:
1. Check whether the appearance and xing parts of the unit
are intact.
2. Check whether the unit and the packaging base plate are
well xed.
Recommendation:
Remove the package base plate when
lifting to avoid unit falling.
When lifting:
1. Personnel with lifting qualications is required.
2. Thread 2 lifting slings into the hoisting hole at the bottom of
the unit.
● At least 5mm thick paper corner protection between the
rope and the unit panel is required.
● The length of the sling is suitable, and the rope lifting
angle larger than 60°.
`
!
WARNING
Before lifting, special attention should be paid to ensure that the outdoor unit lifts evenly. Special attention should
be paid when weight distribution of the unit is not even, and the center of gravity is inclined on the compressor side.
Pre-lifting should be made to observe whether the sling is tight and whether there’s possibility the unit will tilts when
lifting. Rise slowly and evenly when lifting to prevent the unit from tipping and protect the safety of surrounding
personnel!

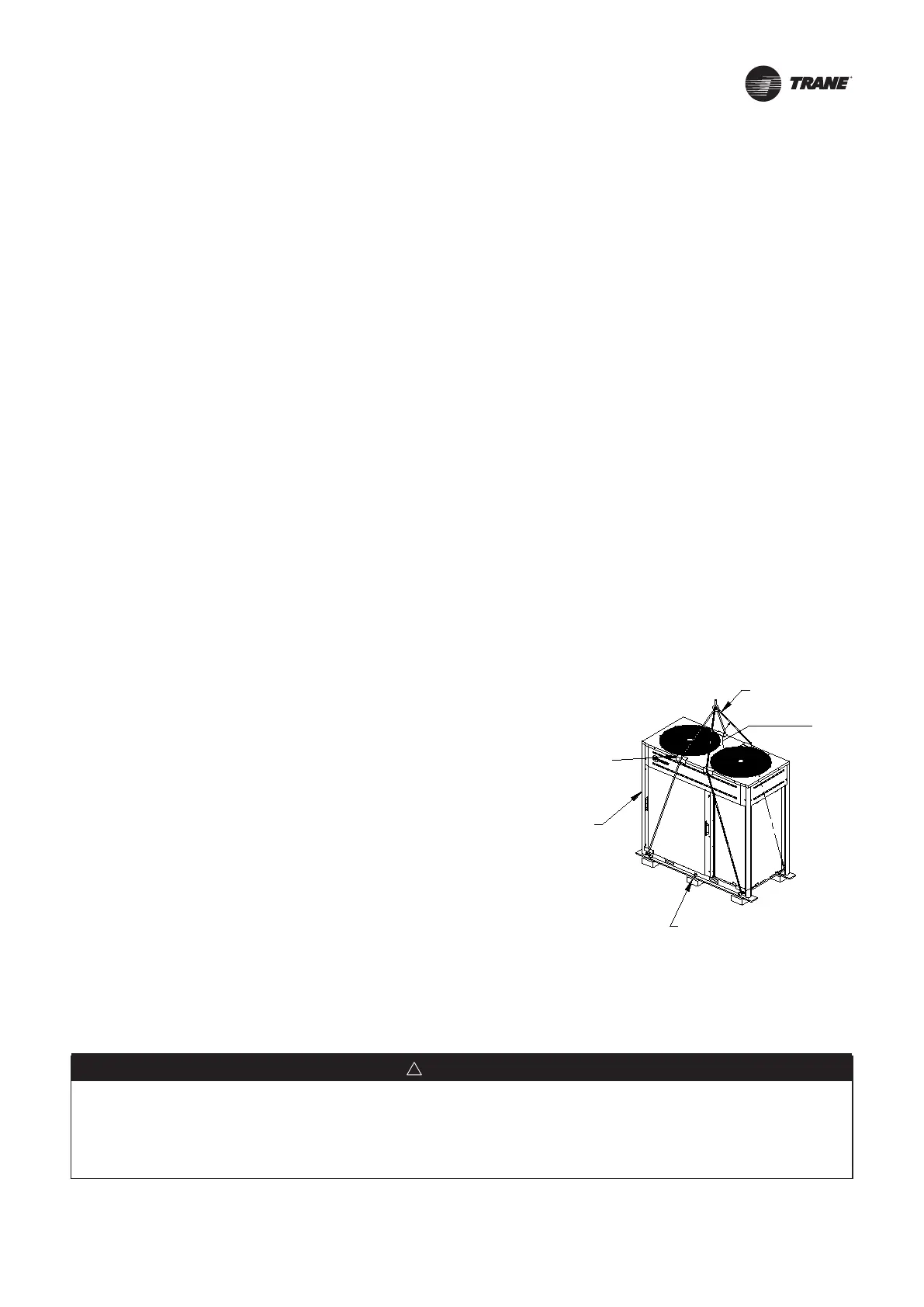

Sling
Lifting Angle
Base Package Panel
Unit
Paper Corner
Protection
