Installation - Mechanical
Mounting Locations
1. The unit can be installed on the roof, on the ground or other places where easy to install and can reliably support the
weight.
2. It should not be installed near any heat sources that may a󰀨ect the normal operation of the unit, and there should be no
obstacles near the air exhaust port.
3. It should not be installed in any locations near corrosive or ammable gases.
4. The operating noise and exhaust air should not have an impact on the surroundings.
5. If the unit is installed in a place where non-professionals can reach, it is needed to set up protection isolation.
6. The unit should be installed in places with su󰀩cient ventilation and maintenance space.
7. The unit must be installed on an even, horizontal plane, and the installation platform should meet the requirement of the
weight of the unit and the dimension.
`
!
WARNING
●
CXAU series products are commercial-used units. They should not be installed close to noise-sensitive areas
such as residential houses/villas/homestays/nursing homes. If they are needed to install in this kind of place,
please do your own sound insulation treatment.
●
The unit should not be installed close to doors and windows. For special requirements, please consult Trane
technical support or after-sales department.
Platform
1. The platform can be steel frame structure, such as channel steel.
2. The platform can be reinforced concrete structure.
3. The platform should be completely horizontal to ensure uniform contact of the unit.
4. The platform should be strong enough to support the weight of the unit.
5. Drainage ditches should be set up around the platform to collect and drain the condensate water generated by the
operation or maintenance and prevent water accumulation around the unit.
Isolators
1. A vibration absorbing isolator should be installed between the platform and the unit, and the thickness of the vibration
absorbing isolator should not be less than 10mm.

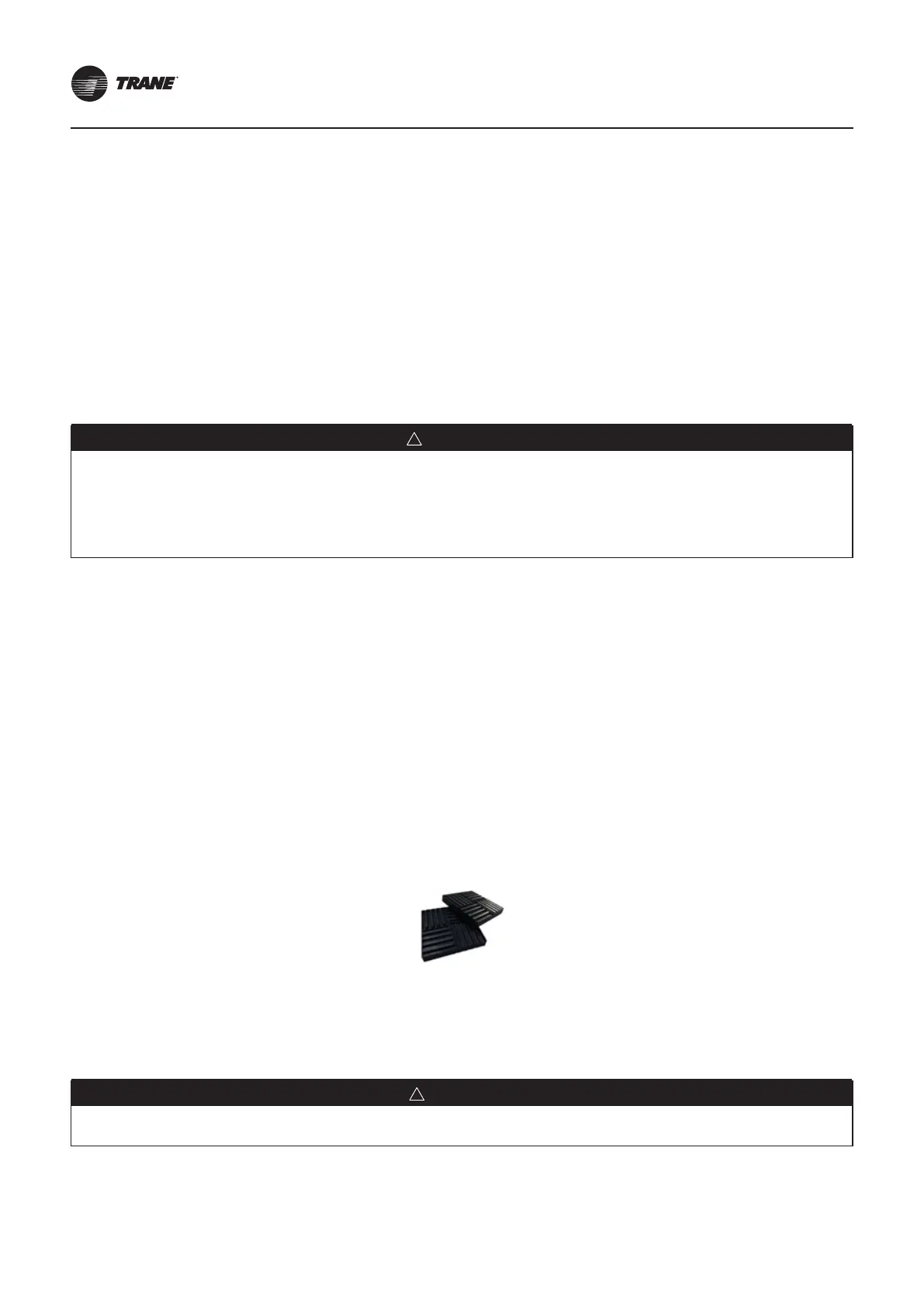

2. The type of vibration absorbing isolator is shown in the gure below or a similar type.
Installation Clearance
Please consider drainage, ventilation, and operation clearance when installation to ensure stable operation and maintenance
and repair of the unit. The minimum installation clearance should be met, otherwise there may be problems such as
performance degrade, noise rising, operation failure and hard to maintenance.
`
!
CAUTION
If the specied installation space requirements can’t be met, consult TRANE engineering team or after-sales.
