Pre-Start

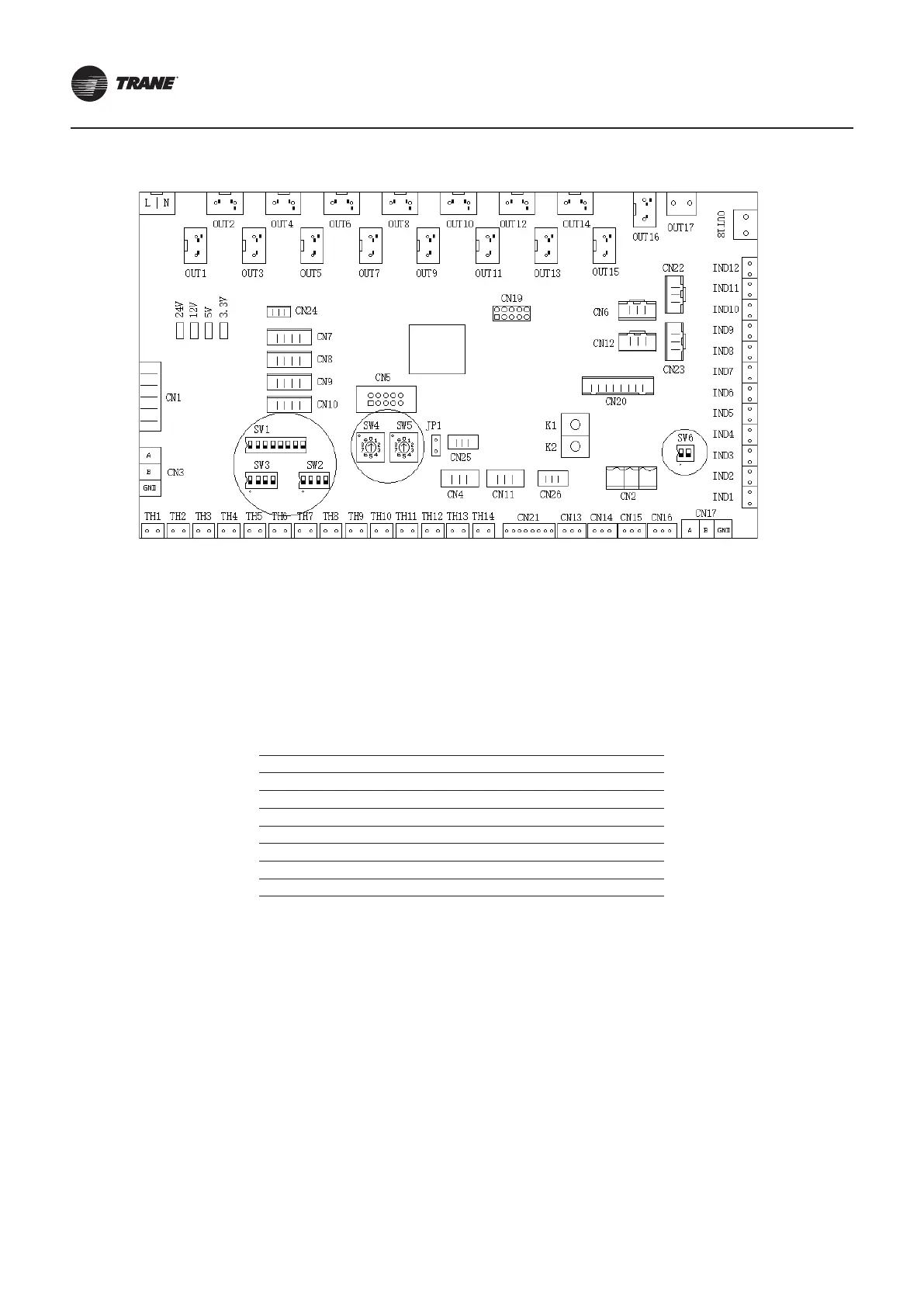

SW1 is reserved
SW2 is number of slave units :0000~1111, binary, corresponding to 0~15;
SW3 is external address :0000~1111, binary, corresponding to 0~15;
SW2 and SW3 are both binary. Weight calculation rules: counting from right to left based on 0, and the weight of the nth bit is
2n;
The correspondence of the 16 numbers is:
0000 - 0 1000 - 8
0001 - 1 1001 - 9
0010 - 2 1010 - 10
0011 - 3 1011 - 11
0100 - 4 1100 - 12
0101 - 5 1101 - 13
0110 - 6 1110 - 14
0111 - 7 1111 - 15
SW4 and SW5 are used in combination for 2 bits, which is the address of the unit in the combination model: 01~16, where the
unit with address 01 is the host, that is, SW4 is 0 and SW5 is 1. 02-16 is used for slave units.
SW6: ON for host unit and OFF for slave units, factory default.
