GETTING AROUND THE KEYBOARD
The keyboard is located behind the thermostat cover. Three frequently used keys are located next to the display
(Increase temperature setting, Decrease temperature setting, and Information key). The thermostat displays
important information such as day, time, schedule period, temperature, filter indicator, system and fan operation.

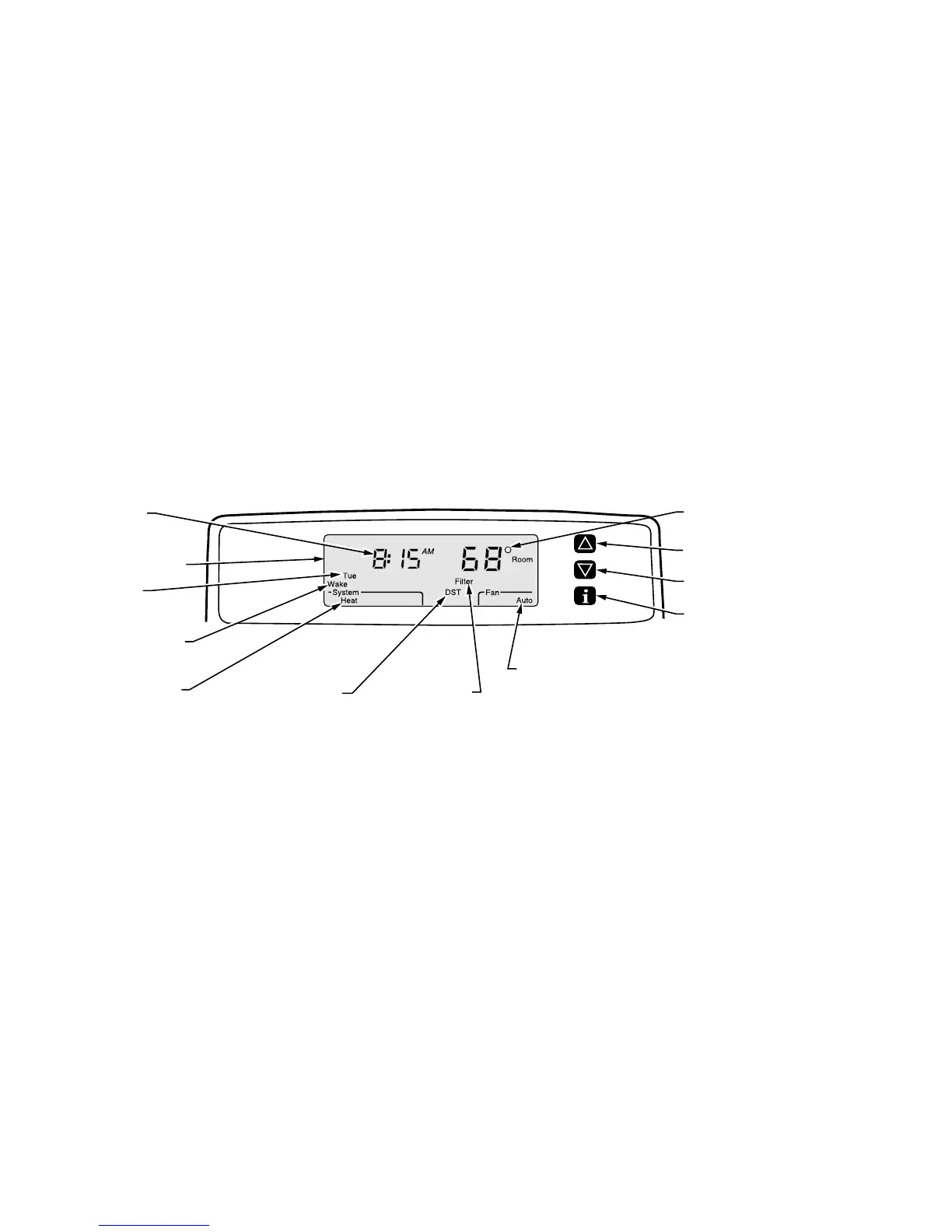

WHAT'S THE ROOM TEMPERATURE?
WHAT TIME IS IT?
WHAT DAY IS IT?
CURRENT PROGRAMMING
PERIOD (EXAMPLE
DISPLAY SHOWS "WAKE")
CURRENT SYSTEM
SETTING (EXAMPLE
DISPLAY SHOWS "HEAT")
CURRENT FAN
SETTING (EXAMPLE
DISPLAY SHOWS "AUTO")
DISPLAY IS BACKLIT
FOR EASY READABILITY
WHEN A KEY IS PRESSED.
DECREASE TEMPERATURE SETTING.
INCREASE TEMPERATURE SETTING.
INFORMATION AT YOUR FINGERTIPS!
DISPLAY THE OUTDOOR
TEMPERATURE (ON SOME MODELS),
CHECK YOUR CURRENT TEMPERATURE
SETTINGS, OR DISPLAY FILTER USE
IN NUMBER OF DAYS.
DAYLIGHT
SAVINGS TIME
INDICATOR
FILTER
EXPIRATION
INDICATOR
