Trane EBC036 - Page 10

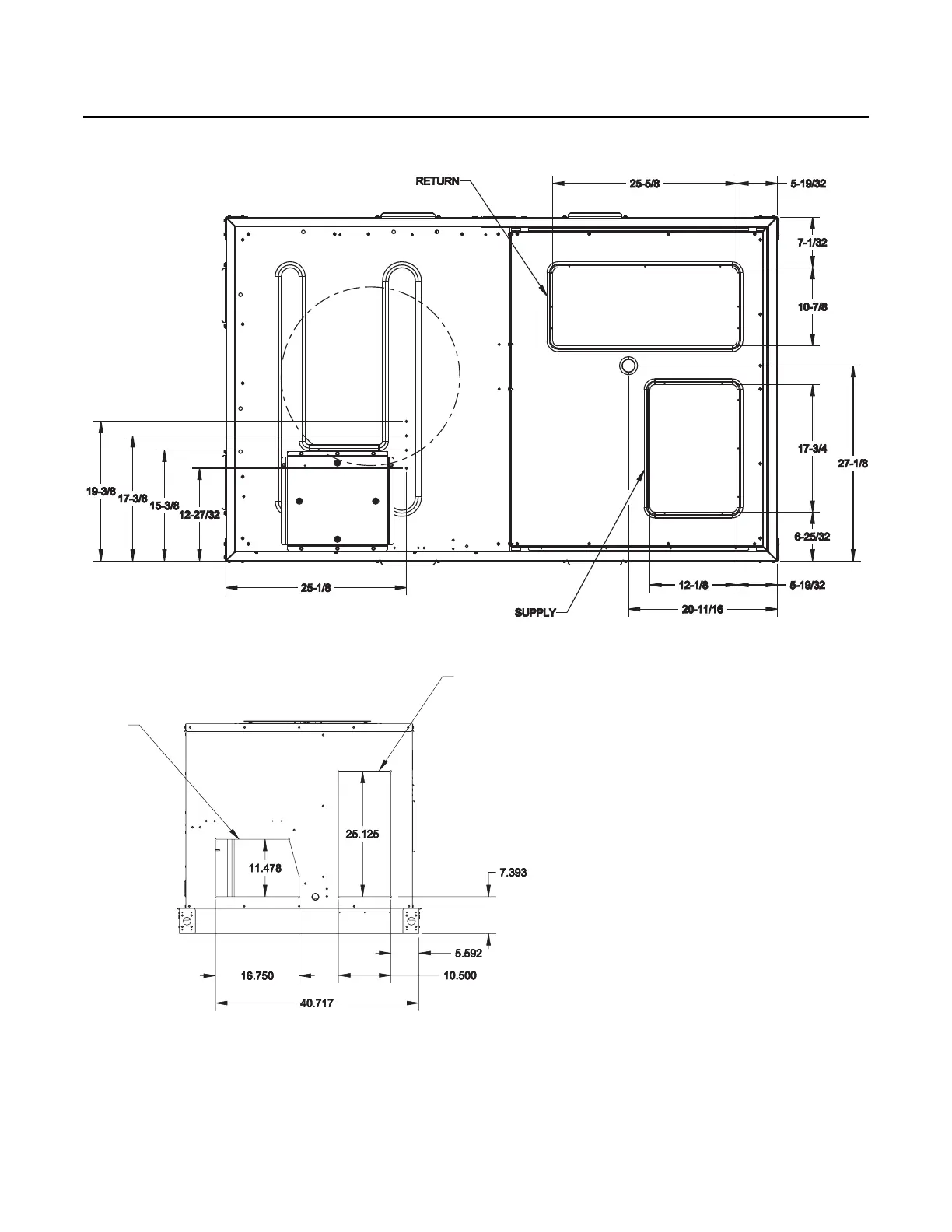

Figure 4. Cooling with optional electrical heat units — bottom view — 3–5 tons
Figure 5. Foundation units — back view (horizontal configuration) — 3–5 tons
Dimensional Data
10 RT-SVX059D-EN
SUPPLY
RETURN
