Installation
64 WSHP-SVX01Q-EN
9. Wire-tie the sensor to the water SUPPLY side of the
piping (ON, or BEFORE) the 2-position valve. See
Figure 74, p. 64.
10. Bundle excess sensor wire, and wire tie the bundle
neatly. See Figure 75, p. 64.
11. Thread the valve’s wire lead through the low voltage
hole of the heat pump. See Figure 76, p. 64.
12. Wire the valve to the terminal strip according to the
unit wire diagram located on the service control panel.
RED = 1TB1-14
BLK = 1TB1-18
WHT = 1TB1-15
See Figure 77, p. 64.
13. Bundle excess valve wire, and wire tie the bundle
neatly. See Figure 78, p. 64.
14. Install control side service panel.
15. Install the hanging isolation grommets (see Figure 79,
p. 64) into the hanging bracketsThe unit isolators were
located in the return-air section of the unit. See Step 2.
Isolators for the economizing package are located with
the economizer.
Note: GEH .5-5 ton and EXH .5-6 ton.

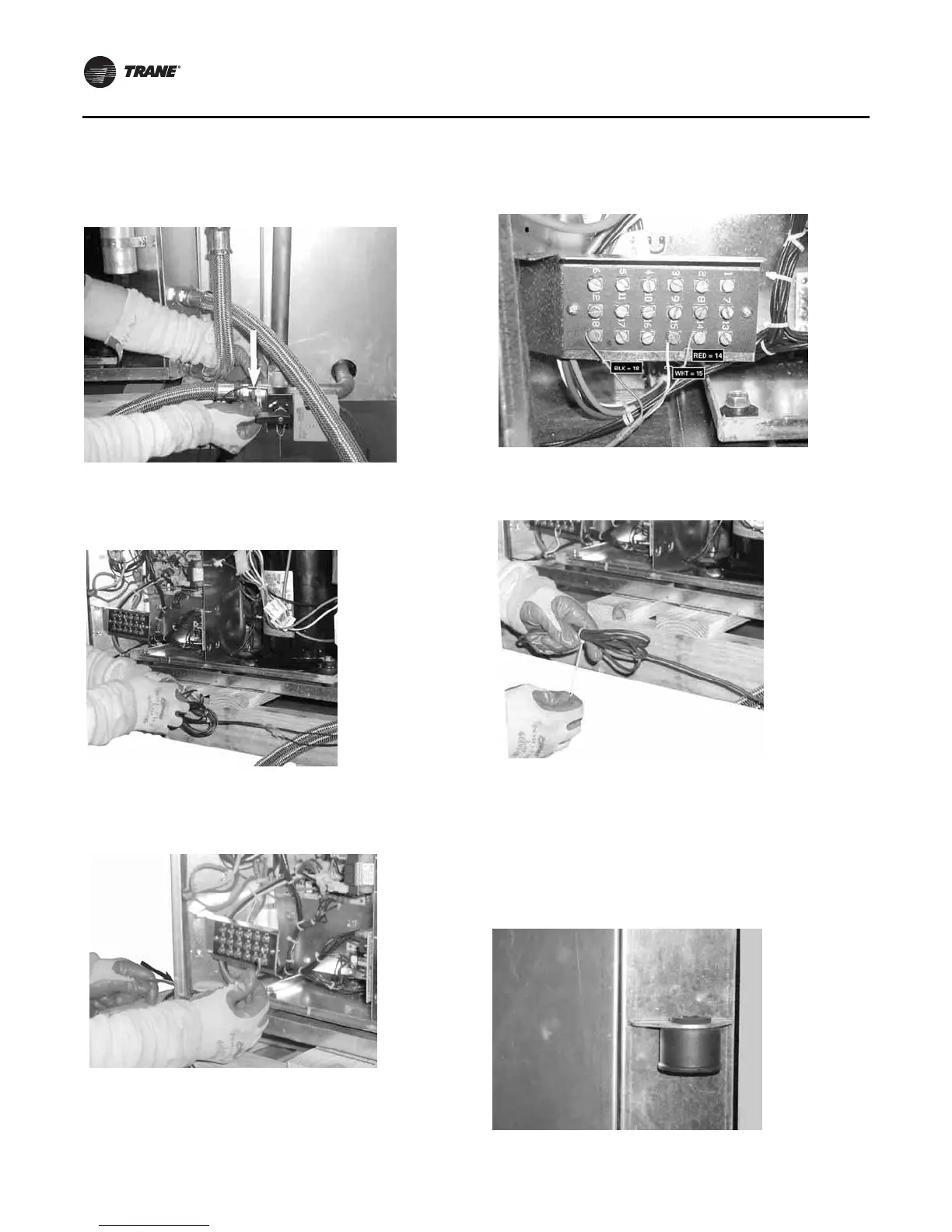

Figure 74. Step 9
Figure 75. Step 10
Figure 76. Step 11
Figure 77. Step 12
Figure 78. Step 13
Figure 79. Step 15
