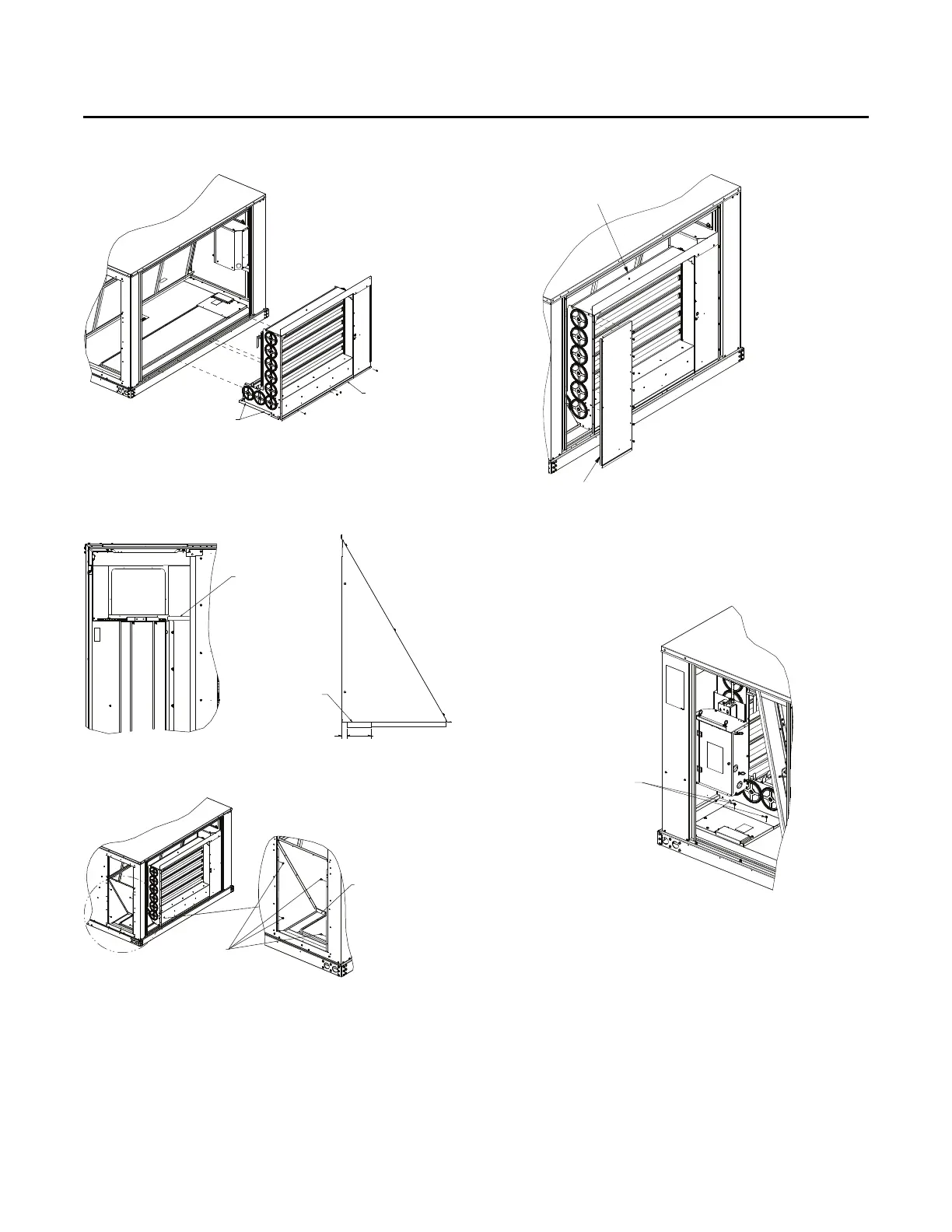

Figure 14. Outdoor air damper assembly installation
Outdoor Air Damper
Assembly
Secure To Return
Duct Flange
Installation - FIAECON103*
12 ACC-SVN264B-EN
6. Refer to the barometric relief accessory literature
(ACC-SVN156*-EN) and install the barometric block-off
panels and gasket.
Figure 15. Gasket locations for barometric relief
1.0 in. x 1.0 in.
Gasket Placement
0.88
4.3
1.0 in. x 1.0 in.
Gasket
Figure 16. Installation of barometric relief with LLE
Barometric
Relief Screws
1.0 in. x 1.0 in. Gasket
7. Install the outside air block-off panel on the left side of the
outdoor air damper assembly as shown in Figure 17.
Figure 17. Outside air block-off panel installation
Outside Air Block-off
Outdoor Air Damper Assembly
8. Secure outdoor air damper assembly to the return air front
block-off that was previously installed in Step 4.
Figure 18. Front damper assembly attachment to block-
off
Secure Outdoor
ir Damper Assembly
to Front Block-off Panel
with screws
9. Route the controls harness from the actuator to the fresh
air options module located in the return enclosure using the
factory installed wire ties. Connect harness P11 to fresh air
options module J11. Confirm the harness has a secure
connection.
Note: W
ire ties have a releasable feature to allow them to be
opened and closed.
