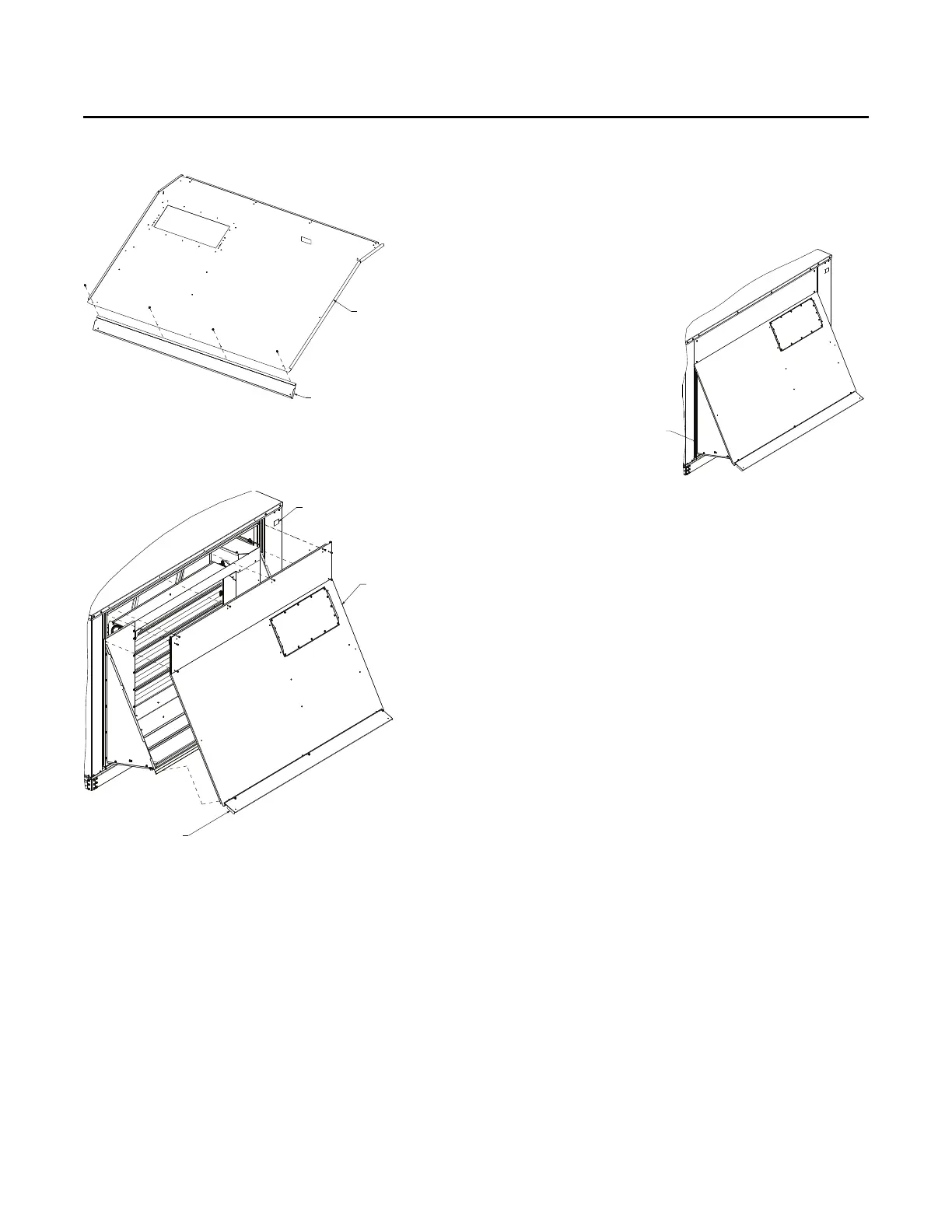

Figure 31. Diverter panel installation
Diverter Panel
Unit End Panel
Installation - FIAECON203*
18 ACC-SVN264B-EN
15. With the back panel pre-bent, install the back panel over
top of the economizer assembly and fasten with screws.
Figure 32. Unit end panel reinstallation
Unit End Panel
Diverter Panel
Identification Label
16. Install the access panel on the front of the unit.
17. Using field supplied silicone sealan
t, seal all seams, cracks
and gaps around the back panel and vertical edge of the
hood panels.
Figure 33. Sealant application location (both sides)
Apply Silicone or Weather Resistant
Sealant (Field Supplied) between
both these edges on the Left Hood
Panel and the Right Hood Panel
To Next Page
