10
FWD-SVX01D-E4
Installation
Duct connections
FWD units can be fitted directly with
rectangular discharge and intake
ducts.
Warning.The pressure loss caused
by the duct network and
accessories must not exceed the
unit’s available static pressure (see
selection chart).
The air intake can be located at the
back of the unit
➀ or underneath it ➁.
DIMENSIONS OF DUCT CONNECTIONS
(INTAKE AND DISCHARGE)
Sizes 08 12 20 30 45
L
ength 748 948 1148 1148 1148
Width 198 248 298 598 598
Filtering: vital to ensure the unit runs
smoothly.
No filters are supplied with the unit,
but they can be ordered as
accessories:
- Filter box with EU2 filters to fix to
the unit’s intake.
(behind or underneath).
➁
➀

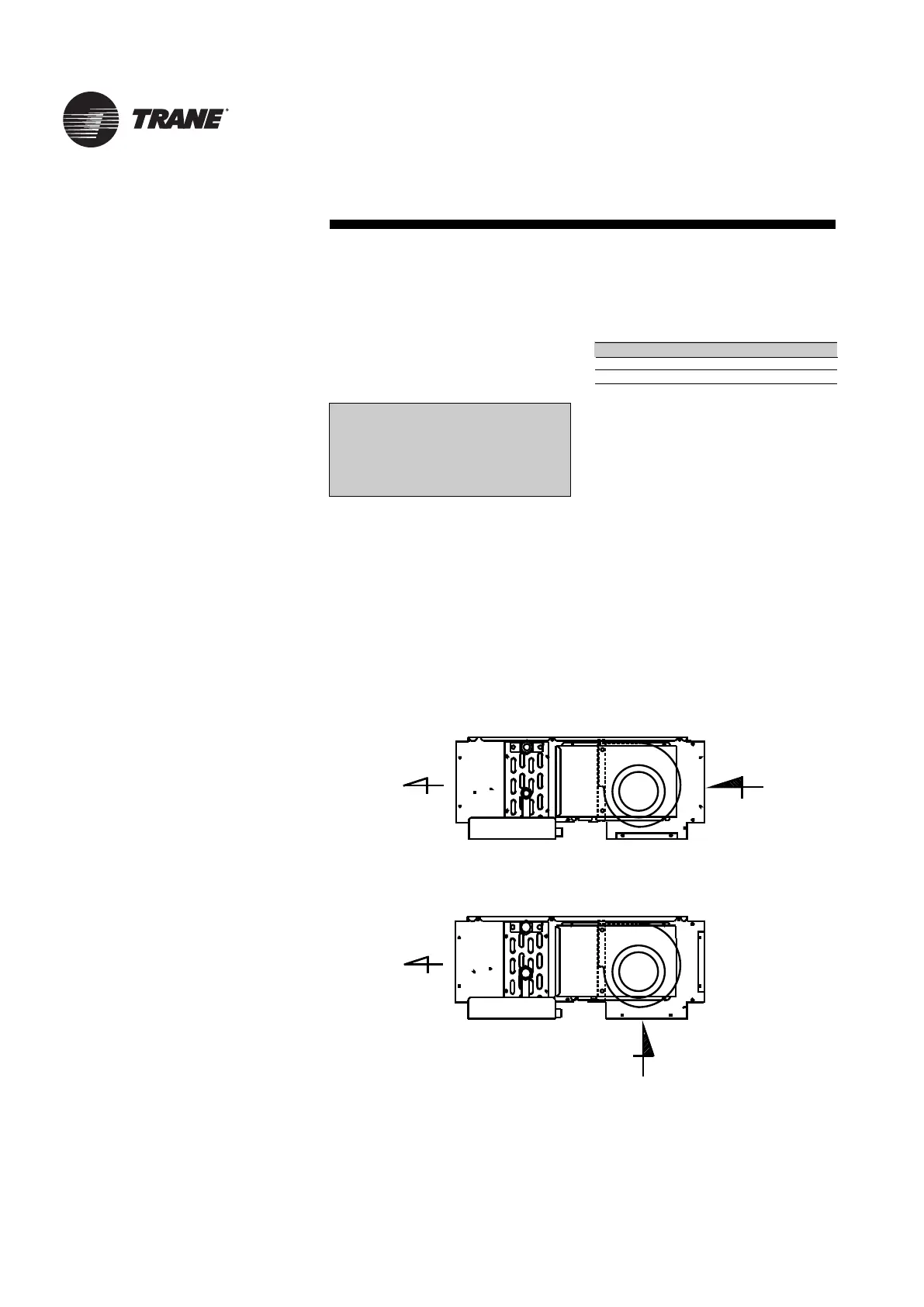

Figure 6 : Connection of ducts
