Filter Replacement
(standard height configuration)
Filter replacement is done at the front
return-air opening of the console unit.
No tools are required for the replace-
ment. The maintenence process is
done via a 3-STEP process (See
Figure 2 for filter replacement):
STEP 1: Through the return-air
opening, slide filter to
the back of the con-
sole unit.
STEP 2: Allow the front edge of
the filter to drop to floor
level.
STEP 3: Pull the filter out of the
front opening.
REVERSE the cycle to install a
new filter.
Filter Replacement
(low height configuration)
Filter replacement is done at the front
return-air opening of the console unit.
A slotted screw driver is needed for
the replacement. The maintenence
process is done via a 2-STEP pro-
cess (See Figure 3 for filter re-
placement):
STEP 1: Insert screw-driver and
depress grill tab (2-per
grille). Rotate grille
down, and lift grille up-
ward to remove grille.
STEP 2: Remove the filter
through the grille hole
in the cabinet front
panel.
REVERSE the cycle to install a
new filter.
Maintenance

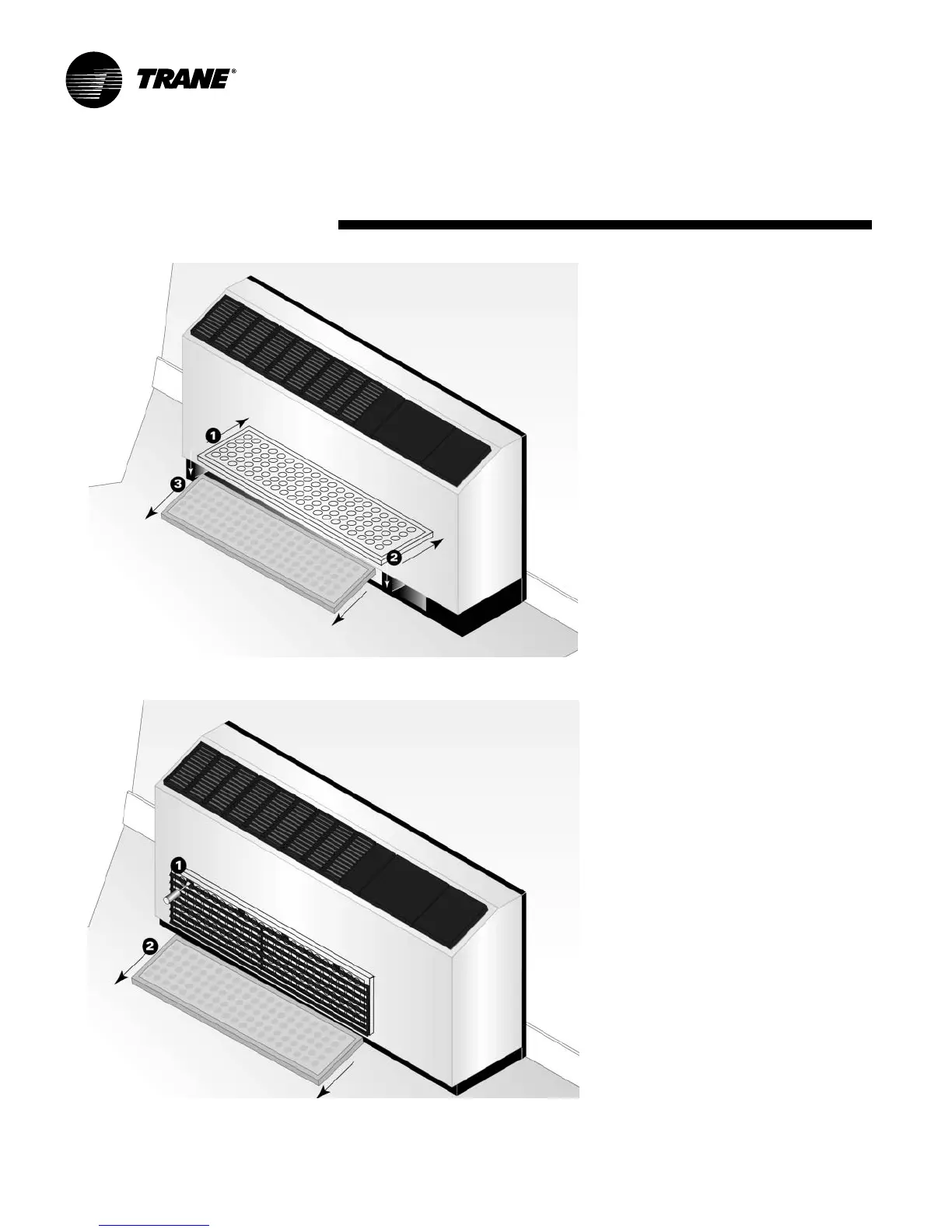

Figure 2: Filter replacement for unit with subbase
Figure 3: Filter replacement for low height configuration
