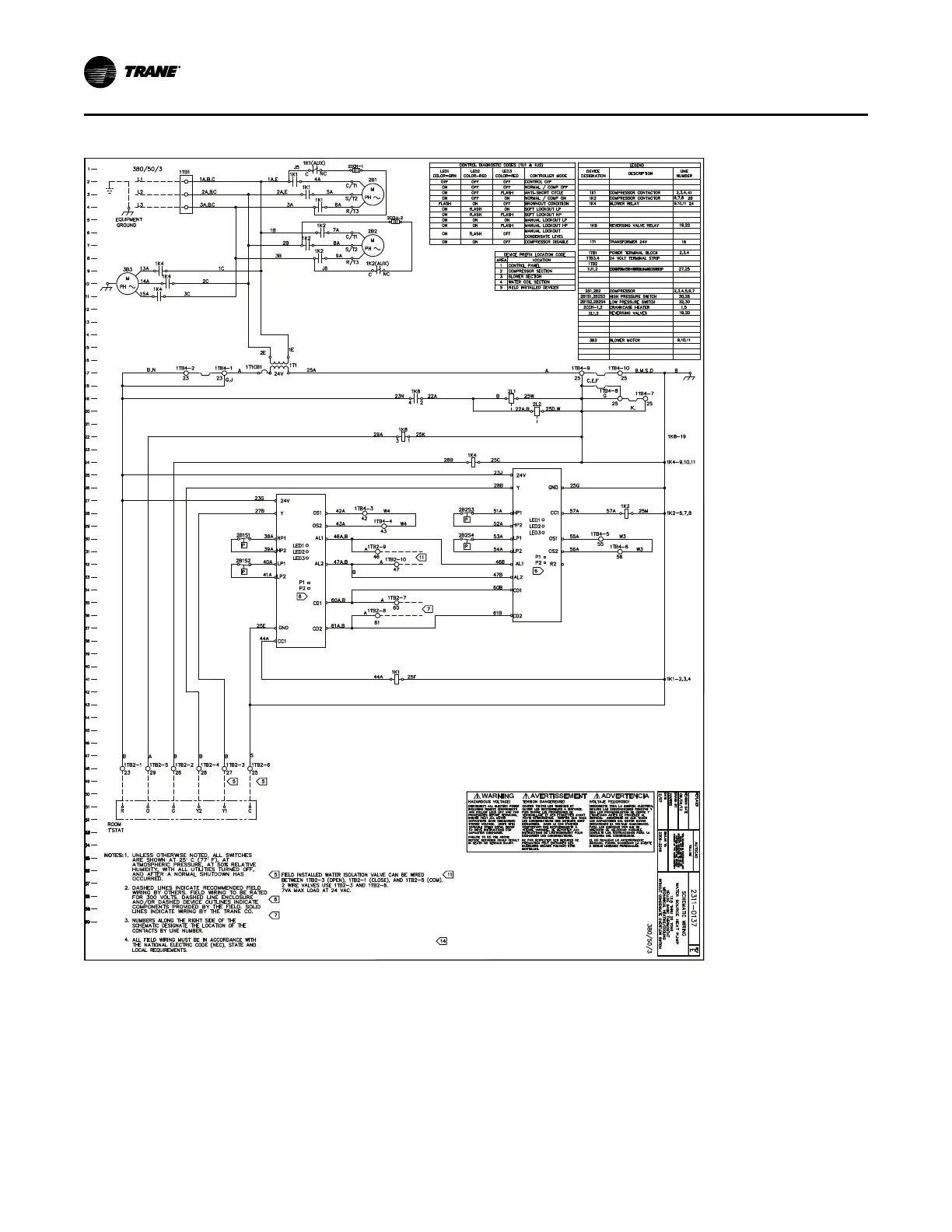

1U1
1U2
CONNECTION FOR 24VAC CLASS 2 COMPRESSOR DISABLE
VERIFY TEST JUMPER HAS BEEN R EMOVED TO PREVENT
INPUT. TERMINAL 1TB2-7 AND 1TB2-8
CONTROL TIMING ERRORS.
CONTACTS RATED FOR CLASS 2 24V. TER MINAL 1TB2-9 AND 10.
ISOLATED GENERAL ALARM CONTACTS. CONTACTS CLOSE
WHEN CONTROL 1U1 AND 1U2 GOES INTO MANUAL LOCKOUT MODE.
CONNECT TERMINAL 11 TO 1TB2-1 &2 AND TERMINAL 10 TO 1TB2-3&4
IF USING ZONE SENSOR X13790886010.
