Trane GEVE - Weights; Weight Distribution for Hanging the GEH; Model

WSHP-SVX01AA-EN
43

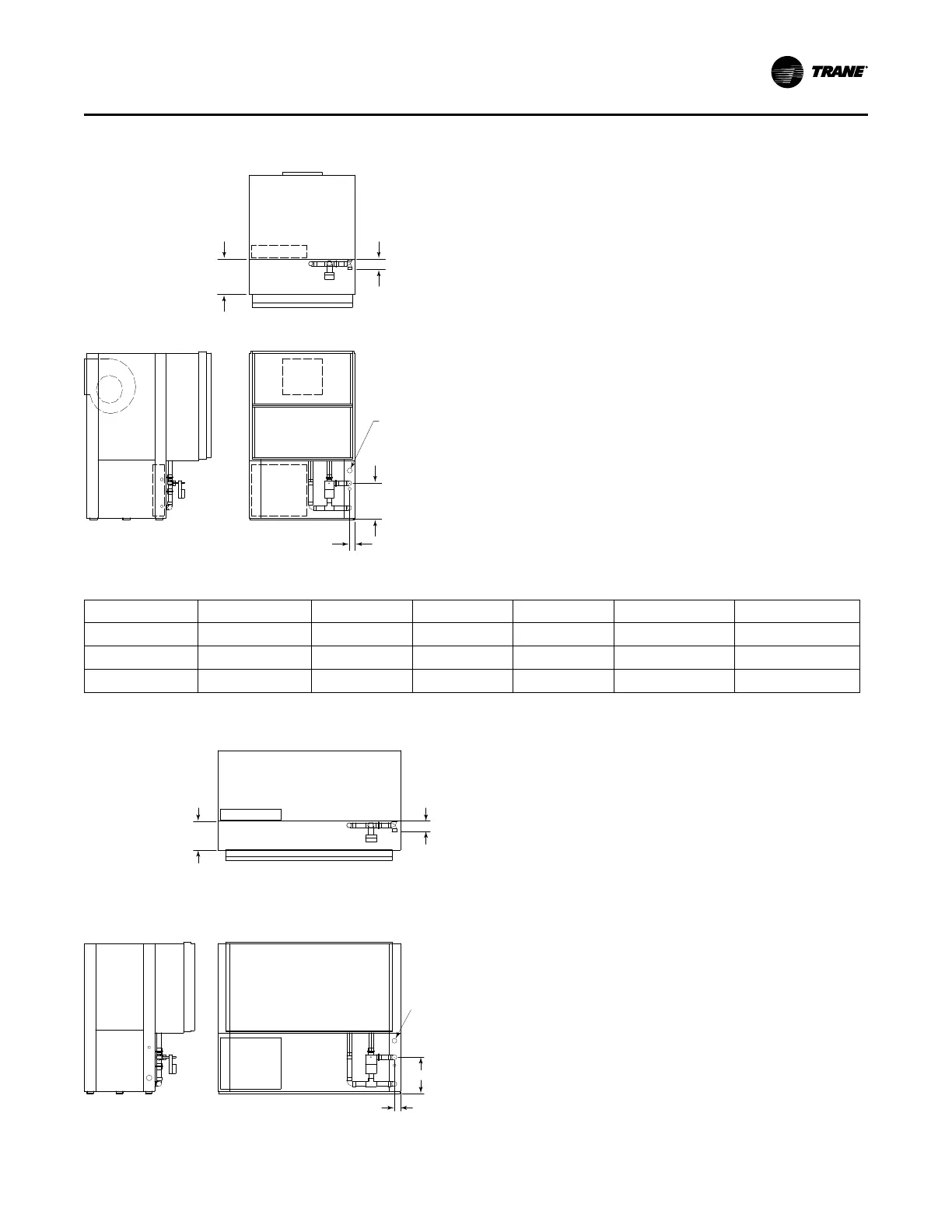

Figure 41. GEVE 6 to 10 tons (60 Hz), 6 and 7.5 tons
(50 Hz) - waterside economizer
A = TO FIELD
RETURN PIPING
13 1/4"
(337)
2 1/4"
(57)
13"
(330)
C
Table 31. Dimensional data GEVE 6 to 10 tons (60 Hz), 6 and 7.5 tons (50 Hz) - waterside economizer
Unit (60 Hz) Unit (50 Hz)
A B C
Hanging Weight Shipping Weight
72 —
1-1/4 1-3/8
4 148 lbs 178 lbs
90 72
1-1/4 1-1/4
4 168 lbs 198 lbs
120 90
1-1/2 1-5/8 4-3/8
207 lbs 237 lbs
Figure 42. GEVE 12.5 to 25 tons - waterside
economizer
TOP VIEW
FRONT VIEW
SIDE VIEW
A - TO FIELD
RETURN
PIPING
13”
(330)
D
C
2 3/4”
(70)
UUnniitt DDiimmeennssiioonnss
