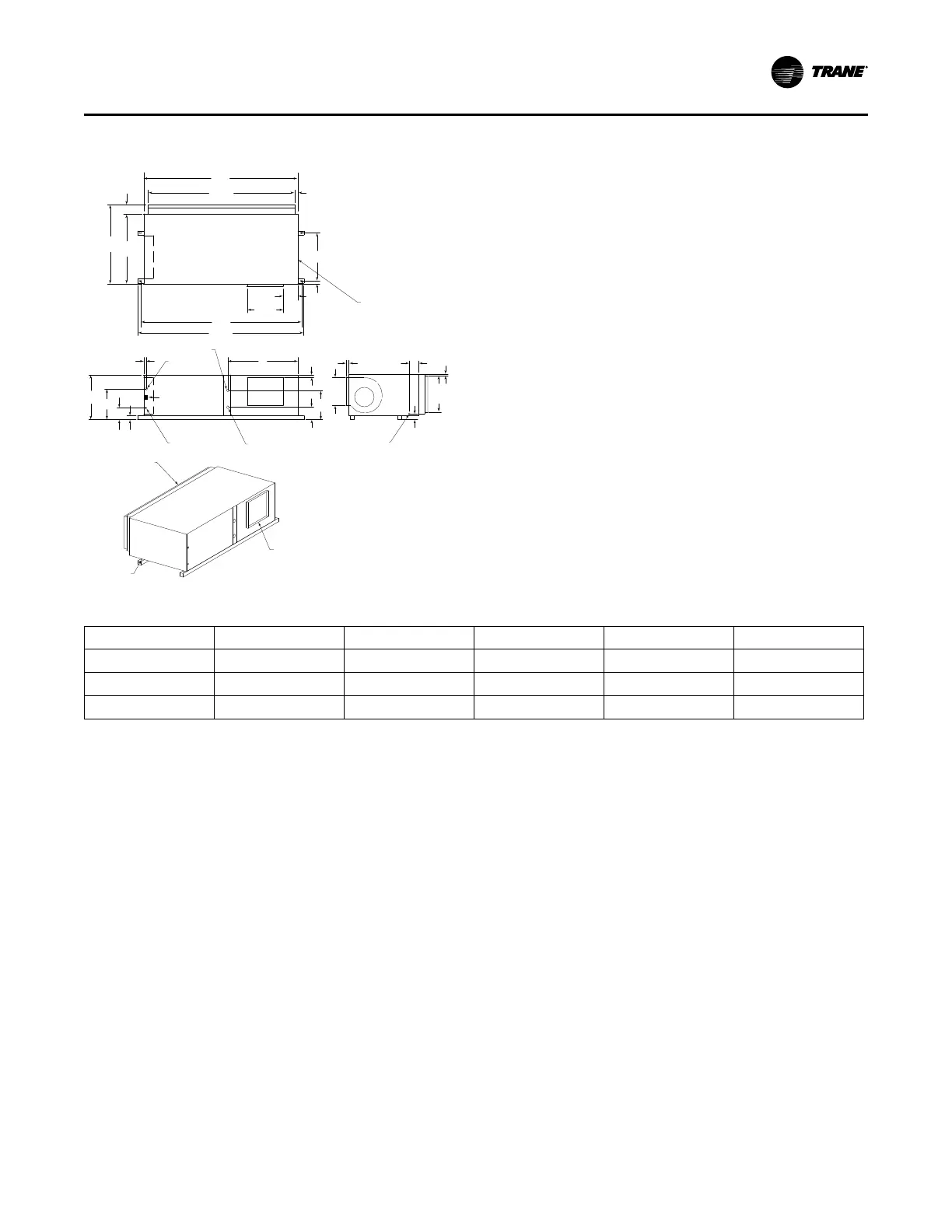

Figure 16. Left return/right supply GEHE 6 to 10 tons
(60 Hz); GEHE 6 to 7.5 tons (50 Hz)
23 1/4"
16 1/2”
1 1/2”
W.O. “D” NPTI
24 VOLT
1 1/8” DIA.
HIGH VOLTAGE
7/8” DIA.
W.I. “D” NPTI
RETURN AIR
OPENING
LEFT SIDE
WCI mounting location
6 1/2”
2 1/4”
1” DIA.
MOUNTING HOLE
4X’S
SUPPLY OPENING
1” DUCT FLANGE
DRAIN CONNECTION
1/2” SCHEDULE 40 PVC
BACK SIDE
3 1/8”
14 1/2”
1”
4 7/8”
18 3/4”
5/8”
1 1/4”
85”
81”
A
C
B
BLOWER ACCESS
PANEL
TOP VIEW
7 5/8”
1 1/4”
24 3/4”
1 3/4”
74 1/2”
79”
4 5/8”
40 5/8”
36”
18 3/8”
Table 14. Dimensional data left return/right supply - GEHE 6 to 10 tons (60 Hz); GEHE 6 to 7.5 tons (50 Hz)
GEH (60 Hz) GEH (50 Hz)
A B C D
72 —
36-1/8 in.
17 in. 8 in.
1-1/4 in.
90 72
36-1/8 in. 13-3/4 in. 7-3/4 in. 1-1/4 in.
120 90
36-1/8 in.
13 in.
7-1/4 in. 1-1/2 in.
UUnniitt DDiimmeennssiioonnss
