Trane GEVE - Page 30

30
WSHP-SVX01AA-EN

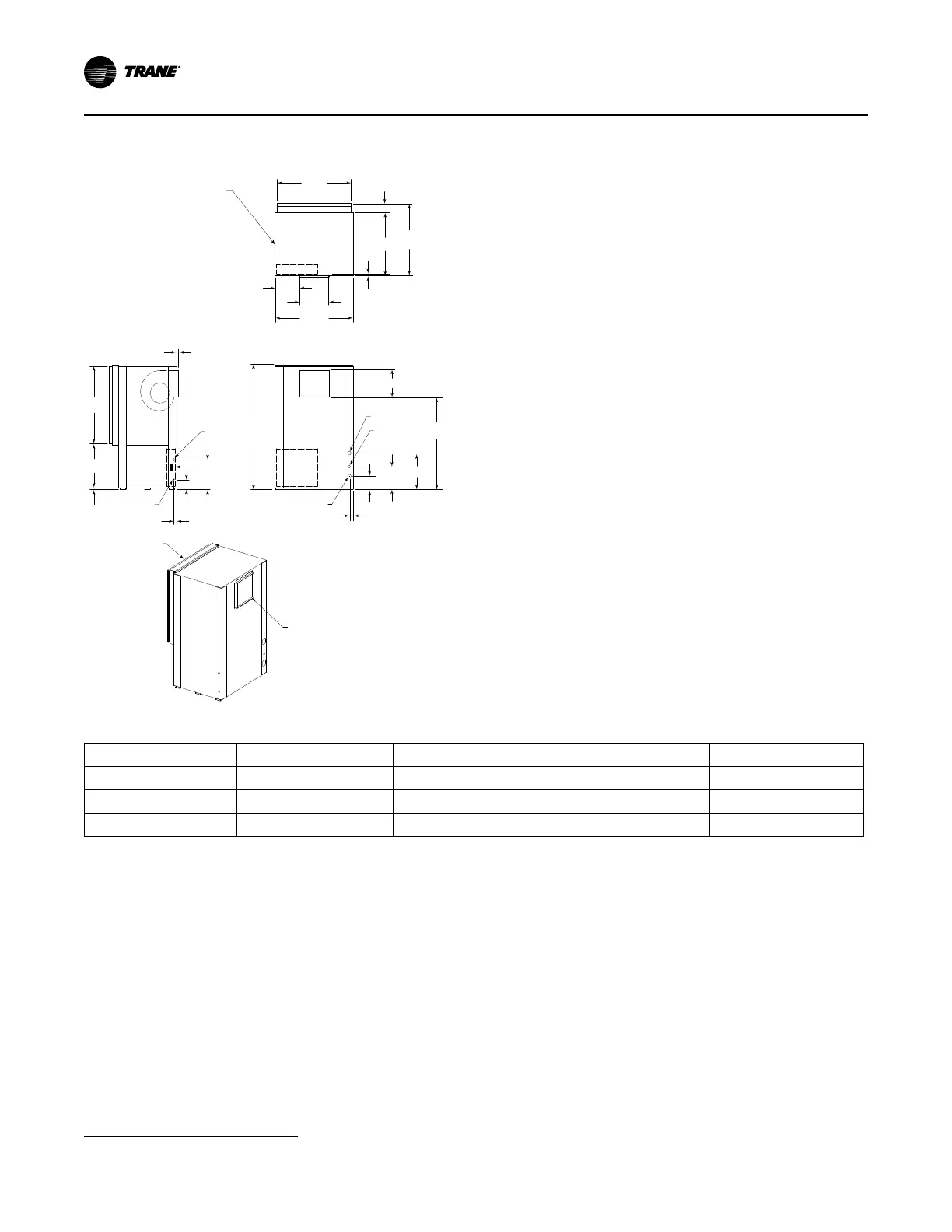

Figure 23. Back return/front supply
3
GEVE 6 to 10
tons (60 Hz); 6 and 7.5 tons (50 Hz)
1"
39 5/8"
ACCESS PANEL FOR
SHEAVES AND BELTS
13 1/8"
15 3/4”
42"
4 7/8"
1 1/8"
36 1/4"
31 3/8"
62 5/8"
46 1/2"
B
W.O. "C" NPTI
DRAIN 3/4" NPTI
A
11 1/2"
1 7/8"
W.I. "C" NPTI
HIGH VOLTAGE
7/8" DIA.
1 5/8"
5"
15"
38 7/8"
22 3/8"
3/4"
RETURN AIR
OPENING
24 VOLT
1 1/8"
13 1/2"
WCI mounting location
SUPPLY OPENING
1" DUCT FLANGE
Table 18. Dimensional data back return/front supply GEVE 6 to 10 tons (60 Hz); 6 and 7.5 tons (50 Hz)
Unit (60 Hz) Unit (50 Hz)
A B C
6.0 tons —
6-5/8 in. 18-3/8 in. 1-1/4 in.
7.5 tons 6.0 tons
6-5/8 in. 18-3/8 in. 1-1/4 in.
10.0 tons 7.5 tons
6-1/2 in. 18-1/2 in. 1-1/2 in.
UUnniitt DDiimmeennssiioonnss
3.
NEC requires that the GEV072-300 front return must be a non-ducted return.
