Trane GEVE - Page 40

40
WSHP-SVX01AA-EN

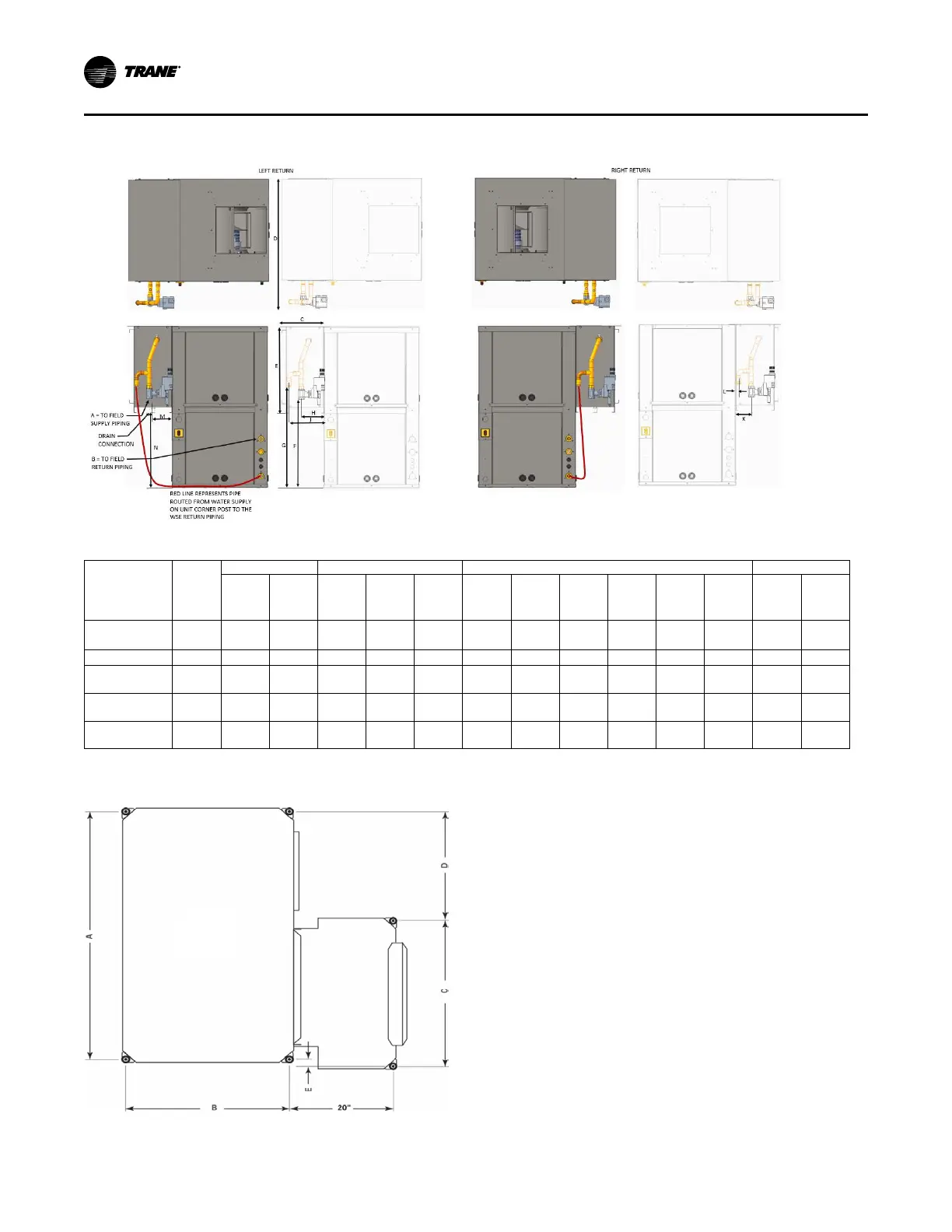

Figure 35. Waterside economizer (GEVG)
Table 26. Dimensional data waterside economizer (GEVG)
Unit
Cabi-
net
Pipe Size
WSE Size
Piping Location
Drain
A
NPTI
B
NPTI
C
Width
D
Depth
E
Height
F
Height
G
Height
H
Width
J
Width
K
Width
L
Width
M
Width
N
Height
GEVG006-012 A
1/2 1/2
8.5 25.0 16.25 15.75 18.75 5.0 7.5 3.5 0.75 4.25 13.75
GEVG015-018 B
1/2 1/2
8.5
27.5
18.25 17.75 20.75 5.0 7.88 3.5 0.63 4.25 15.75
GEVG024-030 C
3/4 3/4
8.5
29.0
19.25 19.75 22.75 5.0 7.88 3.5 0.63 4.25 16.75
GEVG036-042 D
3/4 3/4
8.5
32.0
21.75 21.75 24.75 5.0 7.88 3.5 0.63 4.25 15.75
GEVG048-060 E 1 1 8.5 38.5 22.75 22.75 25.75 5.0 8 3.5 0.5 4.25 19.75
Figure 36. Hanging unit waterside economizer
(GEHE)
TOP
VIEW
UUnniitt DDiimmeennssiioonnss
