ELECTRICAL
CONNECTIONS
All
electrical
connections
must
conform
to:
ANSI/NFPA
No.
70-1993
(or
latest
edition)
National
Electrical
Code
and
applicable
local
codes.
In
Canada,
to
the
Canadian
Electrical
Code,
Part
I
CSA
Standard
C22.1.
The
rooftop
packaged
unit
is
wired
at
the
factory
and
ready
to
be
connected.
Actual
unit
wiring
will
differ
according
to
the
options
chosen.
Each
furnace
is
shipped
with
its
own
wiring
diagram;
refer
to
this
wiring
diagram
for
all
electrical
connections
to
the
unit.
All
electrical
connections,
line
voltage
and
thermo-
stat,
are
made
in
the
Electrical
Cabinet
(See
Figure
6).
Line
voltage
connections
are
made
at
the
High
Voltage
Terminal
Block.
Thermostat
connections
are
made
at
the
Main
Connection
Board
(See
figure
7).
CAUTION
:
Do
not
use
any
tools
(i
.
e
.
screwdriver
,
pliers
,
etc
.
)
across
terminals
to
check
for
power
.
Use
of
a
voltmeter
is
recommended
.
Outdoor
line
voltage
conduits
leading
into
the
unit
should
be
installed
to
prevent
rain
from
wetting
any
high
voltage
wire.
Locate
the
thermostat
in
accor-
dance
the
instructions
supplied
with
the
thermostat.
All
field
wiring
must
have
a
minimum
temperature
rating of
85°
C
(185°
F).
Thermostat
wiring
shall
be
a
minimum
of
18
gauge
wire
size.
See
the
following
charts
for
line
voltage
wire
sizes.

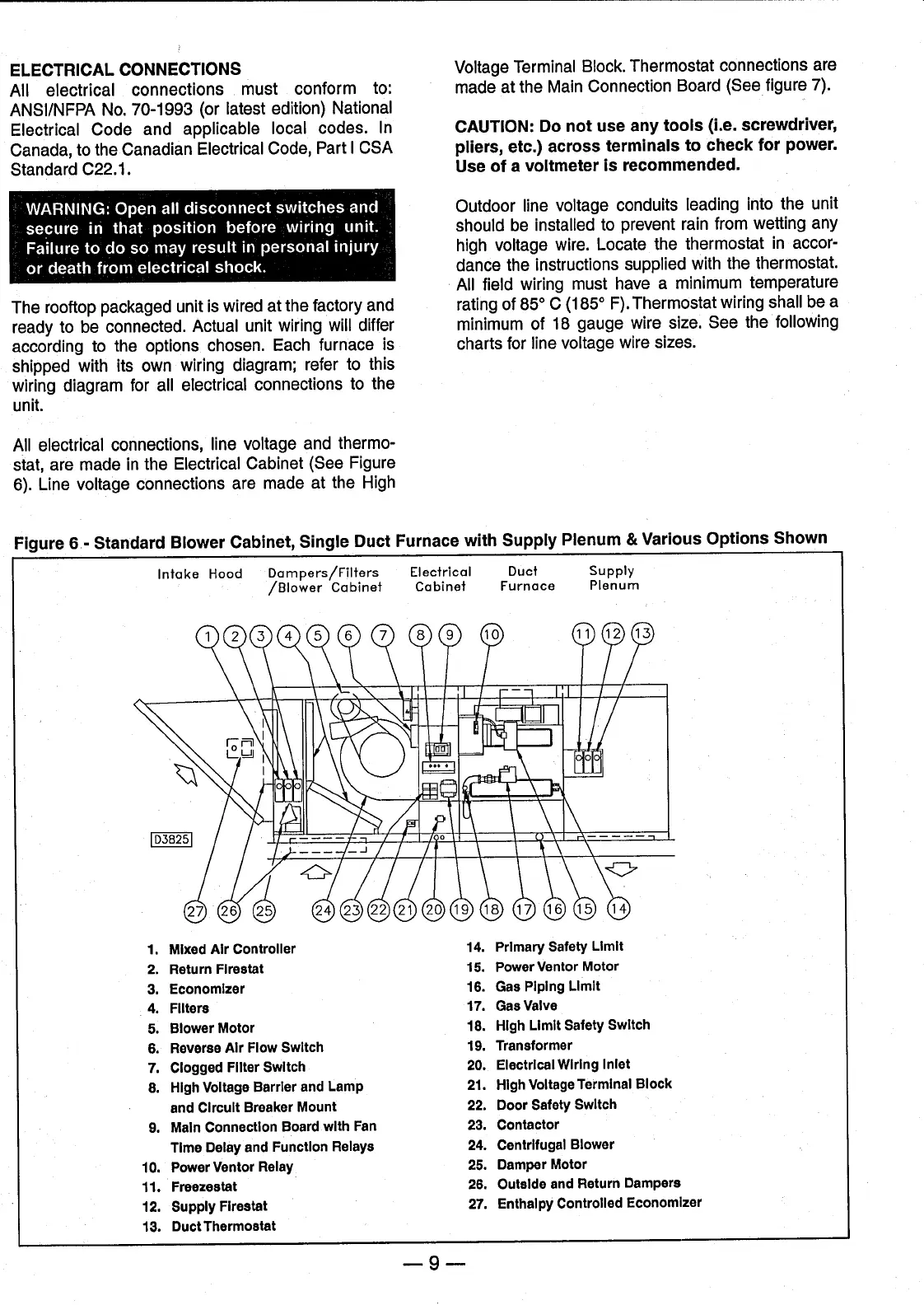

Figure
6
.
-
Standard
Blower
Cabinet
,
Single
Duct
Furnace
with
Supply
Plenum
&
Various
Options
Shown
1
.
Mixed
Air
Controll
e
r
2
.
Return
Firestat
3
.
Econom
i
zer
4
.
Filters
5.
Bl
o
w
er
M
otor
6
.
R
e
verse
Air
Flow
Sw
i
tch
7
.
Clog
g
ed
F
ilter
S
w
itch
8
.
Hi
gh
V
oltag
e
B
arrier
and
L
am
p
and
C
i
rcuit
Breaker
Mount
9
.
Main
Connect
i
on
Board
with
Fan
Time
Delay
and
Function
Relays
10
.
Powe
r
V
e
nt
o
r
R
ela
y
11
.
Freezestat
12
.
Supply
Fir
es
t
a
t
13
.
Duct
T
h
e
r
m
o
s
t
a
t
14.
Primary
Safety
Limit
15.
Power
Ventor
Motor
16.
Gas
Piping
Limit
17.
Gas
Valve
18.
High
Limit
Safety
Switch
19.
Transformer
20.
Electrical
Wiring
Inlet
21.
High
Voltage
Terminal
Block
22.
Door
Safety
Switch
23.
Contactor
24.
Centrifugal
Blower
25.
Damper
Motor
26.
Outside
and
Return
Dampers
27.
Enthalpy
Controlled
Economizer
-9-
Intake
Hood
Dampers/Filters
Electrical
Duc
t
Supp
l
y
Blower
Cabinet
Cabinet
F
urnace
Plenum
