Trane GRCA - Rigging and Mounting Procedures

Roof Curbs for arrangements D
and E include an evaporative
cooler platform. See GRAA-IN-2.
Roof Curbs ship knocked down for
ease of handling and storage. The
field assembly and mounting of the
curb to the roof is the responsibility
of the installer. All curbs ship
complete with pre-assembled side
and end rails, cross member
supports, ductwork connector
brackets, hardware, insulation and
gasketing. See Figures 11, 17, and
18 for a complete parts list for your
curb. Check to see that all
components are included. Refer to
Figures 11 thru 18 to see if all
other field supplied parts are also
on hand.
Provide a suitable opening, or two
openings, in the roof as suggested
per Figures 10 and 12. These
return and/or supply air ductwork
openings have been calculated to
include a one inch clearance on
each side of the ductwork. The
installer may determine other
opening(s) to accept return and/or
supply air ducts to suit particular
needs.

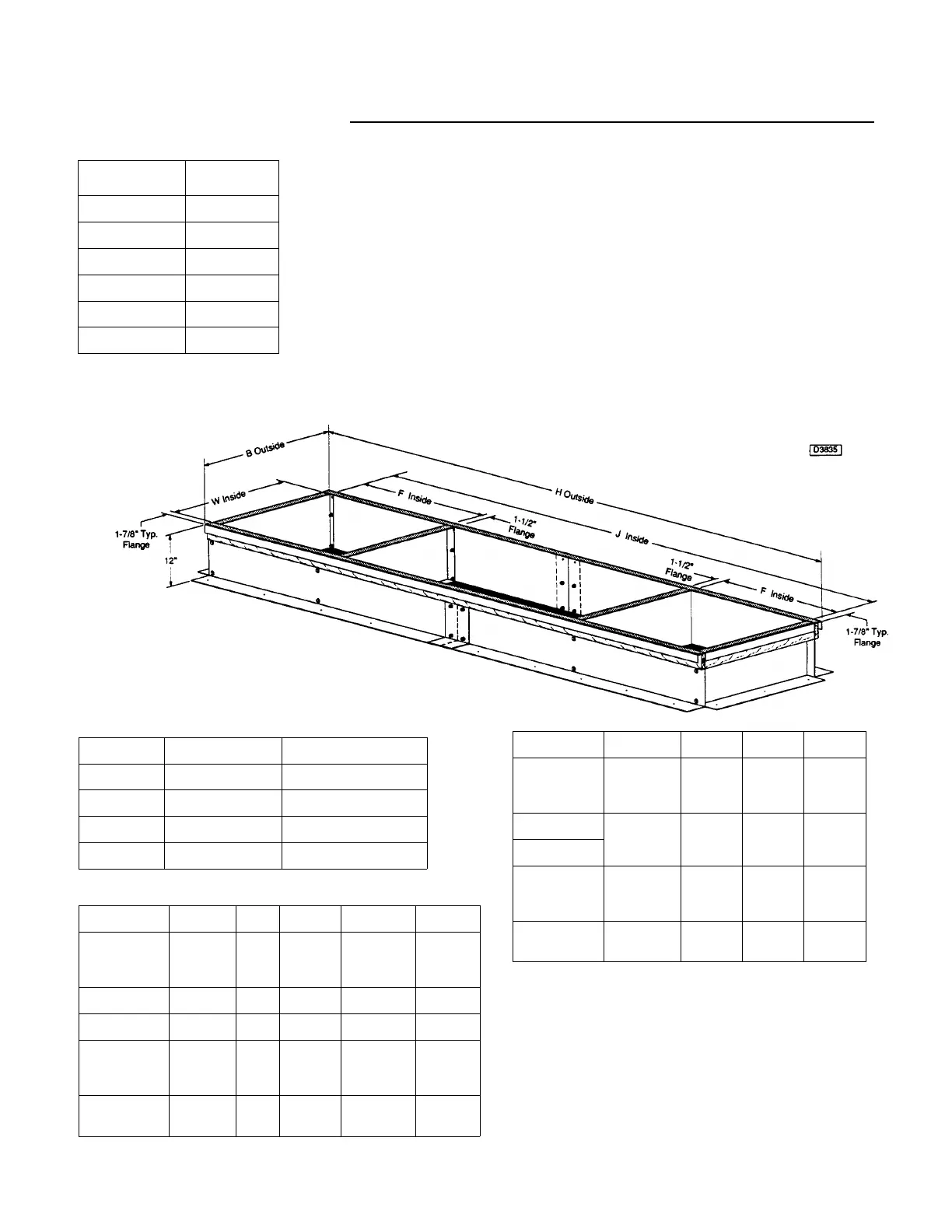

Figure 9 - Dimensions
Capacity W+ B+
10,15 26-7/16 (672) 30-3/16 (767)
20,25,50 37-7/16 (951) 41-3/16 (1046)
30,35,60,70 48-7/16 (1230) 52-3/16 (605)
40,80,12 53-15/16 (1370) 57-11/16 (1465)
Approximate Roof Curb Weights
RA* Capacity 10,15 20,25,50 30,35,60,70 40,80,12
G
J
K
50 thru 80
20 thru 40
10 thru 40
192 210 228 238
C 50 thru 80 NA 197 217 227
E 50 thru 80 NA 227 247 257
G
J & K
L
12
50 thru 80
10 thru 40
310 338 366 381
J
L
12
50 thru 80
NA 375 403 418
RA* Capacity F+ H+ J+
G
J
K
50 thru 80
20 thru 40
10 thru 40
37-1/8
(943)
133-1/4
(3385)
129-1/2
(3289)
C
50 thru 80
30-7/8
(765)
123
(3124)
119-1/4
(3029)
E
G
J & K
L
12
50 thru 80
10 thru 40
37-5/16
(948)
159-5/16
(4046)
155-9/16
(3951)
J
L
12
50 thru 80
36-15/16
(938)
185-5/16
(4707)
181-9/16
(4612)
Notes:
RA* = Rooftop Arrangement
+ Dimensions are in inches.
(Dimensions in parenthesis are in millimeters.)
1 lb. = 0.453 kg
NA = Not Applicable
Dimensional Data
Arrangement Capacity
C 50-80
E 50-80
G 50-12
J 20-12
K 10-80
L 10-80
