Trane HORIZON ABDA - ABTF Control Locations Diagram; Figure 14. Machine sensor locations

58
ABTF Control Locations
Machine controls are factory mounted and wired. External
controls are connected with field wiring, and are controlled
by the chiller or used by the chiller system.

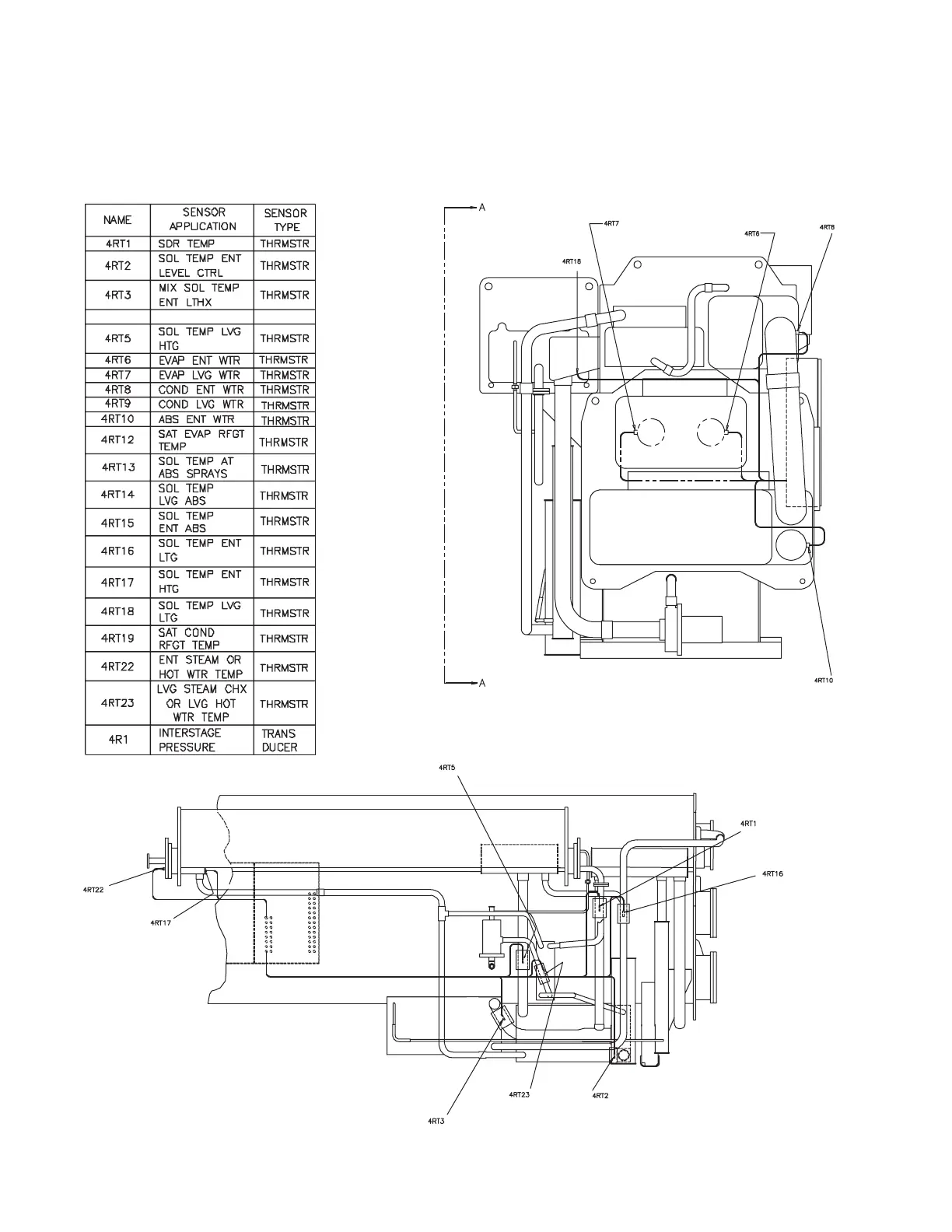

Figure 14. Machine sensor locations
(Other Sensors on Next Page)
Detail A - A
(Rear View)
Left Hand End
Left Hand View
