Trane LonWorks



TR1 Series VFD User Manual

17

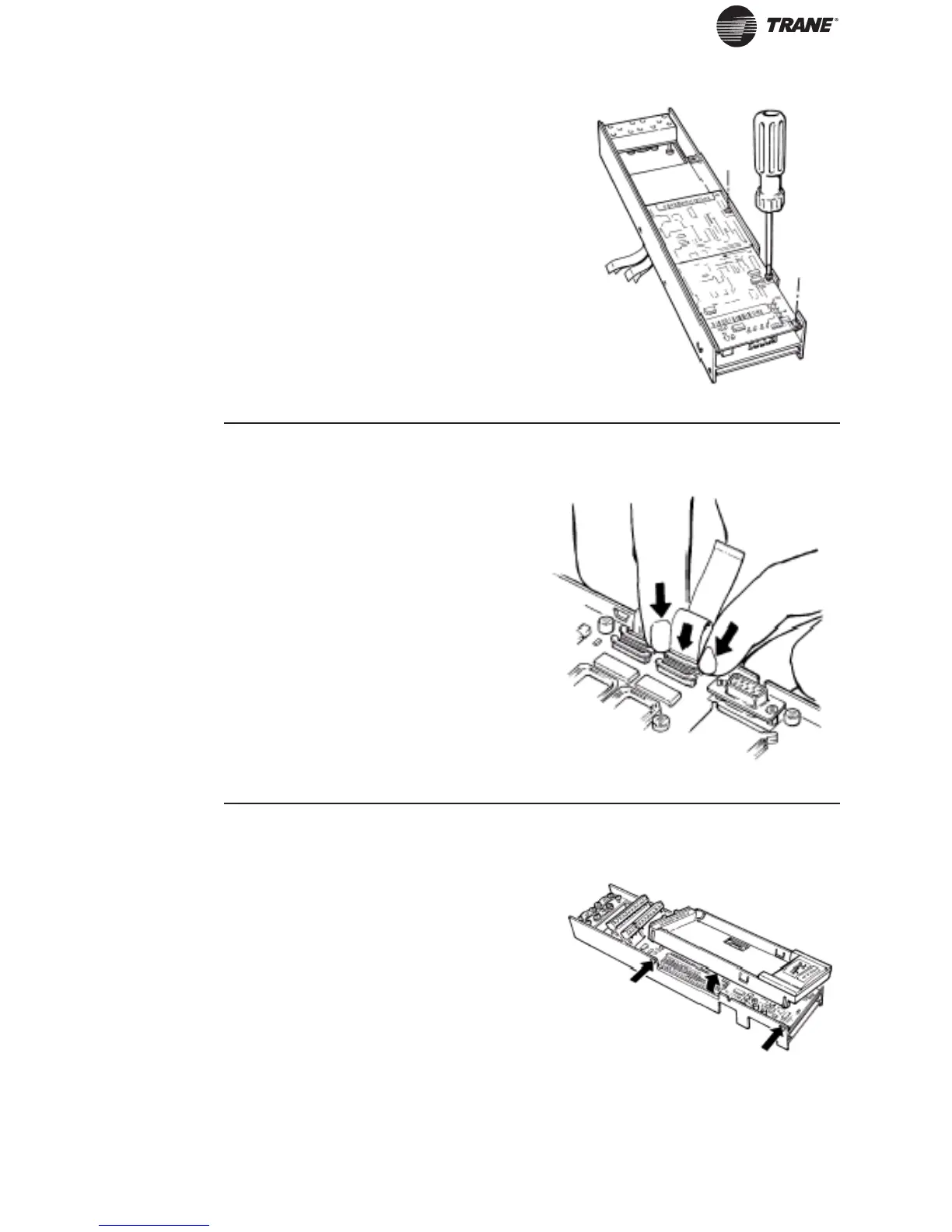

11. Install
Ribbon
Cable on
TR1 Control
Board
• Be sure not to twist or crimp ribbon
cables.
• Insert cables into corresponding sockets
and fasten in accordance with directions
in step 5.
NEMA 1
• Insert cradle clips into holes in cassette.
• Push down on cradle to snap it into
place.
12. Install
LCP Cradle
10. Secure
LonWorks
Card
• Secure LonWorks card with 3
self-tapping screws and washers
provided using Torx T-10 screw driver.
Tighten to 8 in-lbs.
