• Connect ribbon cables.
• Connect control card cassette to hinge
at top of drive and fit into chassis.
14. Install
Ribbon
Cables
NOTE
Ribbon cables must be recon-
nected to same connections from
which removed.

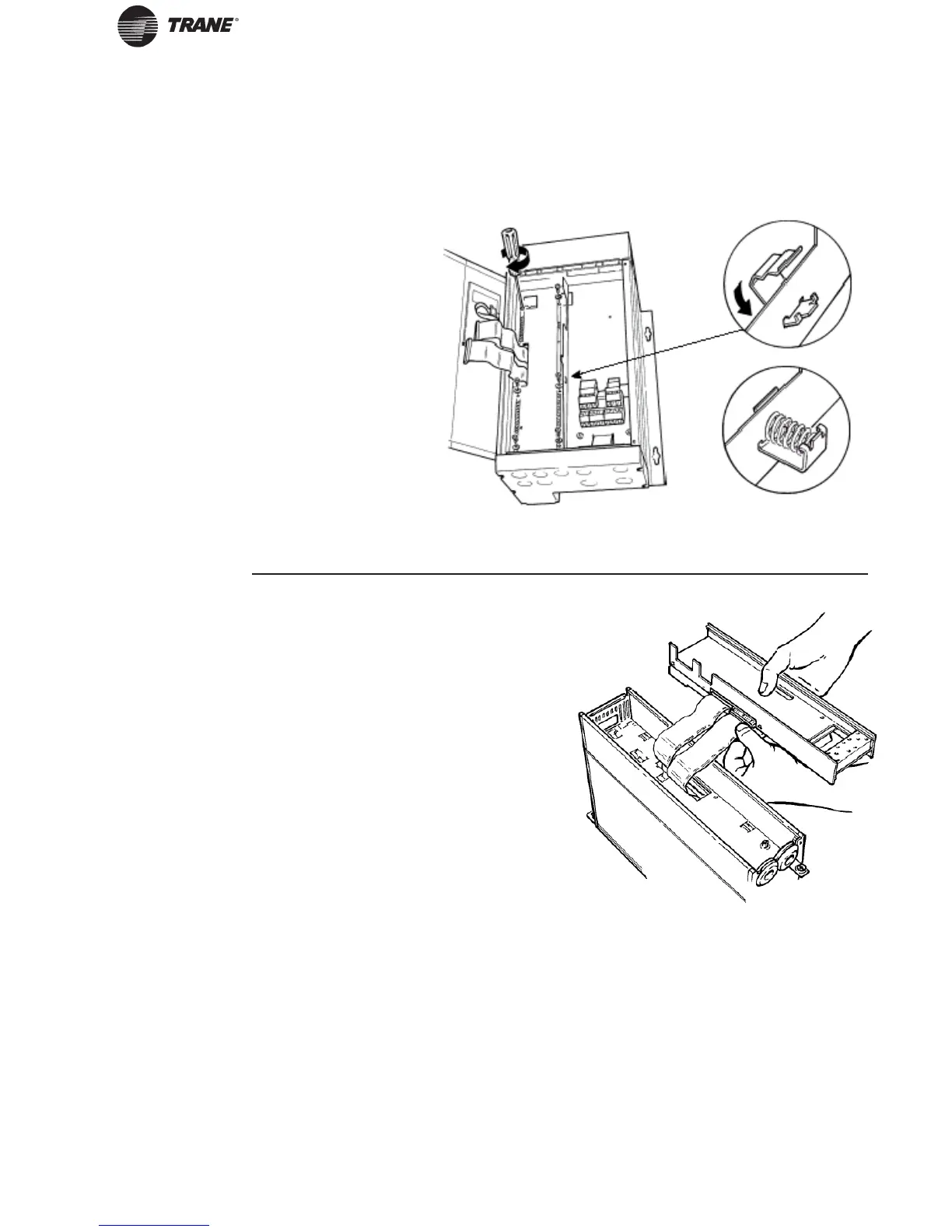

• Spring tension clip (A) is used as a cable
strain relief.
• Insert clip through inner wall of chassis
at slot provided.
• Compress spring into clip at outer wall
of chassis.
13. Install
Spring
Tension
Clip
(A)
