Type of physical connection to Tracer Summit:
RS-232 Ethernet ARCNET Other __Comm 5___
Cable Details:
The connection from the Trane TR1 LON Option Card to the BCU’s Comm 5 card is an RS-485 twisted pair connection.
Equipment for Trane to Provide:
BCU with RS-232 card TSWS
TSCB BCU With LAN Card
Other – Comm 5 Card
Other documents for Reference
Tracer Summit Connections to LonTalk Devices BAS-PRB003-EN
Trane TR1 IOM TR1-SVX10A-EN
Appendix

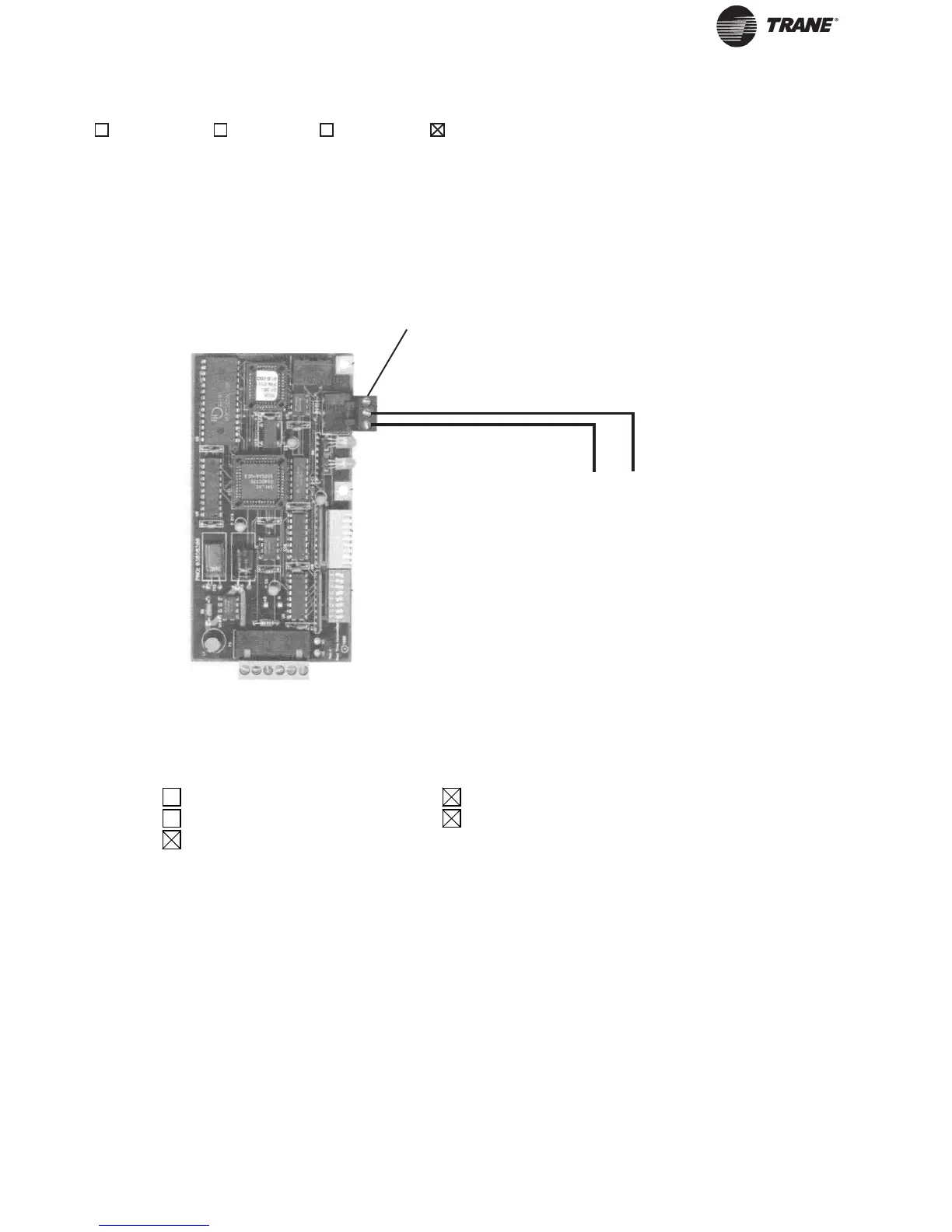

TR1 LON Option Card
3-pin RS-485 connector
pin 79
pin 80
BCU Comm 5 Card
