Trane Manhattan Gen II User Manual

Logical Flow Diagrams
ARTC-SVX002A-EN 75
Refrigeration Logical Flow
The Manhattan™ Gen II Chiller uses independent
refrigeration circuits per module using scroll
compressors. See below figure.
The thermal capacity of the chiller modules is dependent
on the leaving temperature of the chilled water
maintaining a minimum flow of water through the
evaporator.

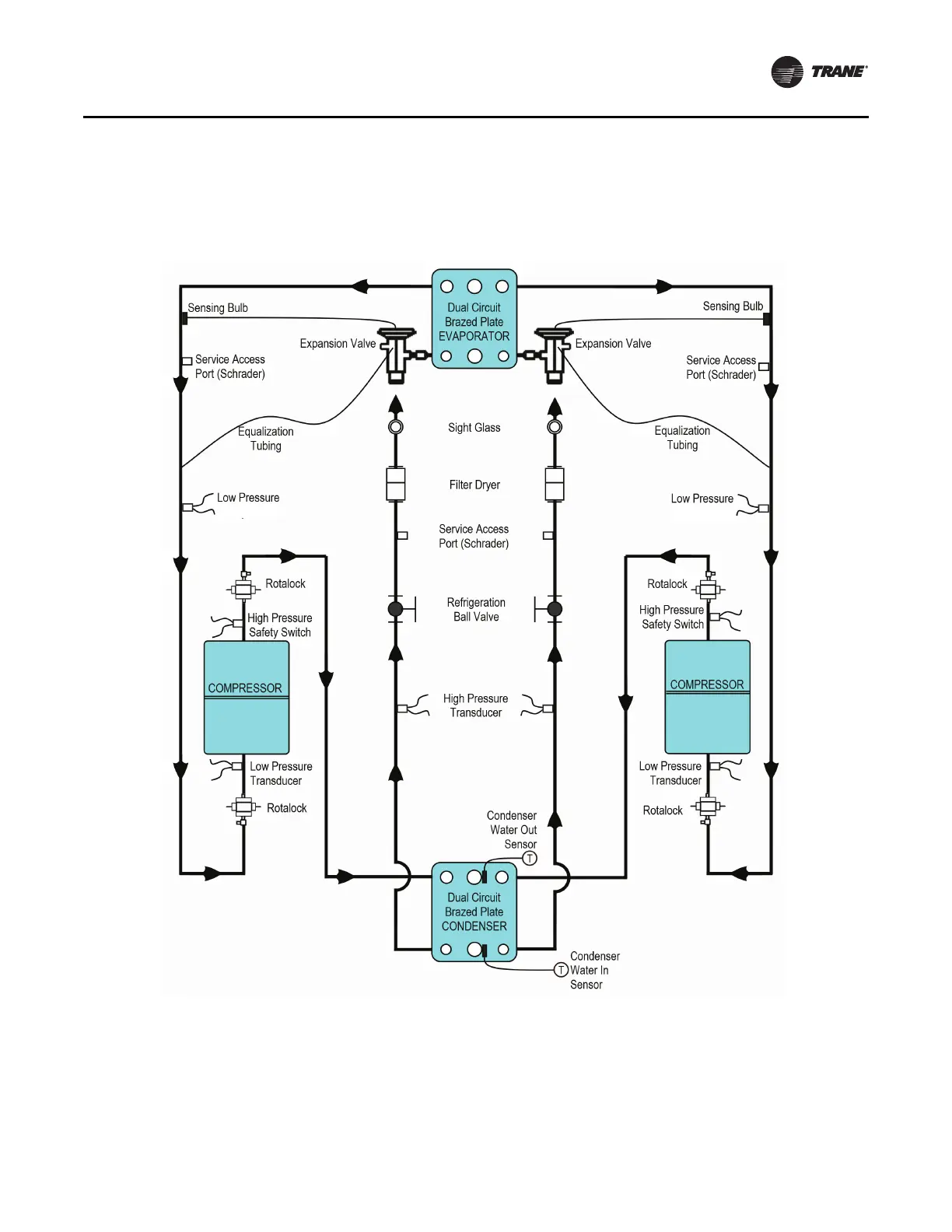

Figure 29. Refrigeration logical flow
Pumpdown Switch
Pumpdown Switch

Trane Manhattan Gen II Specifications

General

Brand	Trane
Model	Manhattan Gen II
Category	Chiller
Language	English
