Trane Manhattan Gen II - Water;Glycol Mixture Logical Flow

Logical Flow Diagrams
76 ARTC-SVX002A-EN
Water/Glycol Mixture Logical
Flow
Trane recommends using a water/glycol mixture instead
of an all-water fluid. The water/glycol mixture is used
within a closed system as shown in below figure.

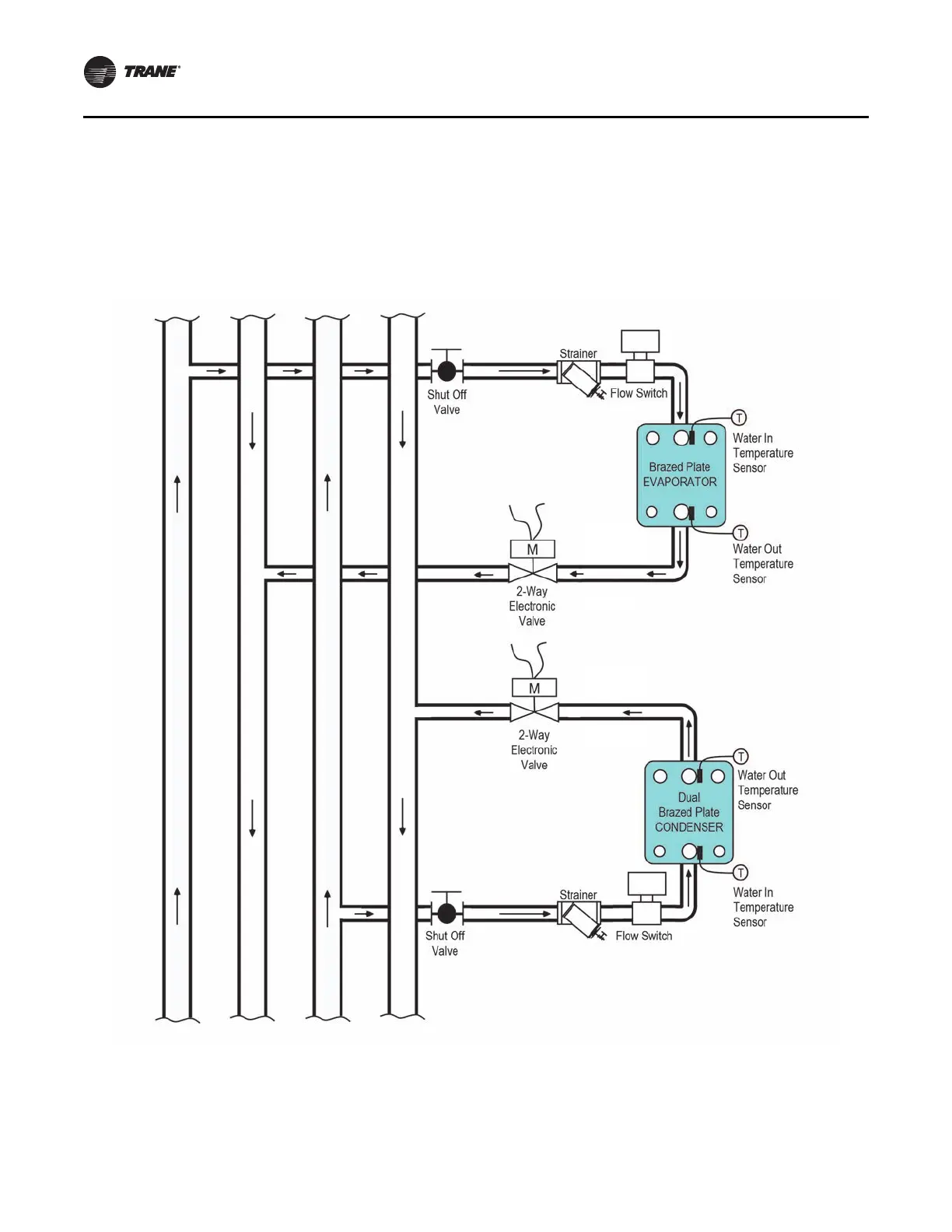

Figure 30. Water/glycol mixture logical flow
