Installation of air outlet duct
The air outlet duct may be rectangle or round: rectangle duct may be connected directly to the •
air outlet of the indoor unit with rivets; round duct should be connected to the air outlet of the
indoor unit after adding a transition duct, and another end may be separate or be connected to

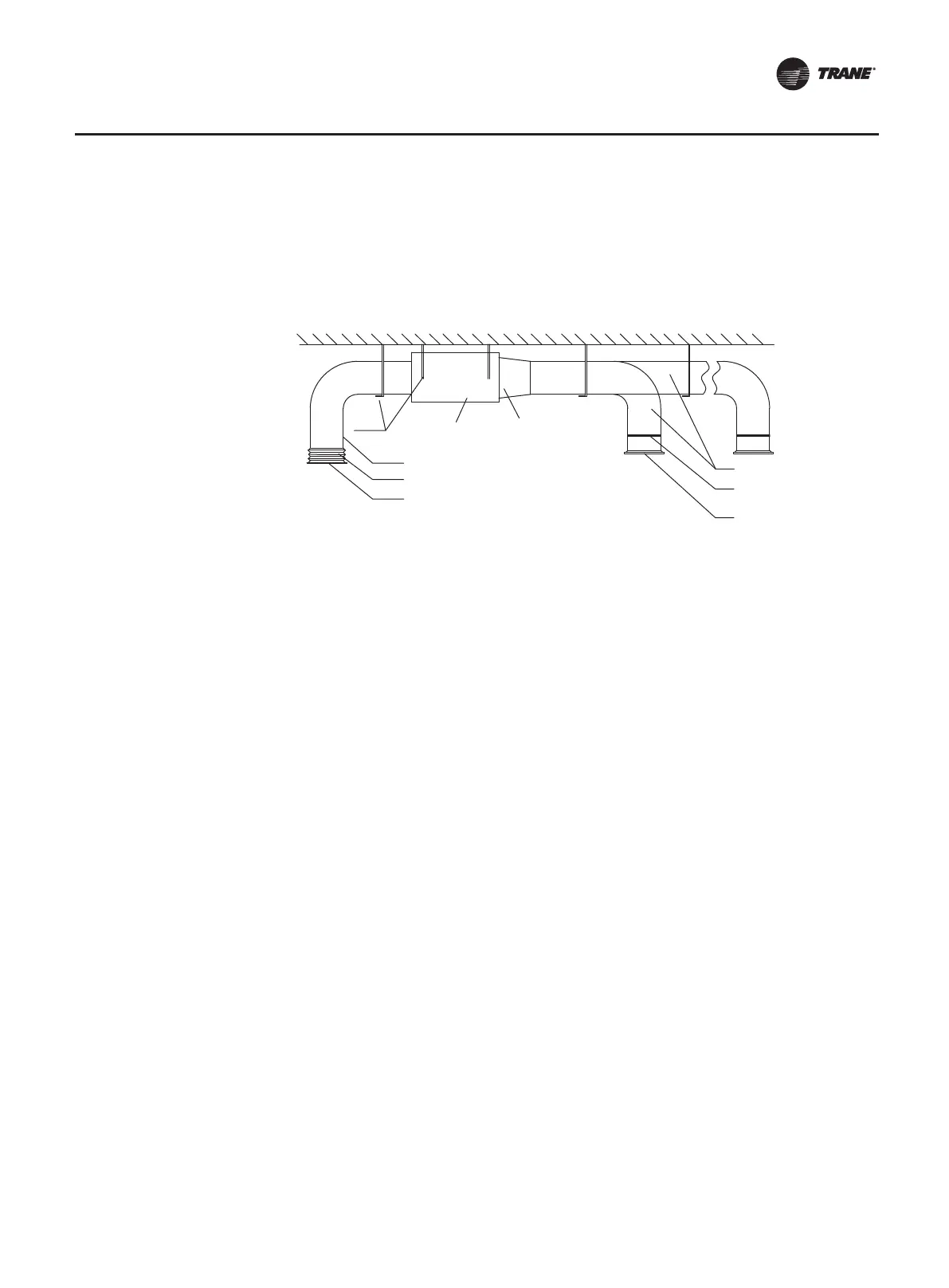

the air outlet grille, as shown in following fi gure:
Fan speed of each grille shall be uniform basically so as to meet the air conditioning requirement •
of the room.
Return air duct
Canvas duct
Return air grille
Air outlet duct
Strainer
Air outlet grille
Suspension rod
Indoor unit
Transition duct
Unit Installation
AMS-SVX04A-EN 13
