Precautions
Before connecting the drainage pipe, fi rst dismount the drain plug on the left or right side of the •
bottom plate;
The condensate pipe should be as short as possible drains in run-off elevation (under way), avoid •
the drainage pipe up and down, and prevent counter fl ow of the condensate water;
A 1/100 or more gradient should be provided for installation of the horizontal drainage pipe. •
Moreover, the hose should be fi xed with suspension rods, and the distance between them is 1.0
to 1.5 m.

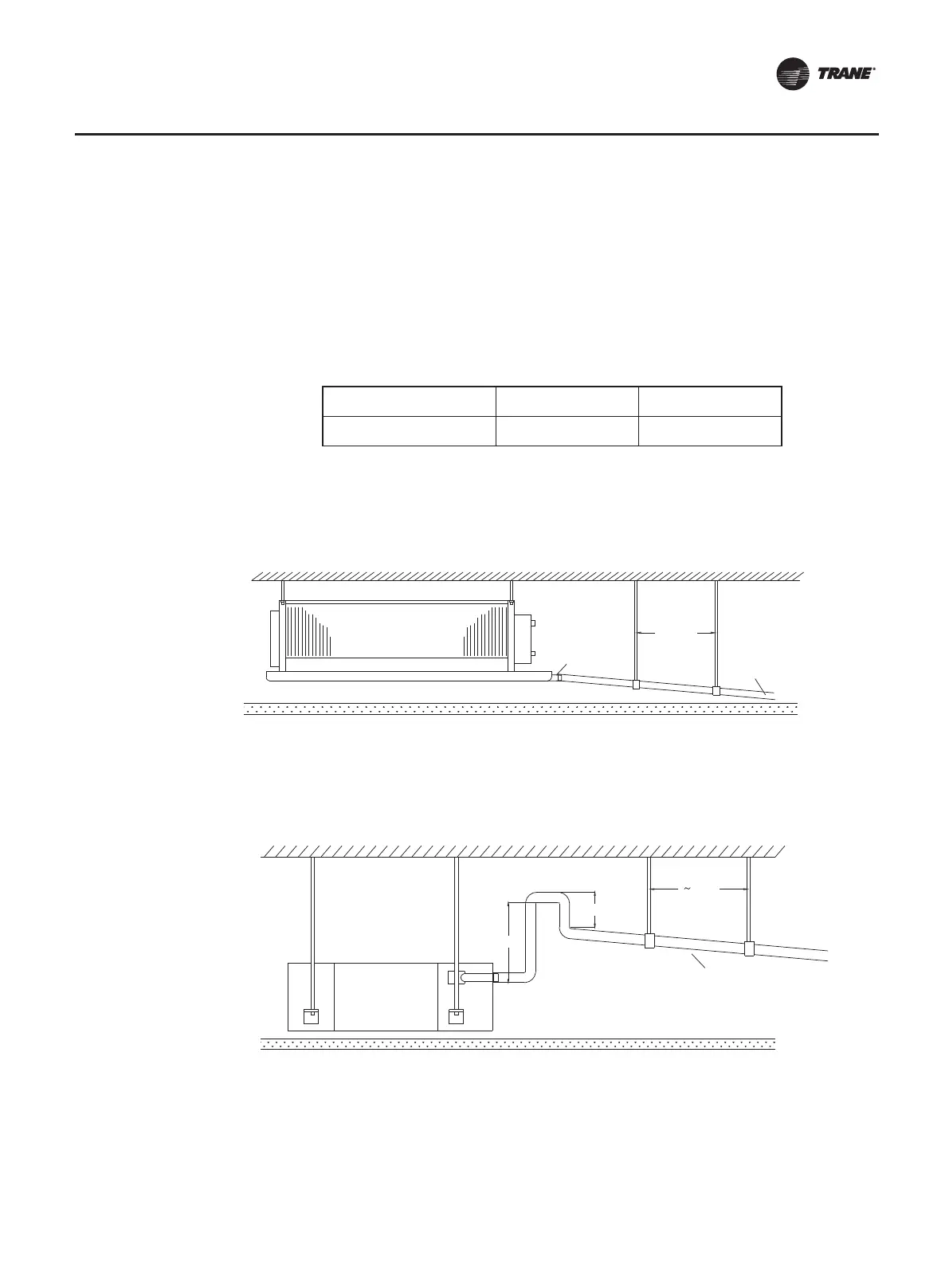

Distance between the suspension rods of the horizontal drainage pipe:
Material Nominal diameter Distance
Hard PVC pipe 25 ~ 40 mm Less than 1.5 m
Connection of drainage pipe
Without drainage pump:
Never install the drainage pipe upwards, or water may fl ow back to the machine.•
Drainage
pipe joint
1~1.5m
Horizontal drainage pipe
(1/100 or more gradient)
Hoisting screw
Ceiling
Drainage pipe joint
With drainage pump:
The draining height outside the unit may not exceed 500 mm, or else water leakage may be •
caused;
First raise the drainage pipe by 300 ~ 500 mm, then down to 20 mm at least.•
1 1.5m
Suspension rod
Horizontal drainage pipe
(1/100 or more gradient)
≥20mm
≤500mm
Ceiling
Indoor unit
Installation of refrigerant pipe
AMS-SVX04A-EN 17
