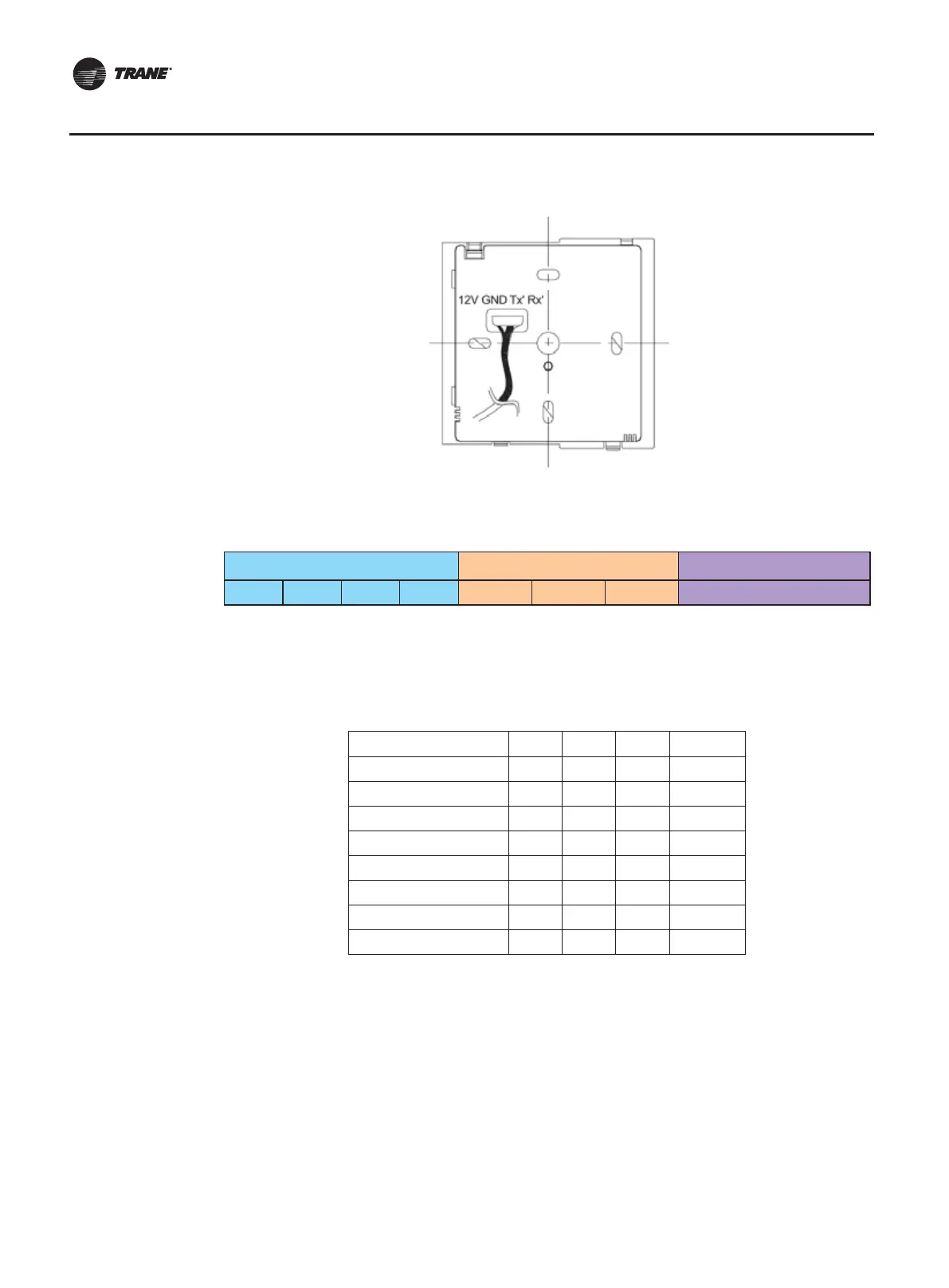

Plug the terminal of shielded communication line in corresponding place of the wired controller.2.
To wired controller
Cover the front cover plate of the wired controller.3.
DIP setting of the controller
DIP for model of indoor unit DIP for address of indoor unit Shift selection of indoor fan
S1 S2 S3 S4 S5 S6 S7 S8
DIP for model of the indoor unit
If model of the indoor unit differs, the DIP setting of the control panel is different. There are 8 DIP
switches on the control panel of the indoor unit, of which S1, S2, S3 and S4 are for model, and their
settings are as shown in following table:
Model of indoor unit S1 S2 S3 S4
MW(C)D507 0 0 0 0
MW(C)D509 0 0 1 0
MW(C)D510 0 0 1 1
MW(C)D511 0 1 0 0
MW(C)D512 0 1 0 1
MW(C)D516 1 0 0 1
MW(C)D518 1 0 1 1
MW(C)D524 1 1 1 0
Electrical control wiring
20 AMS-SVX04A-EN
