Fig. 4-1
POWER
NOTES:
1: Use copper wire(75 min), to be wired in accordance with N.E.C. and local codes.
2: If any of the original wire as supplied must be replaced,use the same or equivalent type wire.
3: Remove the red lead from 240V terminal and then connect the red lead to 208V terminal on the transformer for 208 volts.
4:
5: TDB has a 90-100s off delay when G is de-energized.
6:ConnectRto R,Gto G, etc. See outdoor or indoor instructions for details.
7:Cooling controls wiring not used with electric heaters,
8: N.E.C., class2,24volts.
Factory default fan speed is medium; FM red wire connected to FR #4. For HI speed connect FM black wire to FR #4. For LOW speed
connect FM blue wire to FR #4 and FM red wire to FR #6. Always connect the unused FM wire to the dummy terminal CN3.
connect the plug to electric heaters kit when applied.
FM
TATSOMREHTOT
PLUG PLATE
SEE NOTE 4

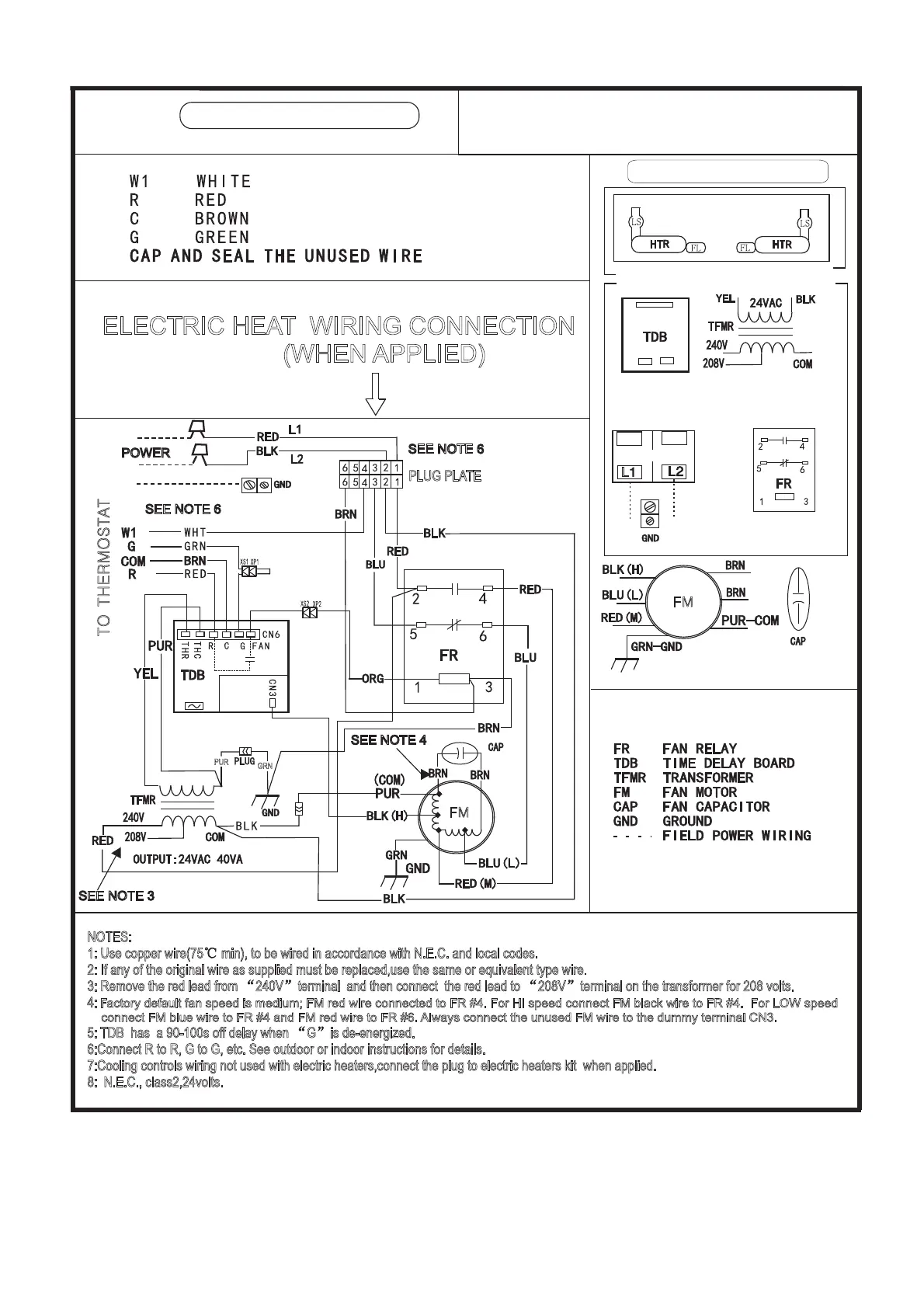

SCHEMATIC DIAGRAM
COMPONENT ARRANGEMENT
CAUTION:
ATTENTION:
NOT SUITABLE FOR USE ON SYSTEMS EXCEEDING 150V TO GROUND
NE CONVIENT PAS AUXINSTALLATIONS DE PLUS DE 150V ALA TERRE
L1
L2
FM
DISC
SEE NOTE 6
SEE NOTE 3
ELECTRIC HEAT WIRING CONNECTION
(WHEN APPLIED)
SEE RATING PLATE FOR VOLTS&HERTZ
FUSE
PUR
GRN
SEE NOTE 6
To Next Page
