Duct Connections
Table 7. Supply Duct Connections

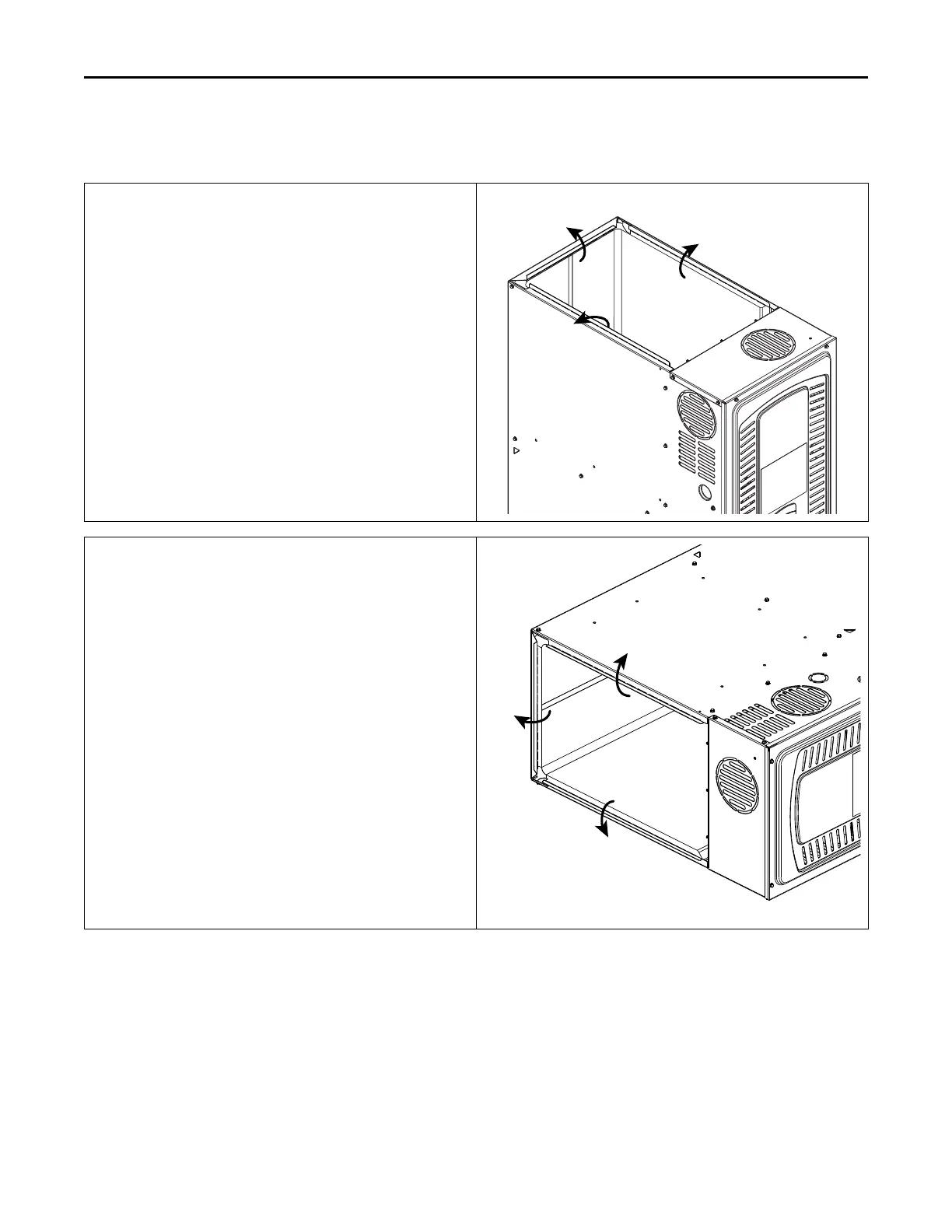

Upflow Modular Blower with Coil
1. Bend modular blower flanges up.
2. Set the coil on top of the modular blower.
3. Screw through the coil cabinet into the modular blower flange.
Guide holes are located on the coil.
Note: There are no longer guide holes located on the modular blower
flange.
4. Seal per local codes and requirements.
Modular Blower in Horizontal Left with Coil
1. Bend modular blower flanges up.
2. Support the modular blower and coil independently.
3. Screw through the coil cabinet into the modular blower flange.
Guide holes are located on the coil.
Note: There are no longer guide holes located on the modular blower
flange.
4. Seal per local codes and requirements.
