28
P0V0-SVX001-1A-EN
Troubleshooting
The following pages include troubleshoo!ng flowcharts in reference for the P0V0 family of Modular Blower only.
The informa!on contained is for reference only and does not cover all scenarios or problems that may be encountered.
ONLY qualified technicians should a$empt to install, troubleshoot, or repair this appliance.
Failure to follow all cau!ons and /or warnings could result in personal or property damage, including death.
Error Codes
Alarm Error Code
Alarm Explanation
e0!
Loss of the IRQ or other internal failures (Internal IMBC error)
e06
Voltage reversed polarity or Bad Grounding
e!2
Open fuse
e!3
Blower HP/OEM ID
e!4
No PM and local copy bad
e!s
Both of unit Data File in PM and local Unit Data File are corrupt
e!7
Blower motor no communication response
e!8 Blower communication failure on the control
Motor
Communications
Personality
Module
Low Voltage Terminal Strip
12 Pin
Connector
LINE
Connections
EAC, HUM
Dry Contacts
Neutral
Connections
7 Segment LED
MENU and OPTION
Select Buttons
5 Amp Fuse
BK Jumper
FP
HLI
BK W2 W1 R G B/C Y2 Y1 O
MVH
MVL
GND
PS2
TH
MVC
HLO
PS1
TR
ILI

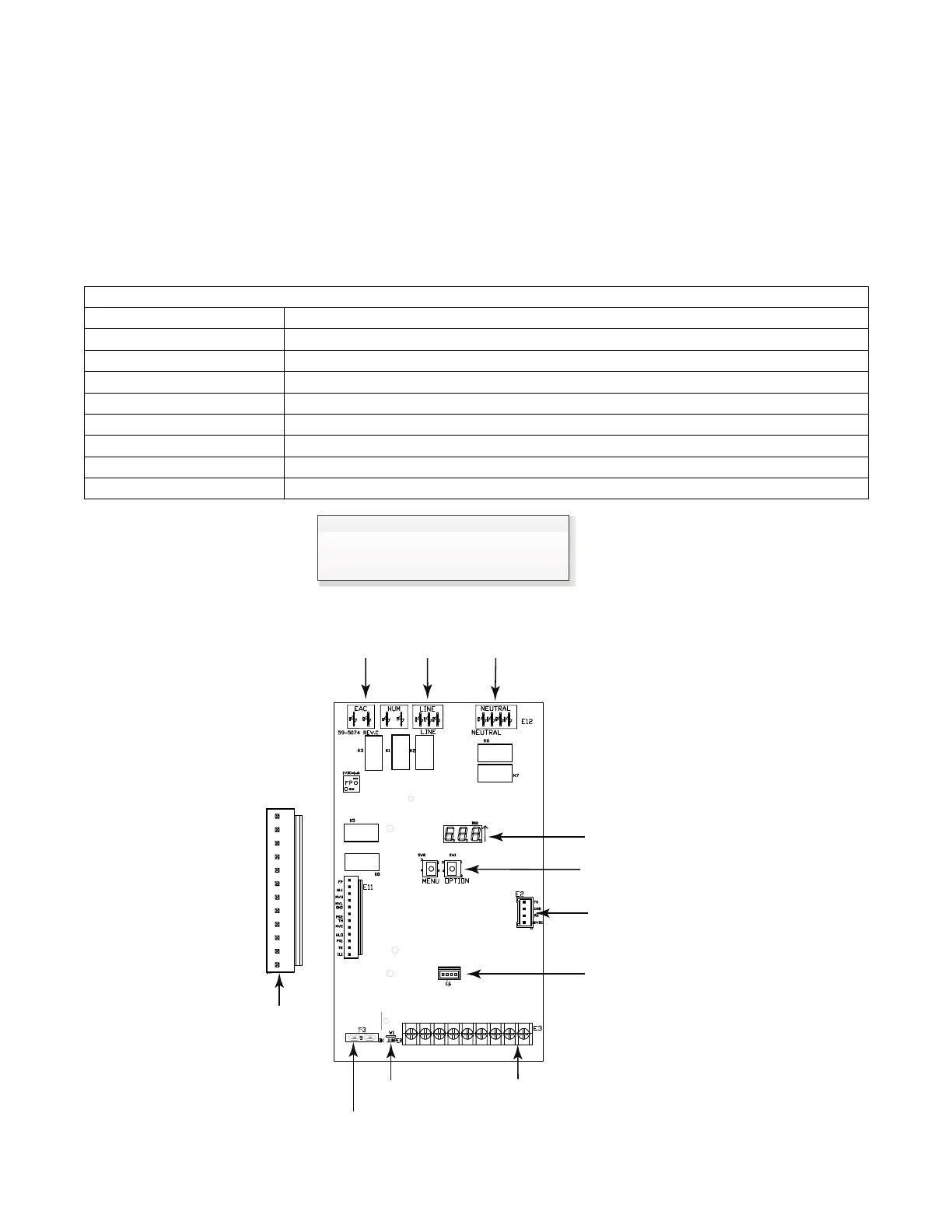

IMBC Component Layout
