Dimensions and Weights
RT-SVX46G-EN 17

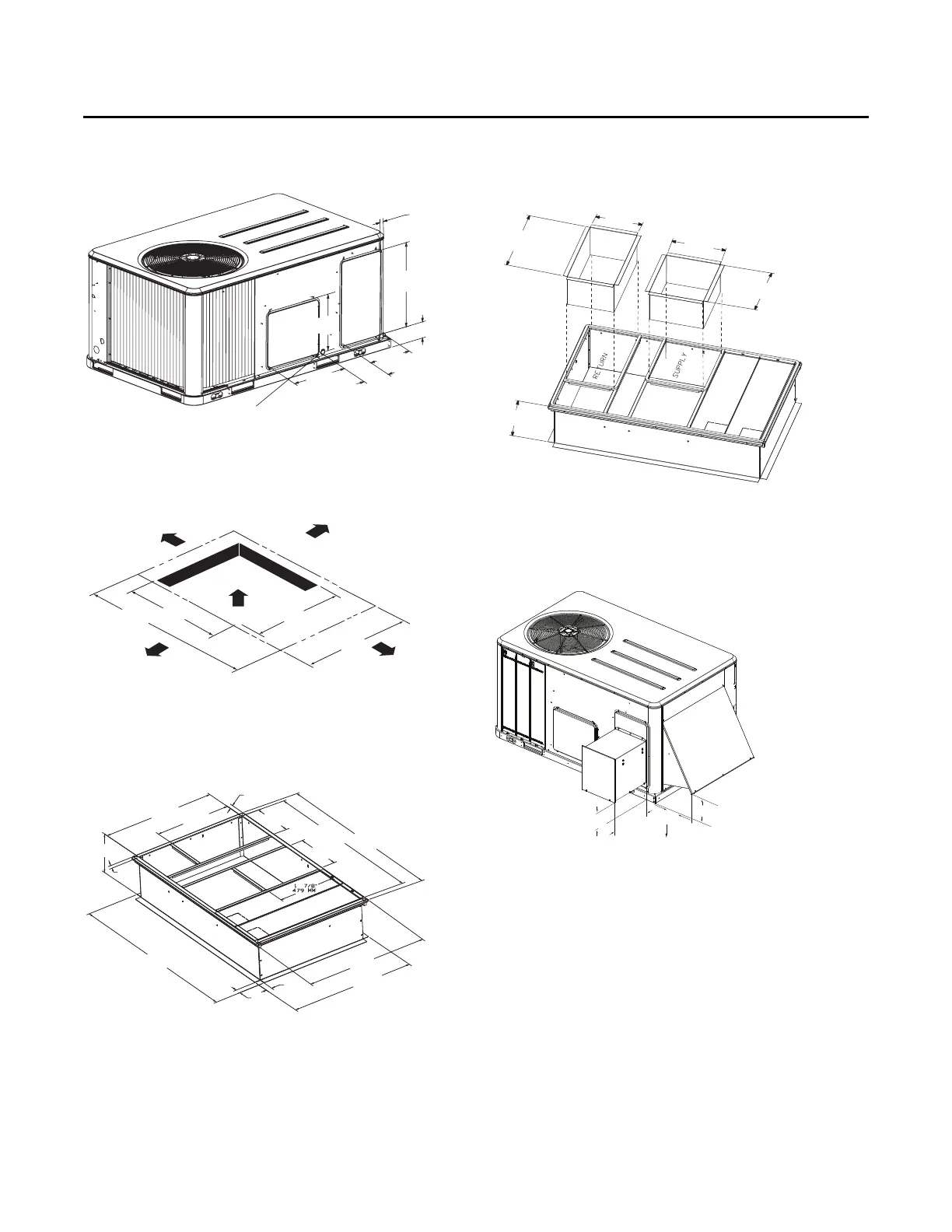

Figure 6. Cooling and gas/electric - 3 tons - horizontal
airflow supply/return
(a)
(a) All dimensions are in inches/millimeters.
Figure 7. Cooling and gas/electric - 3 tons ultra high
efficiency - unit clearance and roof opening
(a)
(a) All dimensions are in inches/millimeters.
Figure 8. Cooling and gas/electric - 3 tons ultra high
efficiency - roof curb
(a)
(a) All dimensions are in inches/millimeters.
3 3/16”
81 MM
23 1/4”
591 MM
4 3/4”
121 MM
14 1/4”
375 MM
13 1/4”
337 MM
8 7/8”
225 MM
17 1/4”
438 MM
3/4-14 NPT Dia. Hole”
Condensate Drain
SUPPLY
RETURN
CLEARANCE 36” (914 MM)
CLEARANCE
HORIZONTAL FLOW - 18” (457 MM)
DOWNFLOW 36” (914 MM)
TYPICAL ROOF OPENING
CLEARANCE FROM
TOP OF UNIT 72”
CLEARANCE 36” (914 MM)
CLEARANCE 48” (1219 MM)
40”
(1016 MM)
68 3/16”
(1732 MM)
37”
(940 MM)
44 1/2”
(1130 MM)
7
CLEARANCE 36” (914 MM)
CLEARANCE 36” (914 MM) FOR DOWNFLOW
CLEARANCE 18” (457 MM) FOR HORIZONTAL
CLEARANCE 36” (914 MM)
CLEARANCE 48” (1219 MM)
RETURN
SUPPLY
14”
356 MM
37 7/16”
951 MM
25 3/16”
640 MM
1 3/4”
44 MM
65 13/16”
1670 MM
1 3/4”
44 MM
14 9/16”
370 MM
8 3/8”
213 MM
61 13/16”
1568 MM
65 3/16”
1656 MM
16 3/4”
425 MM
2”
51 MM
2”
51 MM
40 7/8”
1038 MM
41 7/16”
1053 MM
Figure 9. Cooling and gas/electric - 3 tons ultra high
efficiency - downflow duct connections - field
fabricated
(a)
(a) All dimensions are in inches/millimeters.
Figure 10. Cooling and gas/electric - 3 tons ultra high
efficiency- economizer, manual or motorized
fresh air damper; power exhaust
(a)
(a) All dimensions are in inches/millimeters.
14 1/16”
(357 MM)
16 3/16”
(411 MM)
14”
(356 MM)
17 3/16”
(433 MM)
24 3/8”
(619 MM)
All Flanges 1 1/4” (32 MM)
Dimensions extends to 16.5"/419 MM
when powered exhaust is coupled
with low leak economizer
6.20”
152 MM
16.5”
419 MM
12 1/2”
318 MM
6 1/4”
159 MM
