12
CTV-SVX06J-EN

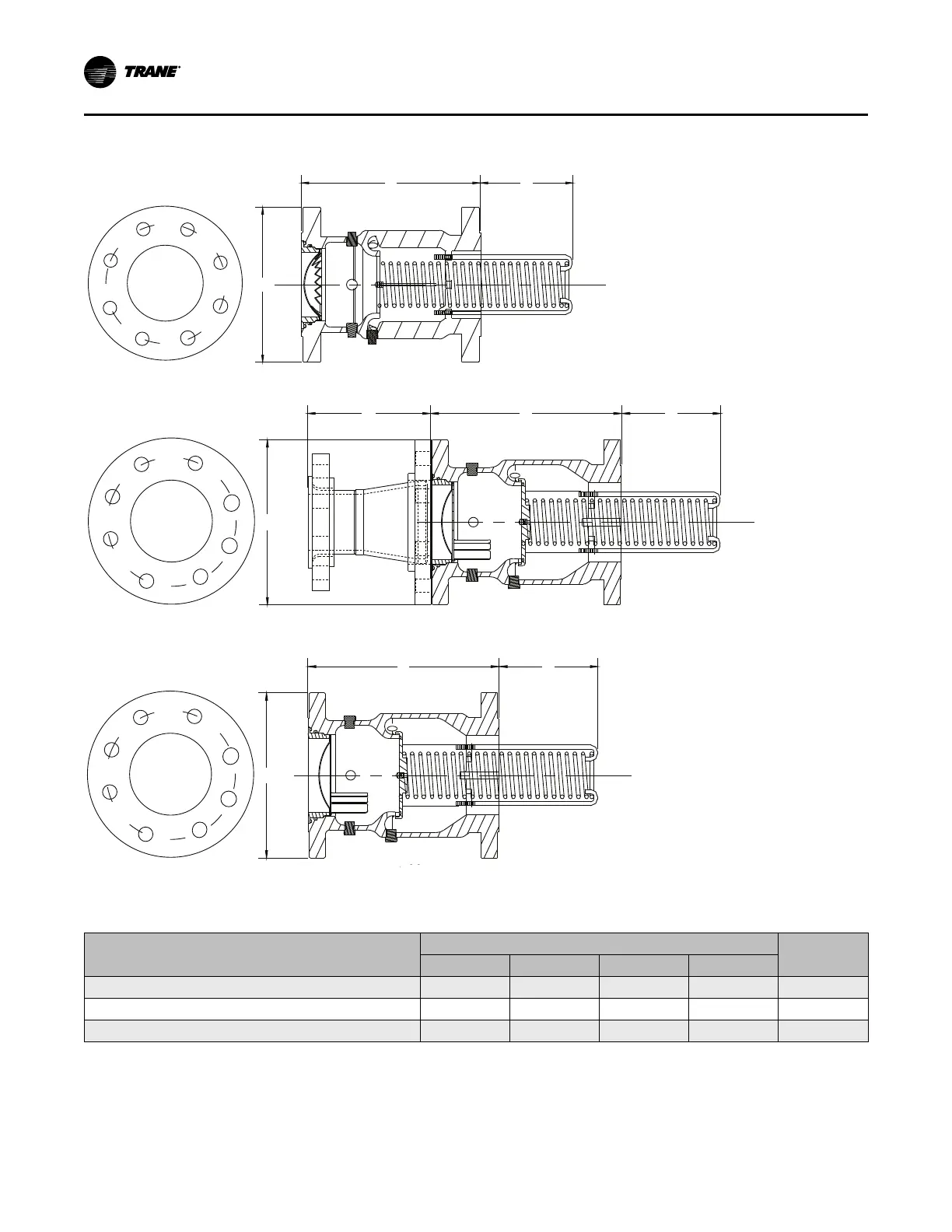

Figure 12. RuptureGuard dimensions
4-in. (101.6 mm) valve assembly with spool piece
A
B
C
BB
A
C
B
3-in. (76.2 mm) valve assembly
4-in. (101.6 mm) valve assembly (without spool piece)
A
B
C
BB
D
(a) Four-inch (101.6 mm) RuptureGuard valve assembly (without spool piece) is used ONLY with 250E Heat Recovery
CenTraVac chillers; some models may require additional parts (i.e., thread-reducing flange, stud, and nut).
(a)
without
Table 4. RuptureGuard dimensions
Dimensions, in. (mm)
Weight,
lb (kg)
A B C D
3 in. (76.2 mm) valve assembly 7.5 (190.5) 8.7 (221.0) 4.0 (101.6)
—
28 (12.7)
4 in. (101.6 mm) valve assembly with spool piece 9.0 (228.6) 10.3 (261.6) 5.0 (127.0) 6.75 (171.45) 67 (30.4)
4 in. (101.6 mm) valve assembly (without spool piece)
(a)
9.0 (228.6) 10.3 (261.6 ) 5.0 (127.0)
—
40 (18.1)
Note: All dimensions are nominal.
(a)
Four-inch (101.6 mm) RuptureGuard valve assembly (without spool piece) is used ONLY with 250E Heat Recovery CenTraVac chillers; some models may
require additional parts (i.e., thread-reducing flange, stud, and nut).
