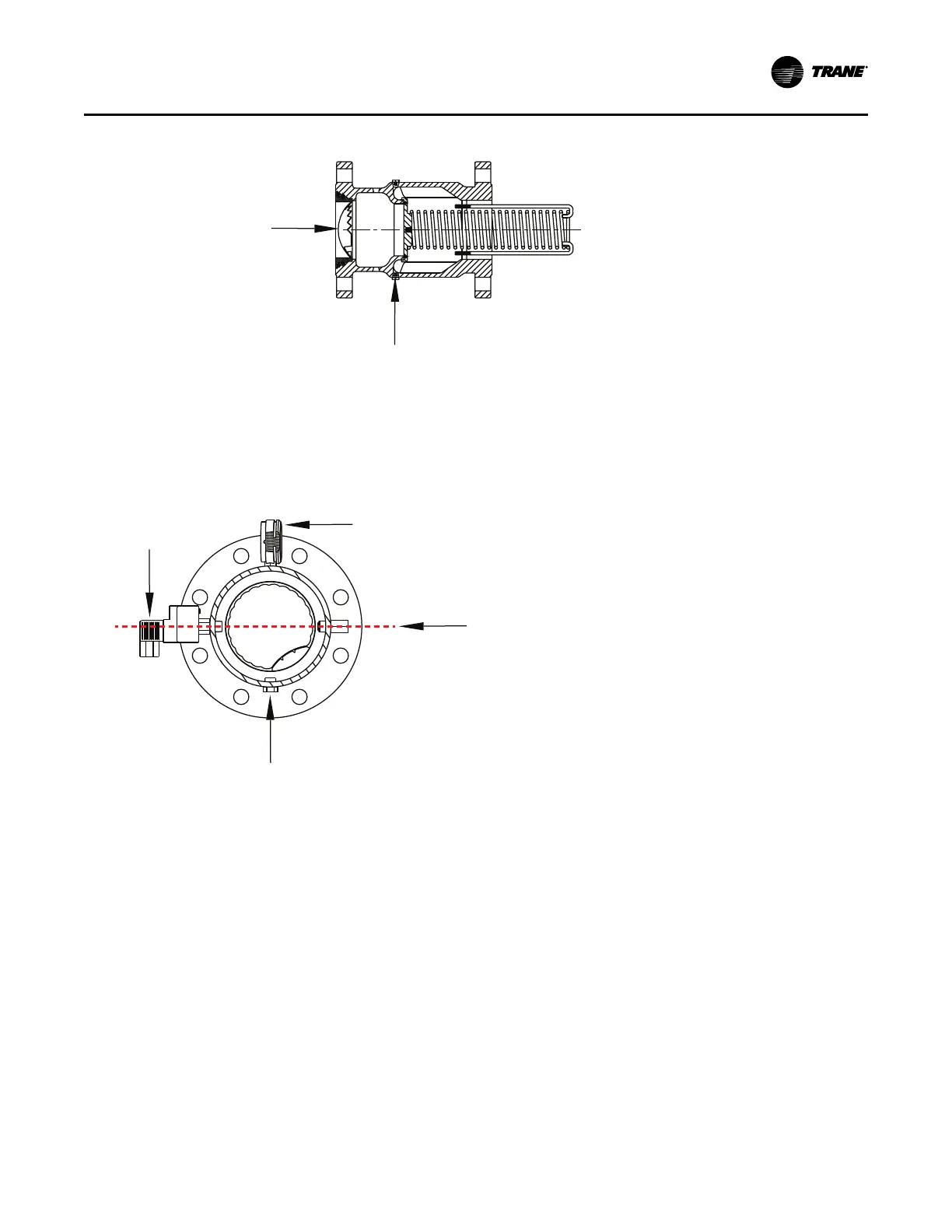

Figure 10. Side view of RuptureGuard assembly
The surface of the
metal RuptureGuard
disk is extremely
fragile and the domed
portion of the disk
should never be
touched!
The drain in the bottom
of the casting should
always be directed
downward (±15°)!
NNoottee:: Positioning of RuptureGuard
™
pressure switch, pressure gauge, and excess flow valves is in the RuptureGuard
™
interspace. The excess flow valve should be positioned horizontally.
Figure 11. Correct RuptureGuard orientation
Excess flow valve needs
to be at or slightly above
the horizontal (never below)!
The drain in the bottom
of the casting should
always be directed
downward (±15°)!
Pressure Gauge
Pressure Switch
NNoottee:: Port orientation may vary.
GGeenneerraall IInnffoorrmmaattiioonn
