10
CTV-SVX06J-EN

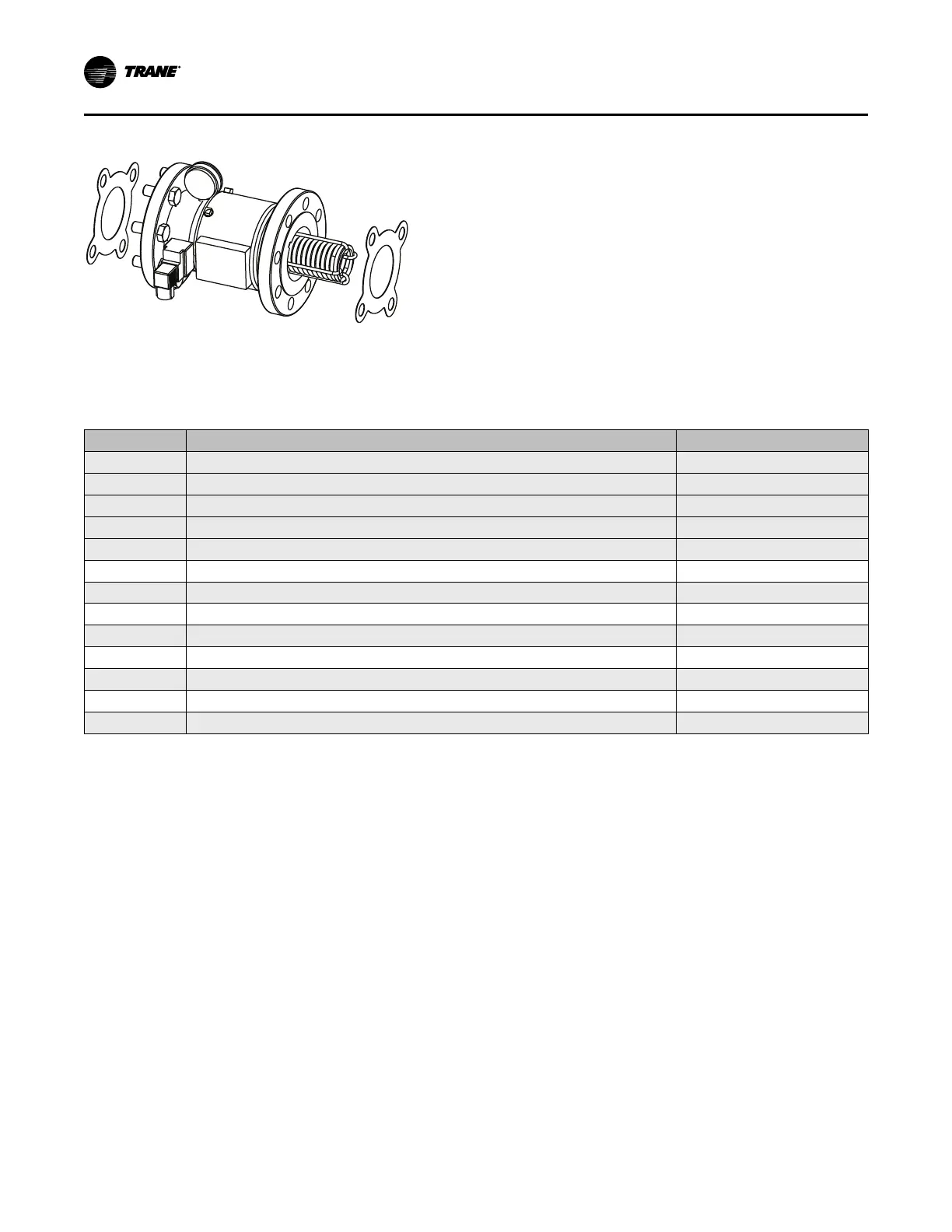

Figure 9. Four-inch (101.6 mm) RuptureGuard valve assembly (without spool piece) kit contents
NNoottee:: Four-inch (101.6 mm) RuptureGuard ™ valve assembly (without spool piece) is used ONLY with 250E Heat
Recovery CenTraVac
™ chillers; some models may require additional parts (i.e., thread-reducing flange, stud, and
nut).
Table 3. Four-inch (101.6 mm) RuptureGuard valve assembly (without spool piece) kit contents
Quantity Item Description
Received
1
4 IN. RUPTUREGUARD VALVE ASSEMBLY (WITHOUT SPOOL PIECE)
1
· VALVE; RELIEF; 4 IN. RESEATABLE RELIEF
—
1
· CONTROL; HIGH-PRESSURE; 10 OP/6 CL
—
1
· EXCESS FLOW VALVE W/SLEEVE
—
1
· GAUGE; 0–60 PSI
—
2
GASKET; FLANGE, 0.031 THK X 6.00OD X 4.82 ID
8
SCREW; HEX, 5/8-11 X 2.25, HEX CAP
1
BAG; FLAT, 9W OPNG X 12.50 LG X 3MIL W/TRANE LOGO
1
LABEL; LOGOS, NAMEPLATE
1 LITERATURE CTV-SVX06F-EN
1
TAG; NOTE - PIPE THREAD SEALANT
1
GASKET; RUBBER; 0.13T X 6.75 OD X 4.38 ID
(a)
4
SCREW; 3/8-16 X 1.75, HEX CAP
(a)
Note: Four-inch RuptureGuard valve assembly (without spool piece) is used ONLY with 250E Heat Recovery CenTraVac chillers; some models may require
additional parts (i.e., thread-reducing flange, stud, and nut).
(a)
This item will be used if the chiller flange has ONLY four holes. Rubber gaskets are NOT for use on flanges with 5/8-in. (15.9-mm) threaded holes.
GGeenneerraall IInnffoorrmmaattiioonn
