S9V2-SVX001-1A-EN
83

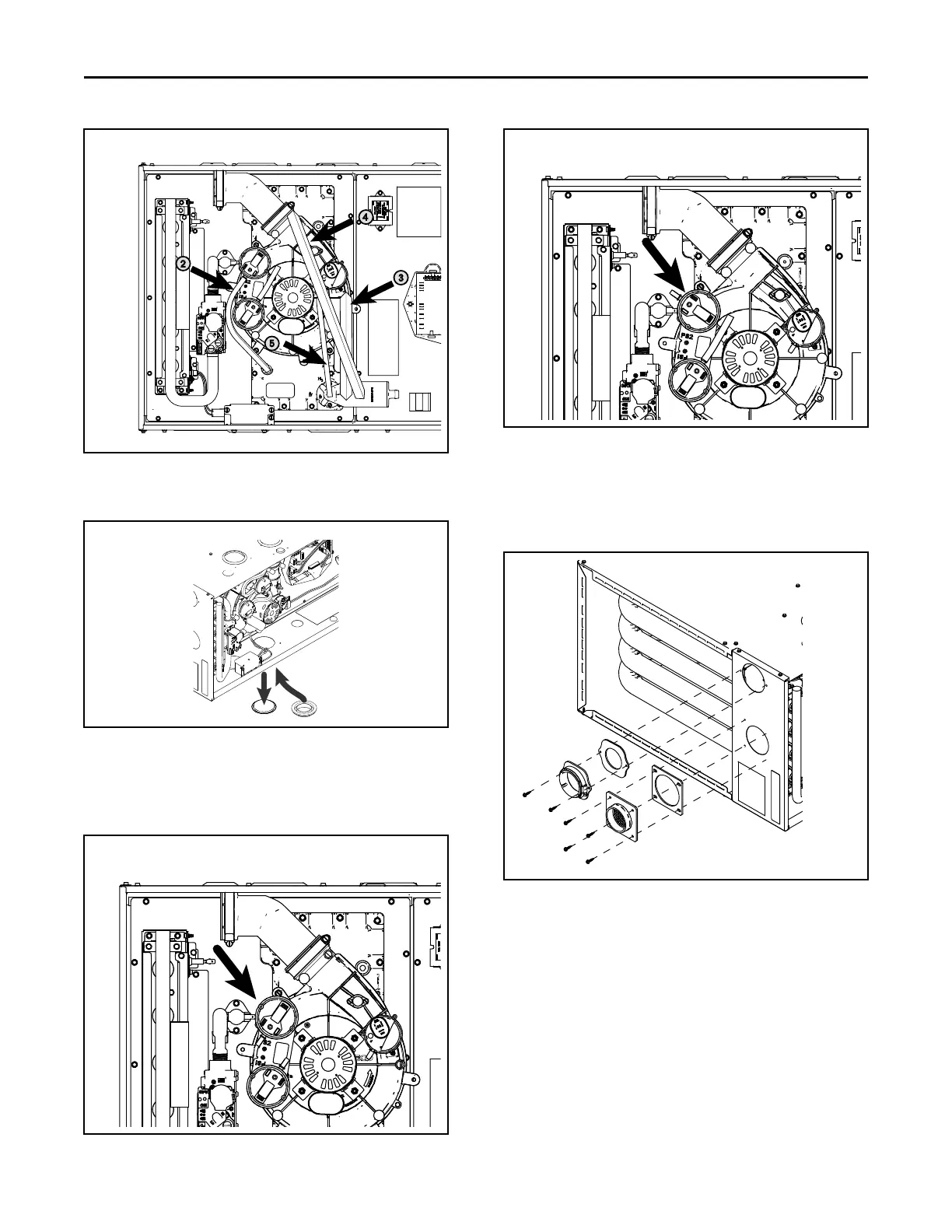

7. Remove plug from 3” hole.
8. Install condensate trap grommet.
9. Remove the pressure switch bracket assembly.
10. Remove the screw that holds PS2, rotate 90 degrees
clockwise, and reattach.
11. Reattach the pressure switch bracket assembly.
12. Attach the vent outlet gasket to the vent outlet.
13. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
14. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
15. Slide PVC through vent outlet adaptor and insert
into inducer outlet.
16. Twist to insure PVC is fully inserted.
17. Tighten the two clamps.
18. Install the combustion air inlet PVC pipe.
NNoottee:: The vent outlet adapter is used for strain relief
against the weight of the venting. The clamp
should be tightened after the internal connection
is made.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
