64
18-CE18D1-1A-EN

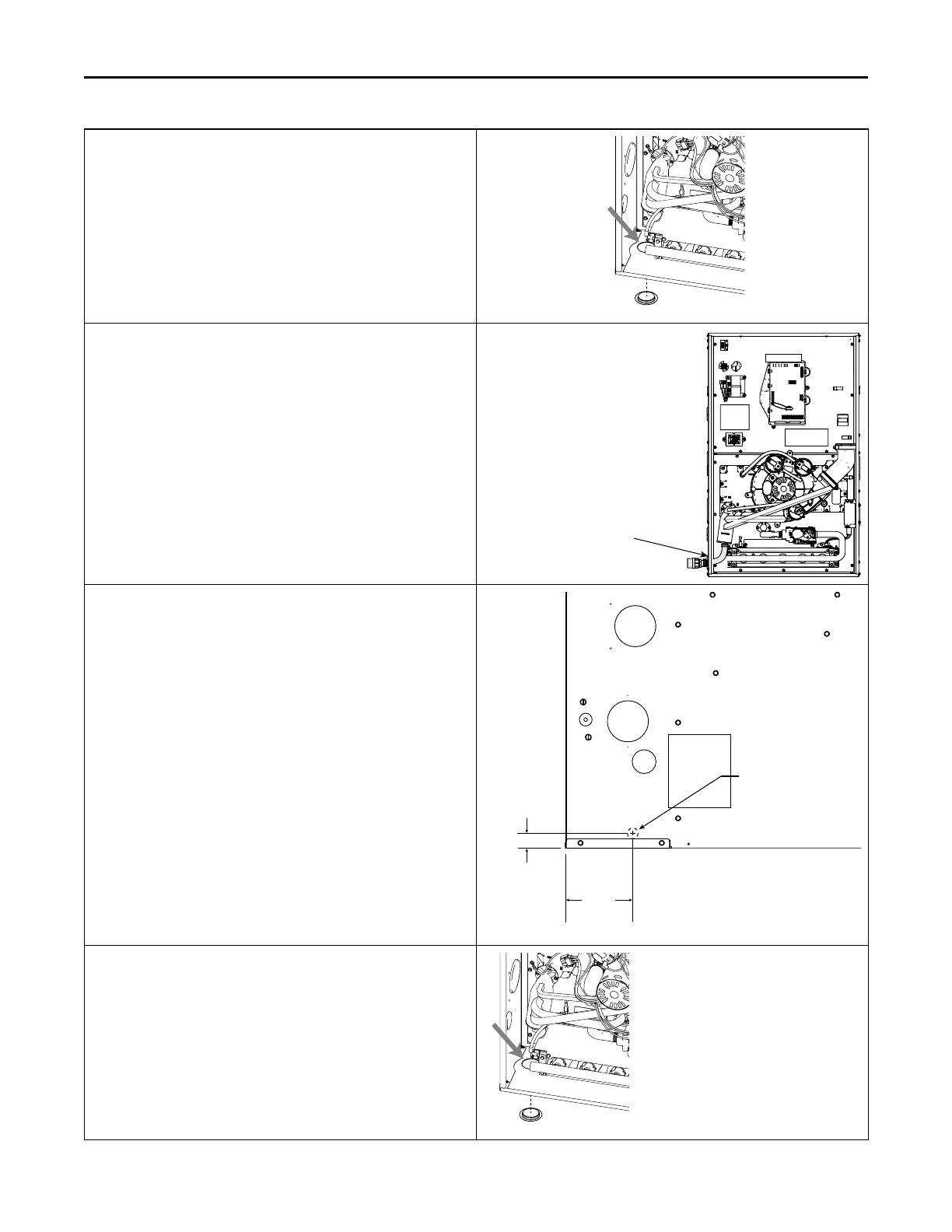

Plug the bottom hole with plug provided in document pack.
Attaching the condensate drain line.
1. Locate the condensate grommet and the condensate drain line
assembly in the doc pack.
2. Insert the condensate grommet in the 1–5/8” hole in the side of
the cabinet.
3. Remove the fitting at the end of the drain line assembly and insert
it through the cabinet from the inside out. Attach the 90 degree
section of the hose to the condensate drain trap.
4. Cut off the excess tube and reinstall the end fitting to the drain
hose.
BOTTOM HOLE MUST BE PLUGGED.
DOWNFLOW FURNACES
LEFT SIDE DRAIN
IF THE FURNACE IS
INSTALLED OVER A FINISHED
CEILING, OVERFLOW FROM
THE PRIMARY DRAIN VENT
STACK MUST FLOW INTO AN
AUXILIARY DRAIN PAN TO
PREVENT DAMAGE TO THE
FINISHED CEILING BELOW
CONDENSATE
GROMMET
Downflow furnace with Right Side Condensate - Drill an 11/16
inch diameter hole in the right side of the case at the dimensions
shown.
Plug the bottom hole with plug provided in document pack.
CCoonnddeennssaattee DDrraaiinn IInnssttrruuccttiioonnss
