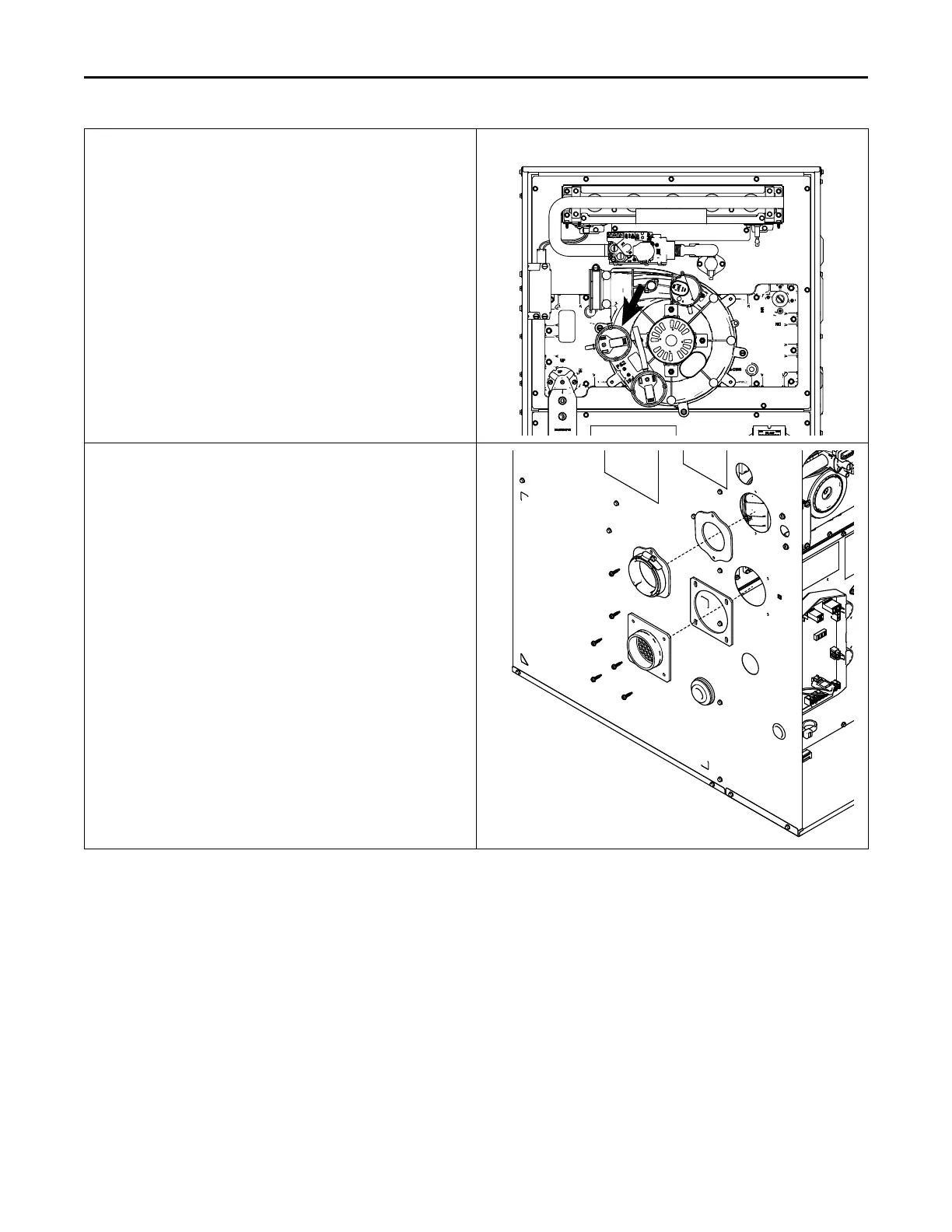

1. Remove the pressure switch bracket assembly.
2. Remove the screw that holds PS2, rotate 90 degrees clockwise,
and reattach.
3. Reattach the pressure switch bracket assembly.
Note: Illustration shows the PS2 pressure switch in the final rotated
position.
1. Attach the vent outlet gasket to the vent outlet.
2. Install vent outlet to top of cabinet using 2 screws supplied in the
dock pack.
3. Install vent inlet gasket and vent inlet using 4 screws supplied in
the dock pack.
4. Install the grommet for the condensate drain tube. The drain may
be located on either side of the cabinet.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
To Next Page
