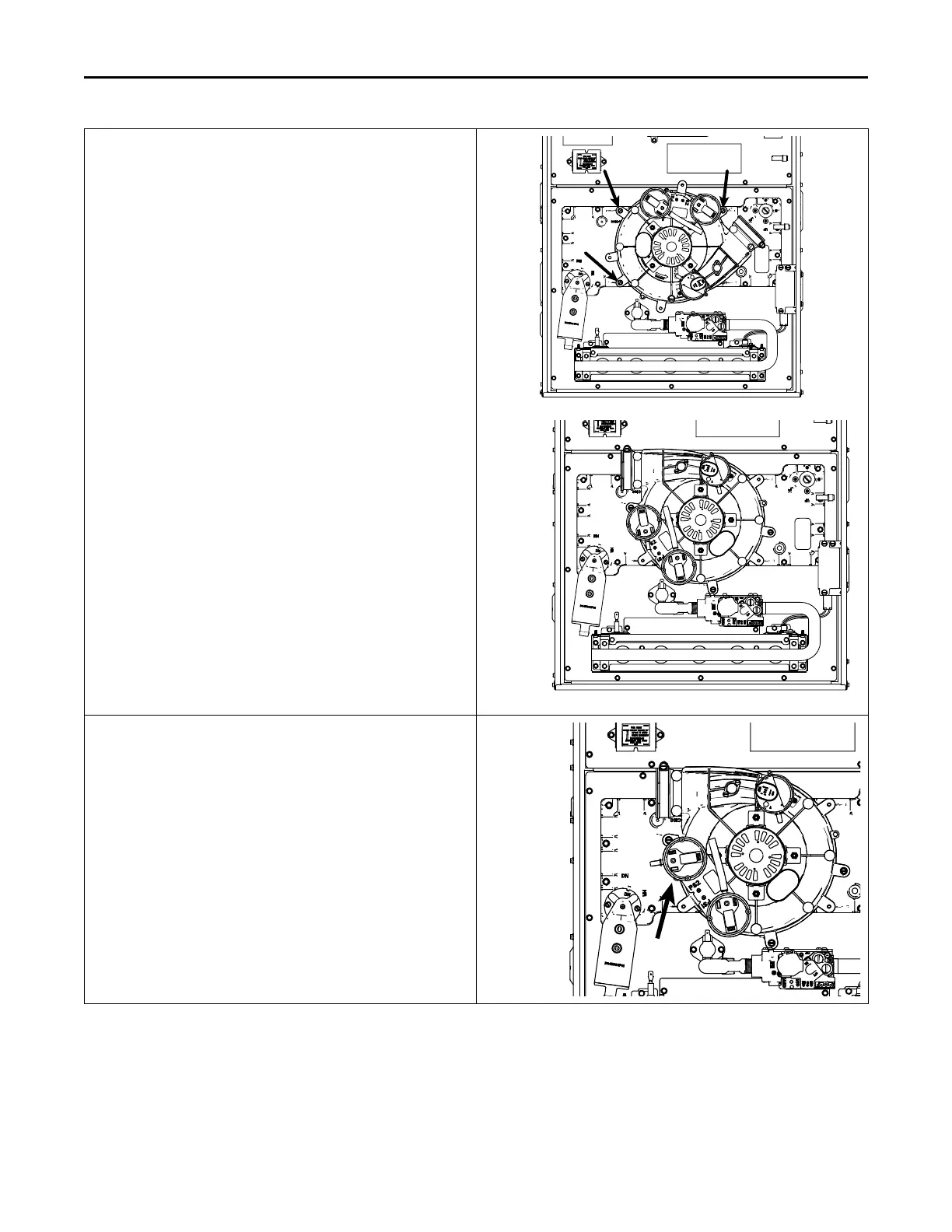

1. Remove the three inducer mounting screws.
2. Rotate inducer counterclockwise so that the inducer outlet aligns
with the exhaust vent outlet.
3. Reinsert and tighten screws to 30 in.-lbs. Do not overtighten.
1. Remove the pressure switch bracket assembly.
2. Remove the screw that holds PS2, rotate 90 degrees
counterclockwise, and reattach.
3. Reattach the pressure switch bracket assembly.
Note: The illustration shows PS2 in its final position after being
rotated.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
