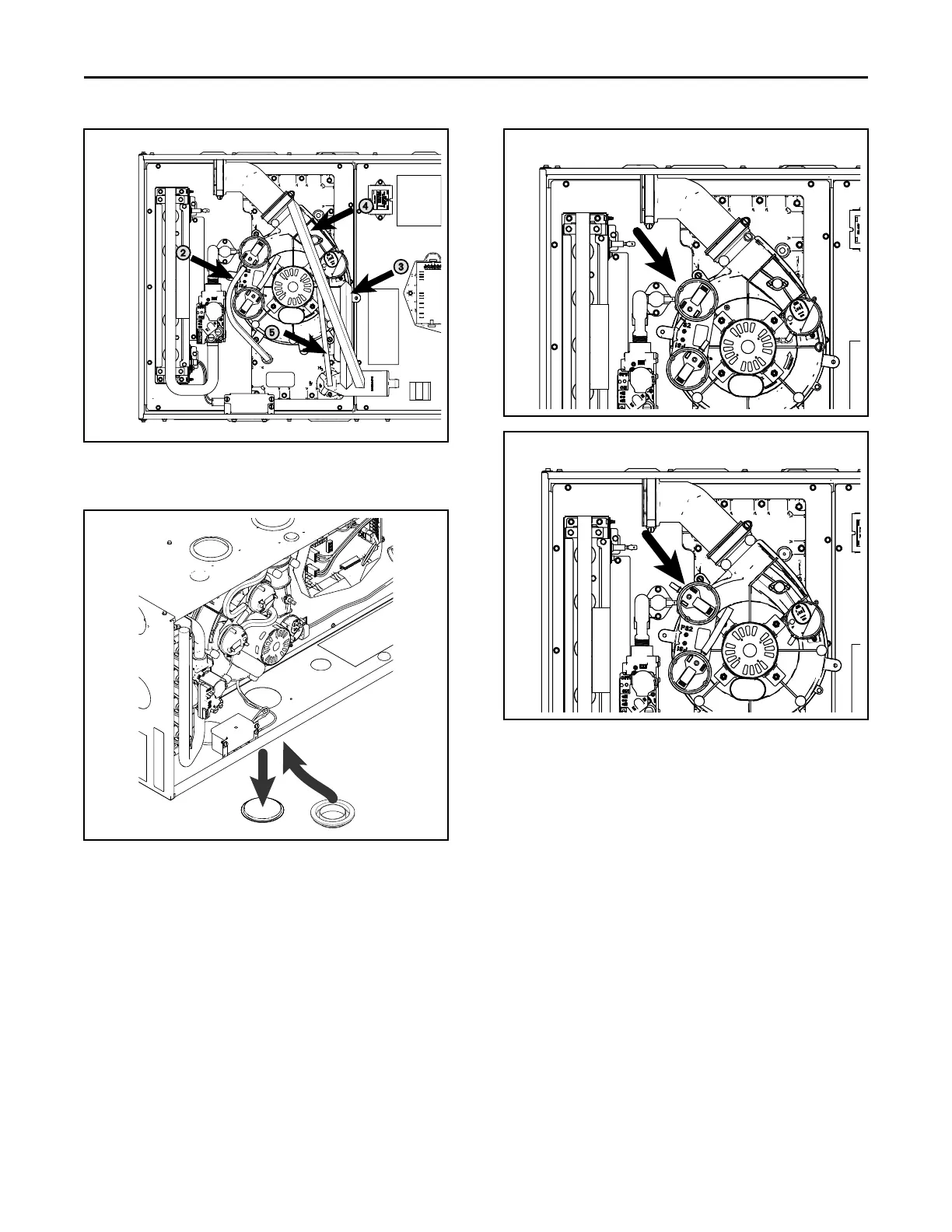

7. Remove plug from 3” hole.
8. Install condensate trap grommet.
9. Remove the pressure switch bracket assembly.
10. Remove the screw that holds PS2, rotate 90 degrees
clockwise, and reattach.
11. Reattach the pressure switch bracket assembly.
12. Attach the vent outlet gasket to the vent outlet.
13. Install vent outlet to top of cabinet using 2 screws
supplied in the doc pack.
14. Install vent inlet gasket and vent inlet using 4
screws supplied in the doc pack.
FFuurrnnaaccee CCoommbbuussttiioonn AAiirr EExxhhaauusstt OOppttiioonnss
