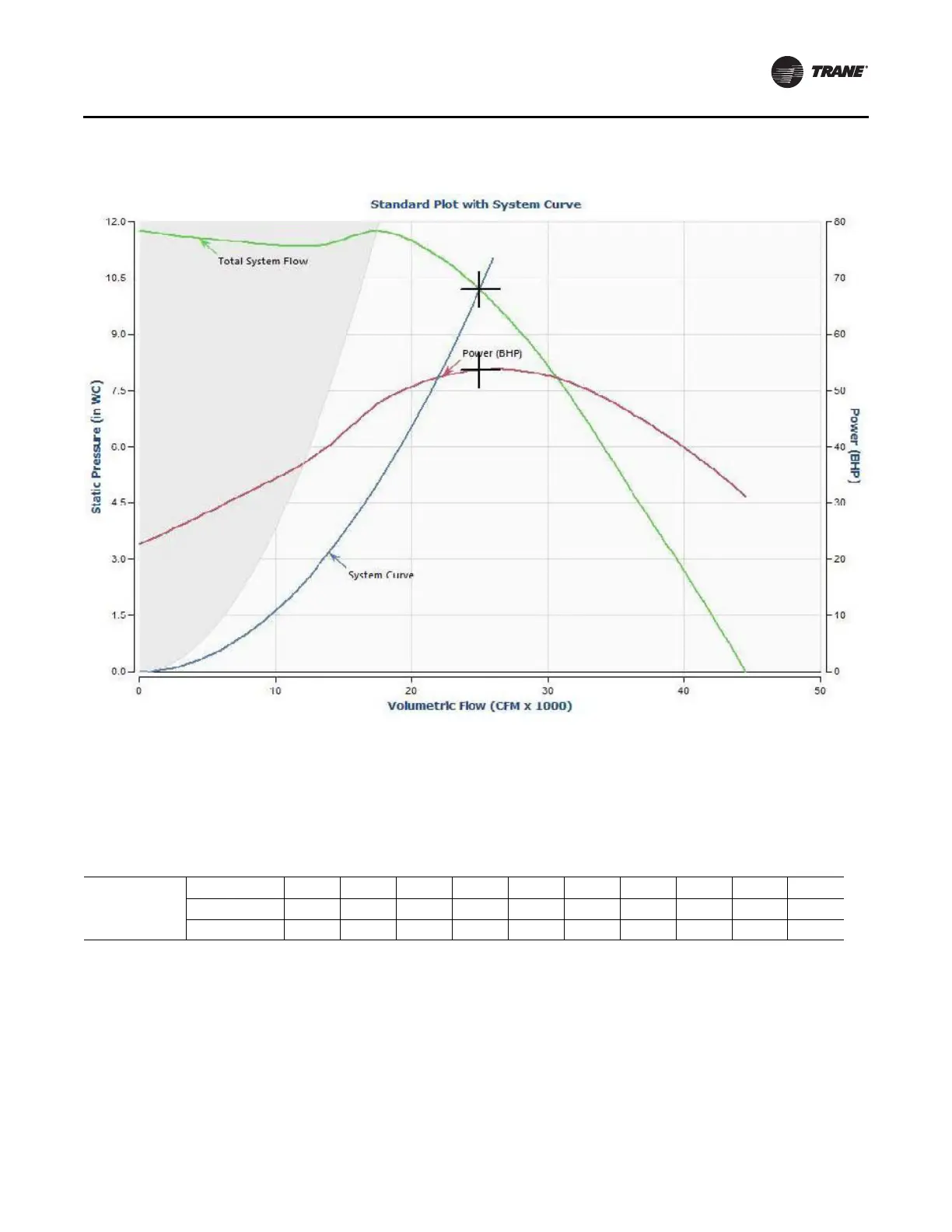

Figure 15. RSAU0062F2 Fan information
RSAU0062F2 AHU
CHS-SVX02C-EN 29
Size/Model ................................................ 245MK2/EPLFN
Volumetric Flow (CFM) ............................................ 25000
SP (i
n WC).................................................................... 10.2
Class................................................................................. III
Speed (RPM)...............................................................
2427
Max Speed............................................2806 RPM @
70°F
Power (BHP)...............................................................53.66
Outlet Vel (FPM) .........................................................2682
Density (lb/ft3) ...........................................................0.075
Adjusted for (2) fans operating in parallel
Sound Power
Octave Bands
1 2 3 4 5 6 7 8 LwA dBA
Inlet dB
91 91 107 103 89 88 87 82 103 88
Outlet dB
98 98 102 101 97 94 91 87 103 88
LwA: The overall (single value) fan sound power level in dB re. 10
-12
Watts, ‘A’ weighted
dBA: Estimated sound pressure level (re:0.0002 microbar) based on a single ducted installation at 5 ftin, using a directivity factor of 1.
