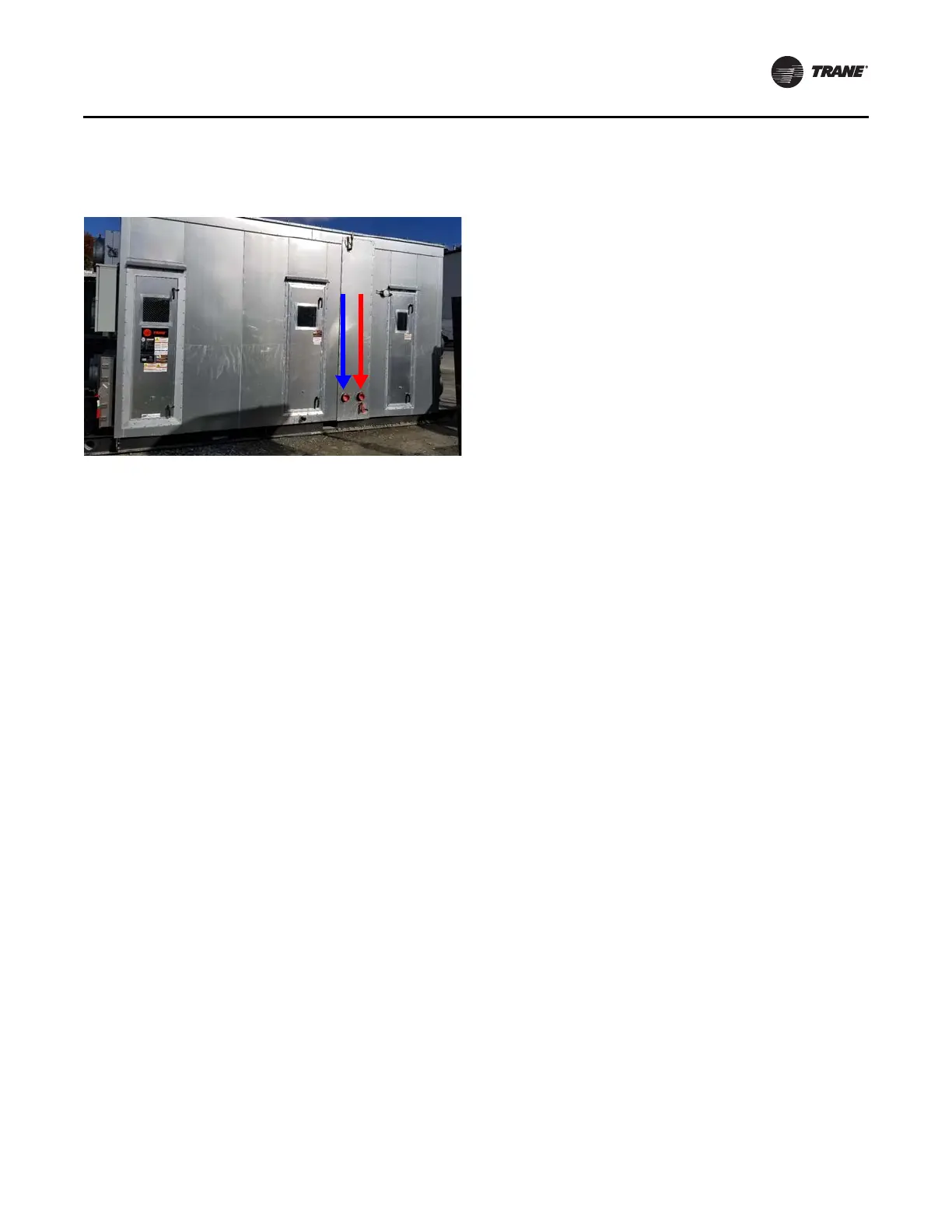

Figure 26. RSAU0062F2 Coil Connection - Chilled water
inlet shown in blue, chilled water outlet
shown in red.
Piping Connection Configuration
CHS-SVX02C-EN 35
