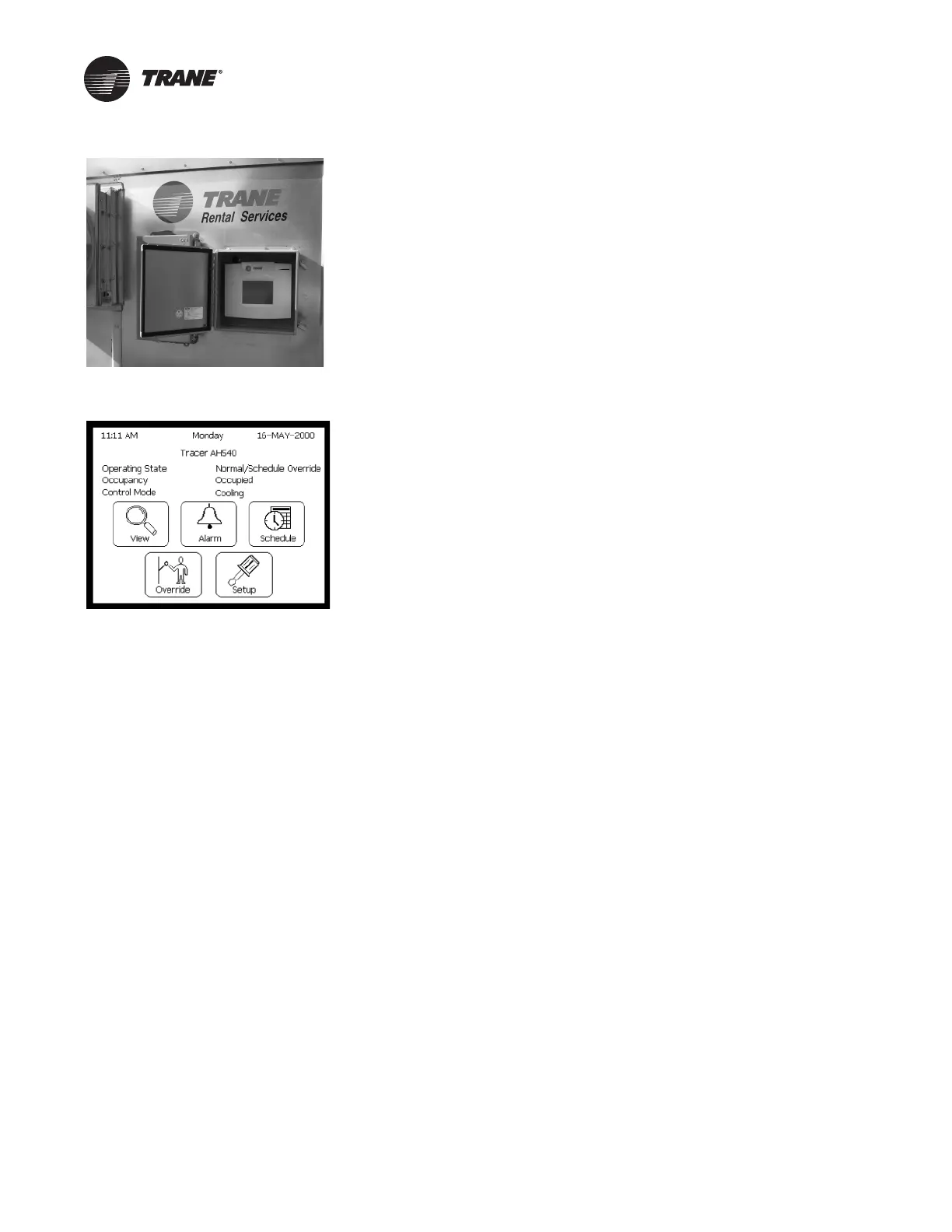

Figure 34. Unit Mounted Display
CHS-SVX02C-EN 39
Figure 35. Typical Status Screen
The operator display includes a 7-day time clock that
allows for time-of-day scheduling with two on/off times
per day and up to 20 exception schedules per year.
Both the 10,000 cfm and 25,000 cfm units can be
configur
ed to run based on a specified air flow (constant
volume CV) or be controlled by space temperature (VAV)
using the Rover service tool or the stand alone display. If
the unit is configured as CV, the unit air flow can be
specified within a certain air flow range.
If the unit is configured as VAV, the unit will be controlled
b
y the
zone set-point using the wireless zone sensor that
is provided with each unit. The wireless zone sensor can
be found inside the control cabinet and is strapped in place
for shipment. BAS-SVX04E-EN (or latest version) for
additional information on wireless zone sensors.)
