Trane TR150 - Heat Sink Fan Assembly

1Cable mounting plate
2IGBT
3Bus bar
4Capacitor

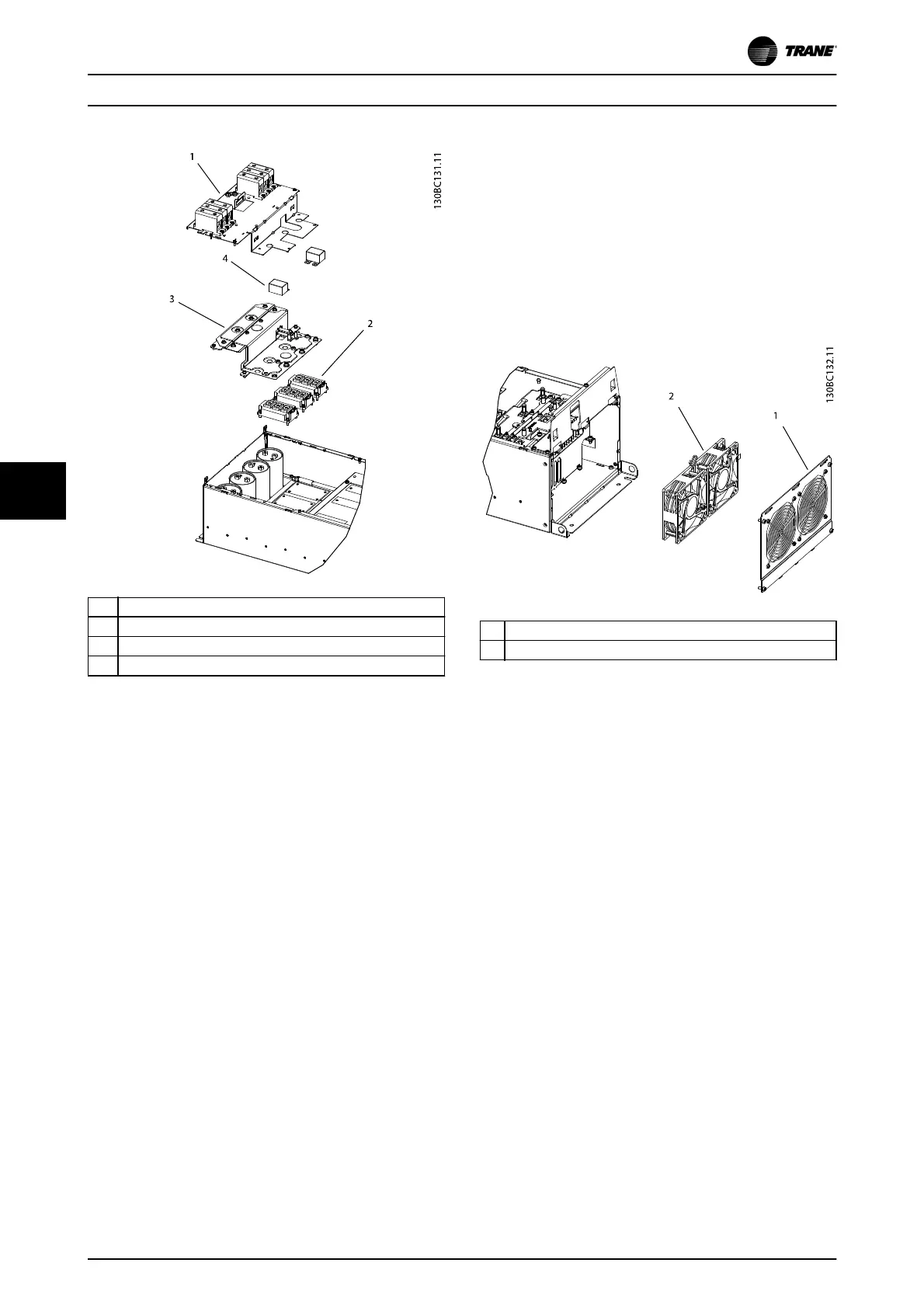

Illustration 7.22 IGBT
7.5.8 Heat Sink Fan Assembly
1. Remove the 4 screws (T20) from the fan cover
plate.
2. Press the fan cover plate outwards using a
screwdriver.
3. Remove the fans and the fan cover plate.
Reinstall in the reverse order.
1Fan cover
2 Fan assembly
Illustration 7.23 Heat Sink Fan Assembly
H-Frame Size Disassembly a...
70 02/2017 All rights reserved. BAS-SVM04B-EN
