Trane TR150 - Capacitor Bank; DC Coil

8.3.12 Capacitor Bank
1. Remove 4 screws (T20) from each of the
capacitors.
2. Remove the capacitors.
Reinstall in the reverse order.
1Capacitors

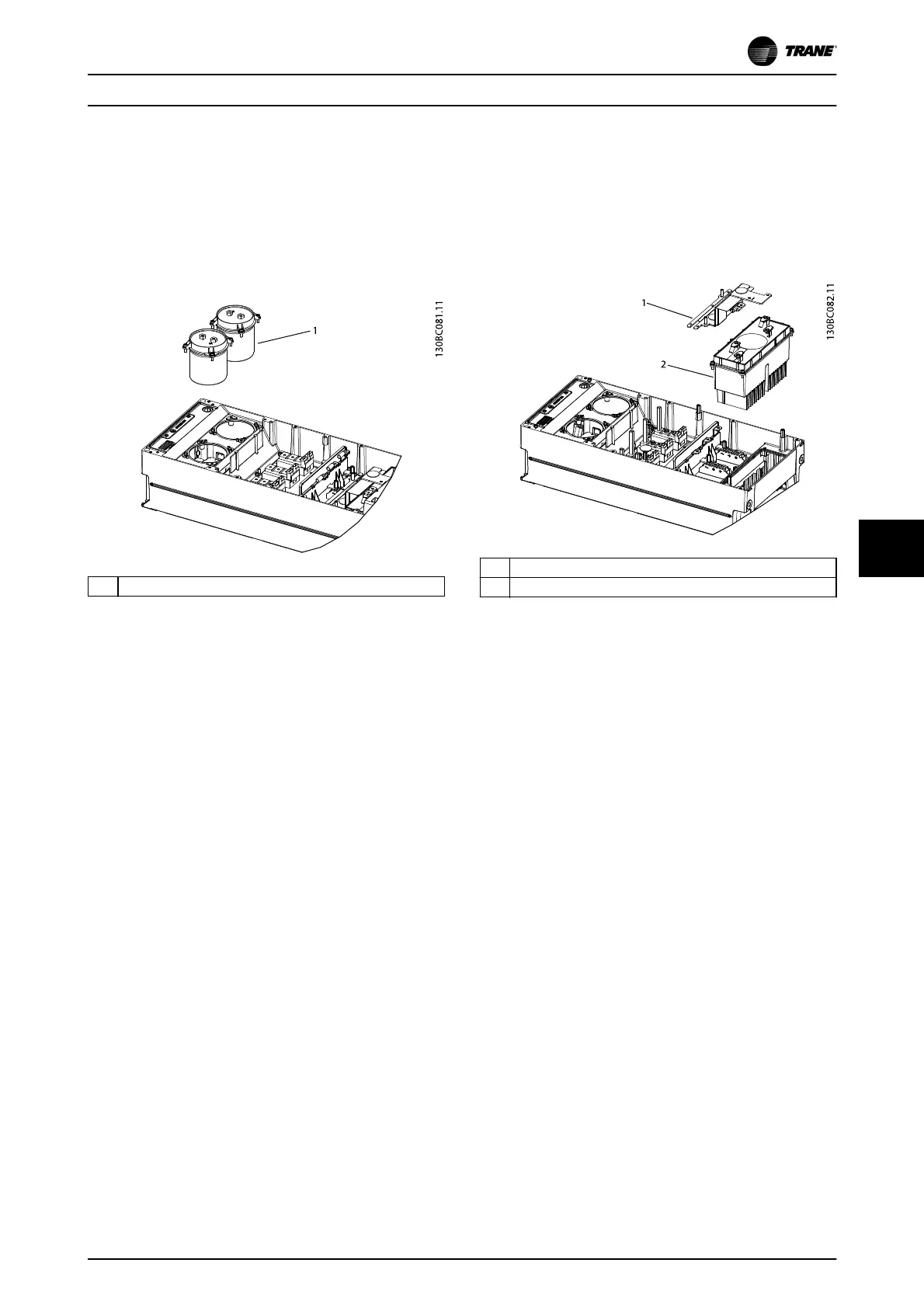

Illustration 8.20 Capacitors
8.3.13 DC Coil
1. Remove 5 screws (T20) on the potted coil.
2. Remove the DC coil.
Reinstall in the reverse order.
1Bus bar
2DC coil
Illustration 8.21 DC Coil
