Introduction
This instruction describes the General Purpose I/O option MCB 101 for use in the TR200 expanding the number
of input/output in the frequency converter.
The MCB 101 option includes 3 digital inputs, 2 analog inputs, 2 digital outputs and 1 analog output.
SW firmware version to be installed in the drive control card must be version 3.00 or later versions for series,
and version 1.1x for TR200 series. Check par.15-43
Software Version for firmware version.
Code Numbers To Be Used At Ordering The Complete Kit For Upgrades
Standard version code no. 130B1125.
Coated version code no. 103B1212.

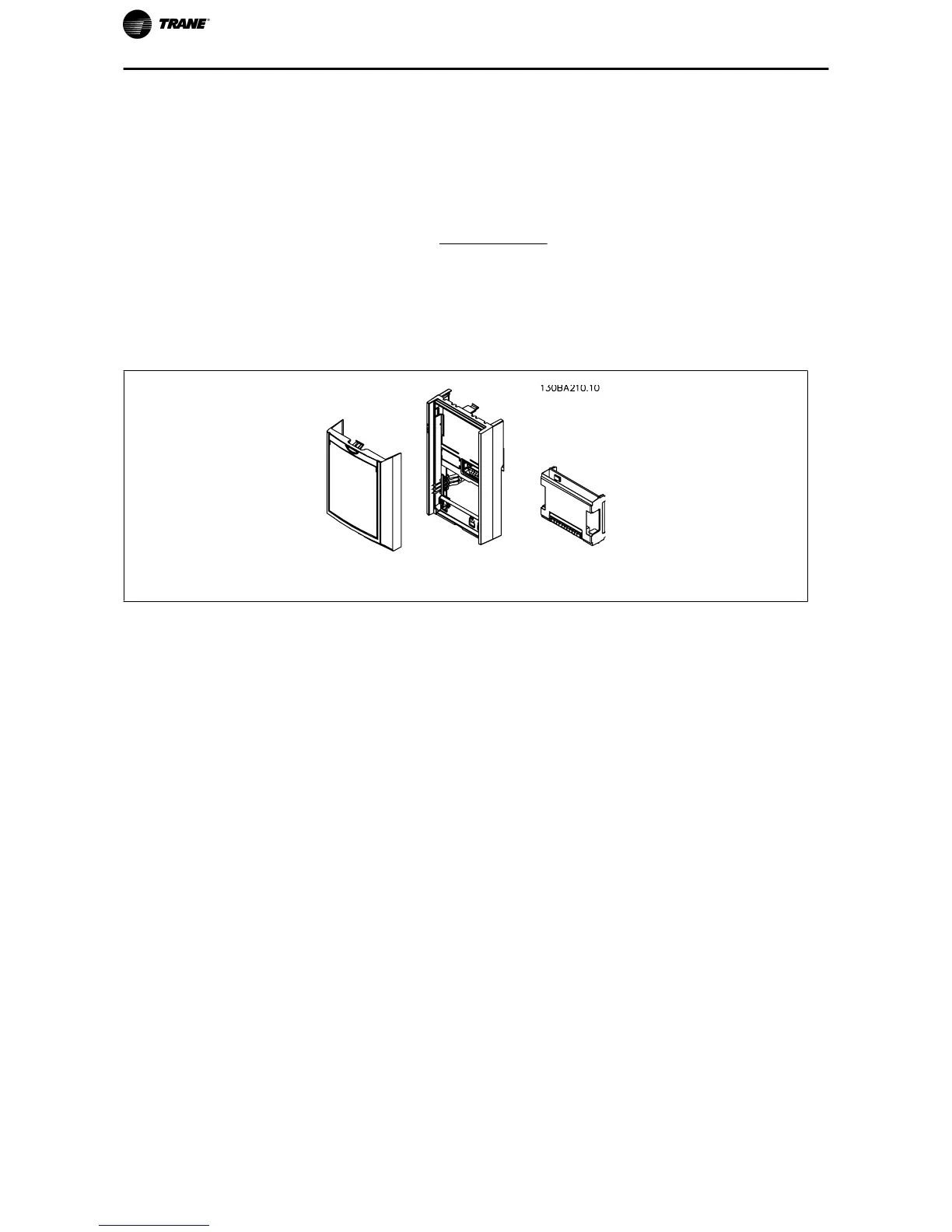

Illustration 1. 1: Parts for coated/non-coated code nos.
2 TR200 Series VFD General Purpose I/O Option Module MCB 101 Instruction
