8 CG-SVU01B-E4
TRACER CH532 offers customer the
possibility to use inputs or outputs
in order to:
- use an external water setpoint
reset using an analog input
(refer to figure 3)
- use an auxiliary setpoint
- connect a remote on/off of the unit
or a circuit
- reset faults
- connect a remote Cooling/Heating
switch
- return a circuit fault
Note: External water setpoint
Based on a external signal input, it
will be possible to offset the active
setpoint from 0°C to 20°C. This
function can be used in conjunction
with the automatic setpoint reset
function.

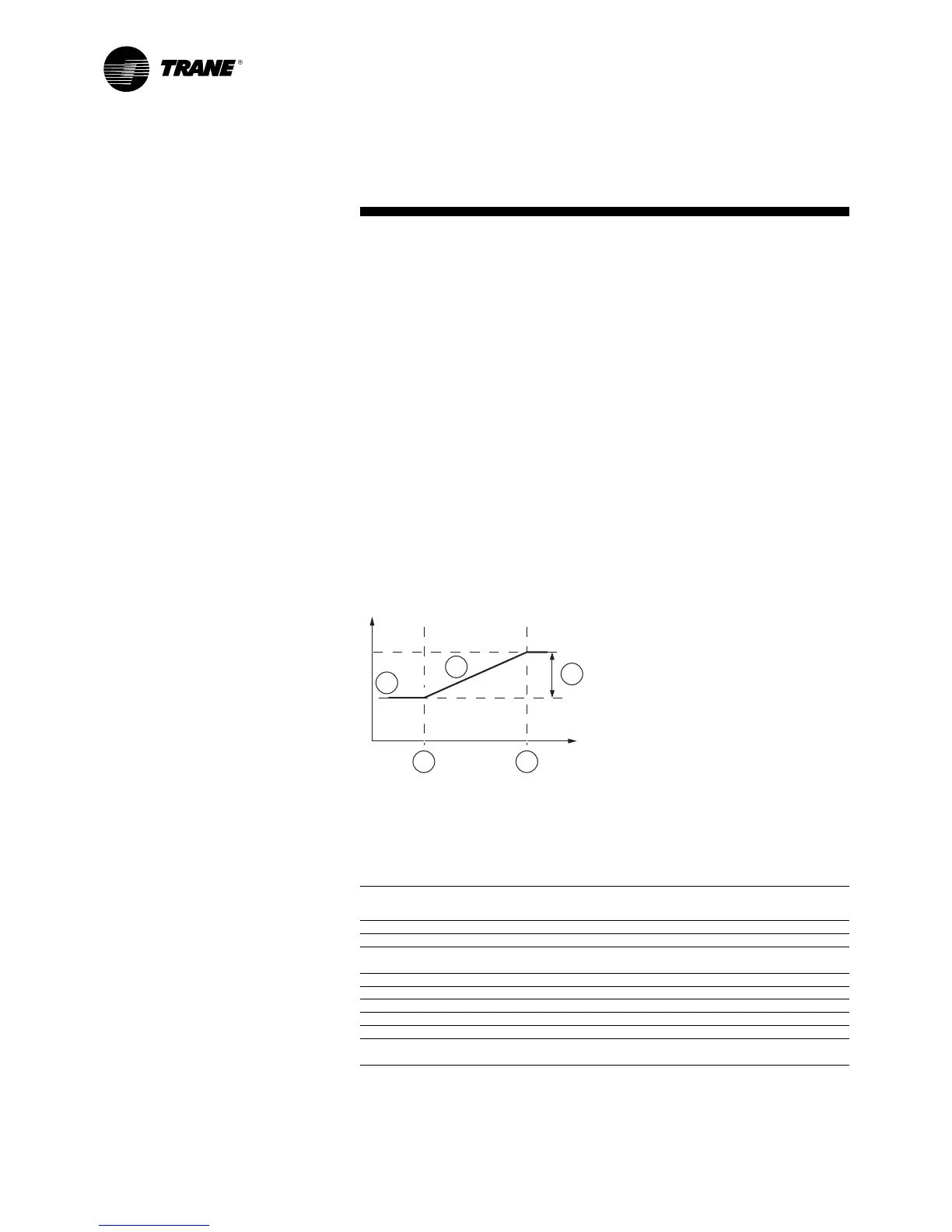

Figure 3
1. Leaving water temperature setpoint
2. Minimum value
3. Maximum value
4. Reset = 20°C
5. Active setpoint
Table 3: Customer Inputs and output summary list
TRACER CH532 Medium TRACER CH532 Large
Single circuit units Dual circuit units
AI External water setpoint reset (option) B8: 0..10V-0..20mA
DI Auxiliary setpoint On/Off ID8: 24Vac
DI Circuit 1 On/Off (or Unit On/Off
for single circuit units) ID13H: 230Vac
DI Circuit 2 On/Off - ID16H: 230Vac
DI Faults external reset ID6: 24Vac
DI Cooling/Heating mode switch ID7: 24Vac
DO Circuit 1 fault NO9: NO-230Vac
DO Circuit 2 fault - NO11: NO-230Vac
DO Unit status or additional
heating demand NO10: NO-230Vac
Legend:
AI: Analog Input
DI: Digital Input
DO: Digital Output
