CG-SVU007C-GB
17
11UNT-PRC002-GB
Sound power levels
Discharge
Measurement conditions:
Measurements taken in a room adjacent to the room containing the FWD, at the outlet of the rectangular duct (1.5 m
long) fixed to its discharge opening.
Fan Power level in dB(A), per Hz frequency band Overall power
Unit speed 125 250 500 1000 2000 4000 8000 dB(A)
1 55 50 42 37 37 31 30 46
FWD 08 2 57 54 47 40 30 38 40 50
3 58 57 50 42 32 40 43 53
1 57 51 45 42 34 33 28 48
FWD 10 2 58 54 48 45 38 39 35 51
3 60 58 50 48 40 42 39 54
1 57 51 45 42 34 33 28 48
FWD 12 2 58 54 48 45 38 39 35 51
3 60 58 50 48 40 42 39 54
1 56 62 50 48 39 38 36 56
FWD 14 2 61 66 55 53 47 46 45 60
3 63 69 58 56 50 50 49 63
1 57 63 51 49 40 39 37 57
FWD 20 2 61 66 55 53 47 46 45 60
3 63 69 58 56 50 50 49 63
Intake
Measurement conditions:
Measurements taken at the horizontal air intake.
Fan Power level in dB(A), per Hz frequency band Overall power
Unit speed 125 250 500 1000 2000 4000 8000 dB(A)
1 56 55 55 53 46 45 42 57
FWD 08 2 63 62 60 60 53 53 53 64
3 66 65 63 62 56 55 57 67
1 62 58 55 58 51 48 44 61
FWD 10 2 66 63 60 62 56 55 52 66
3 70 67 63 65 59 59 57 69
1 62 58 55 58 51 48 44 61
FWD 12 2 66 63 60 62 56 55 52 66
3 70 67 63 65 59 59 57 69
1 66 65 65 65 57 50 46 68
FWD 14 2 73 72 69 71 64 59 57 74
3 78 76 73 75 69 64 63 78
1 68 72 64 64 56 52 50 69
FWD 20 2 76 76 68 71 65 61 61 75
3 78 79 71 74 69 66 66 78

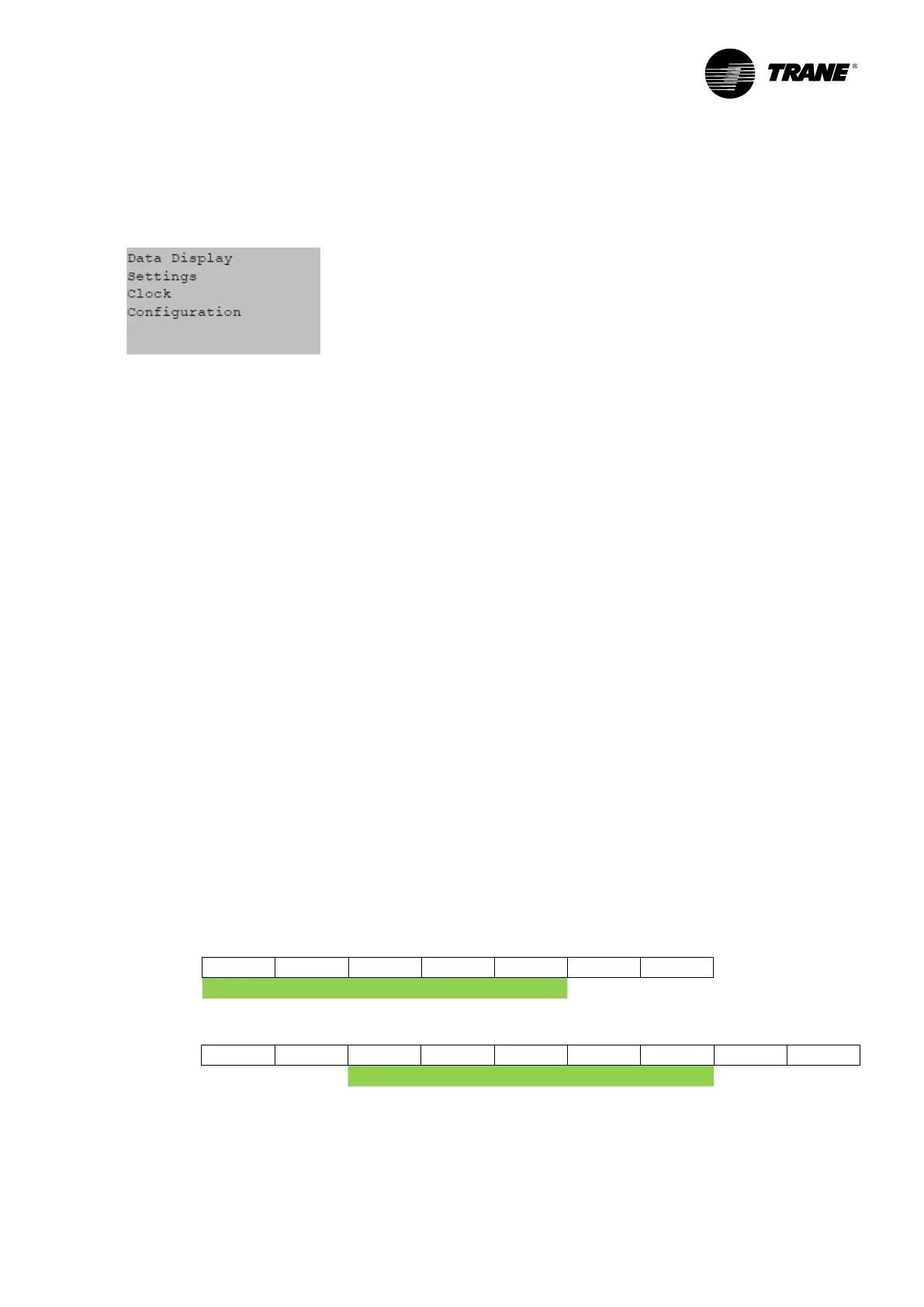

Access to sub-menus
Access using the Prg” key
Data display sub-menu
Settings sub-menu
Daily/weekly program sub-menu
Unit configuration sub-menu
(accessible to Trane technicians only, not accessible to end users)
The sub-menu will be selected using the Up and Down keys and selected using the Enter button.
Data display menu
Show status and values of:
Temperature sensors
Pressures sensors
Compressors
Fans
Pump package
Expansion valve
Auxiliary heat
Operating modes
Setpoints
Setting menu
Show status and allows modification of:
Local and auxiliary setpoints
Setpoint offset
Operating modes
Circuit manual lockout
Clock menu
Show status and allows modification of:
Actual date and time adjustment
Scheduling
Figure 6 – Scheduling
Monday Tuesday Wednesday Thursday Friday Saturday Sunday
Weekly schedule Start ------------ ------------ ------------ Stop
Unit Status Unit ON Unit ON Unit ON Unit ON Unit ON Unit OFF Unit OFF
00:00 03:00 06:00 09:00 12:00 15:00 18:00 21:00 00:00
Daily Schedule Start ------------ ------------ ------------ Stop
Unit Status Unit OFF Unit OFF Unit ON Unit ON Unit ON Unit ON Unit ON Unit OFF Unit OFF
Example of scheduling where unit is running from Monday to Friday in a time frame from 6:00 to 18:00
User interface display
